Parking Brake Indicator Switch Replacement for Buick LeSabre 2000

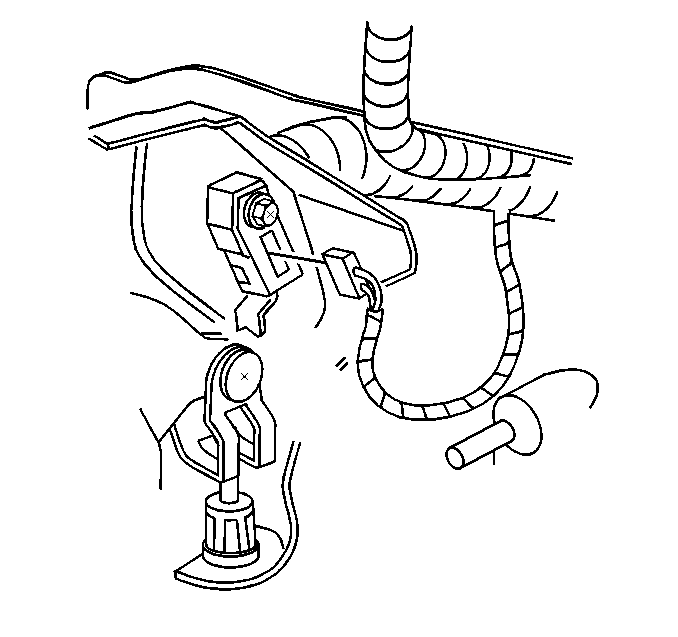

1. Remove the left sound insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side in Instrument Panel, Gauges and Console.
2. Disconnect the electrical connector from the switch.
3. Remove the switch retaining bolt.
4. Remove the switch.

1. Install the switch to the parking brake lever assembly. Align pin to locator.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

2. Install the switch retaining bolt.

Tighten
Tighten the bolt to 1.9 N·m (17 lb in).

3. Connect the electrical connector to the switch.
4. Install the left sound insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side in Instrument Panel, Gauges and Console.
