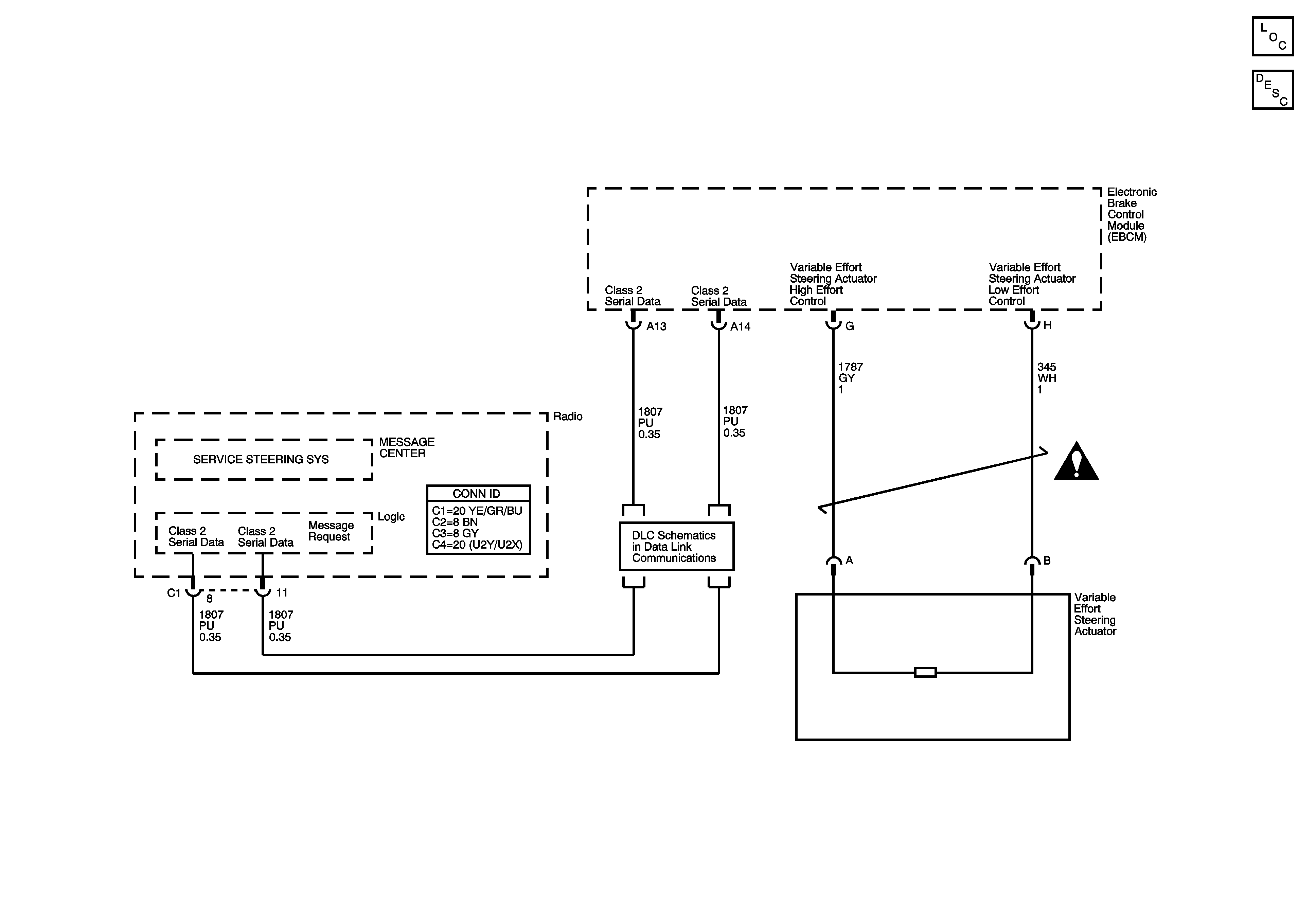

Steering Assist Schematics for Cadillac CTS 2004


Object Number: 1316837 Size: FS
Master Electrical Component List
Variable Effort Steering System Description and Operation
Class 2 Serial Data Bus - LHD - 1 of 2
Steering Assist Schematic Icons
