Exhaust Manifold Removal - Left Side for Cadillac CTS 2009

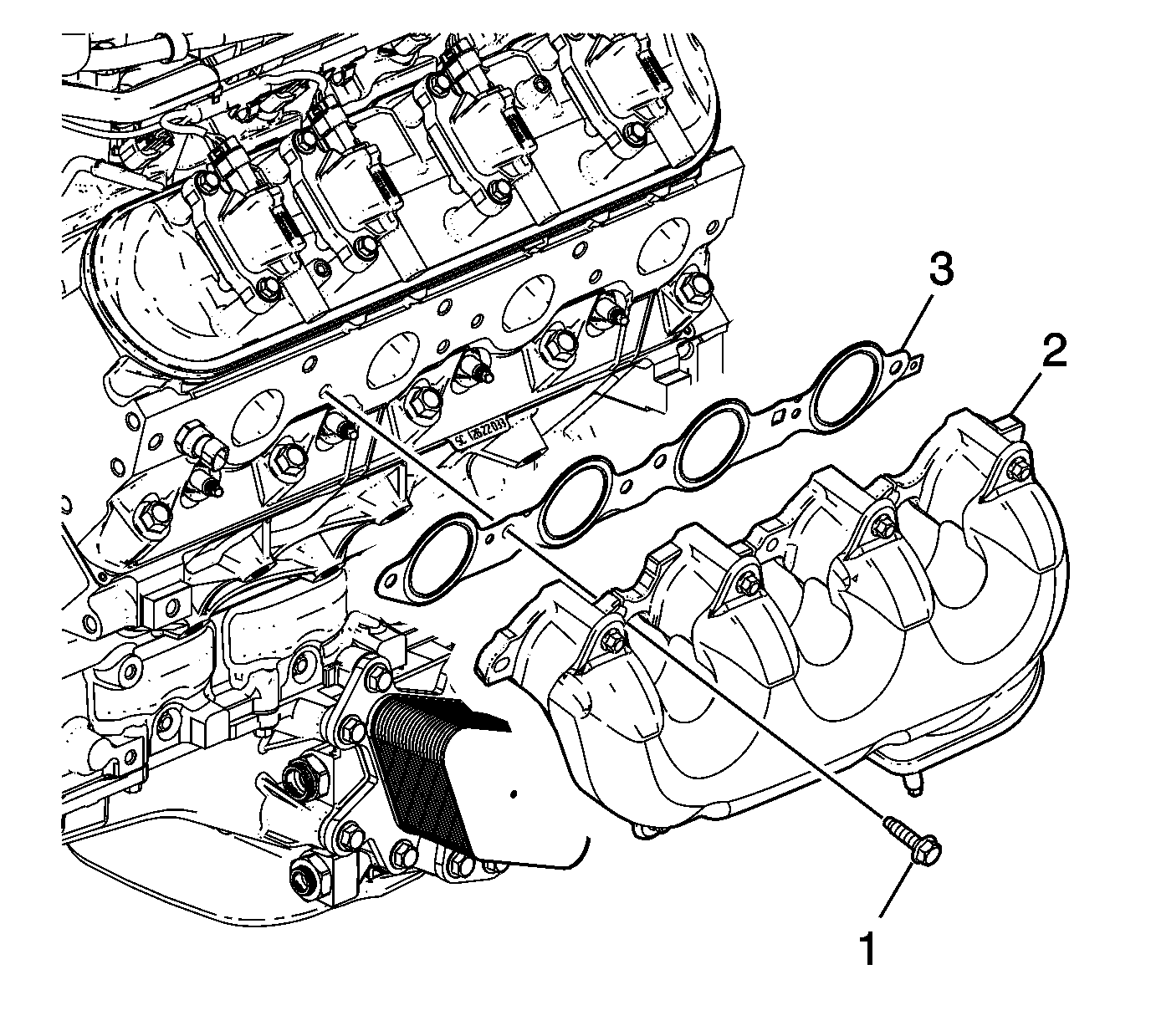

    Object Number: 2156331 Size: SH
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold (2), bolts (1), and gasket (3).
  3. Discard the gasket.

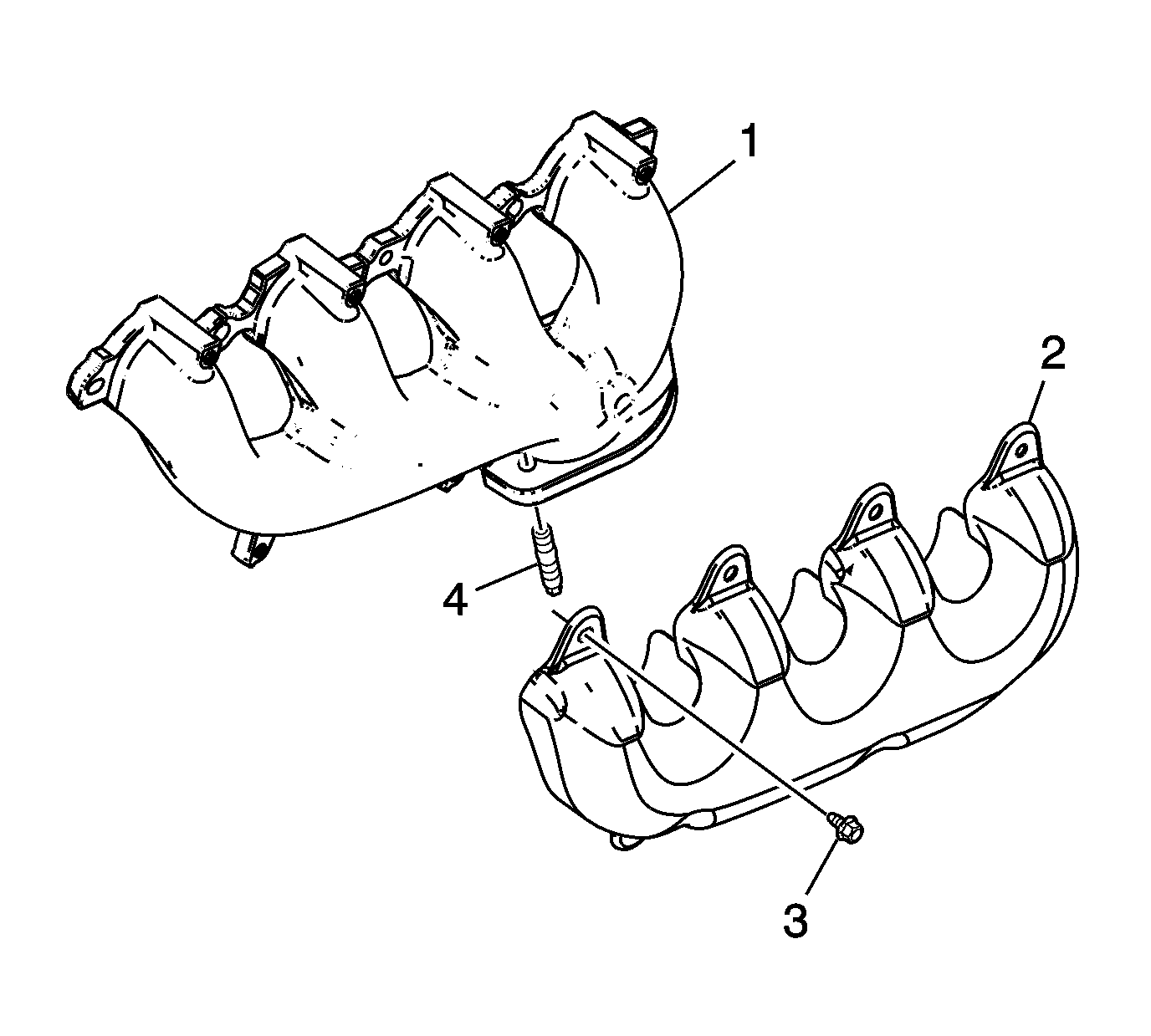

    4. Object Number: 2156337 Size: SH
  4. Remove the heat shield (2) and bolts (3) from the manifold (1), as required.
  5. Remove the studs (4), as required.
