Rear Output Shaft Rear Bearing Replacement for Cadillac CTS 2009

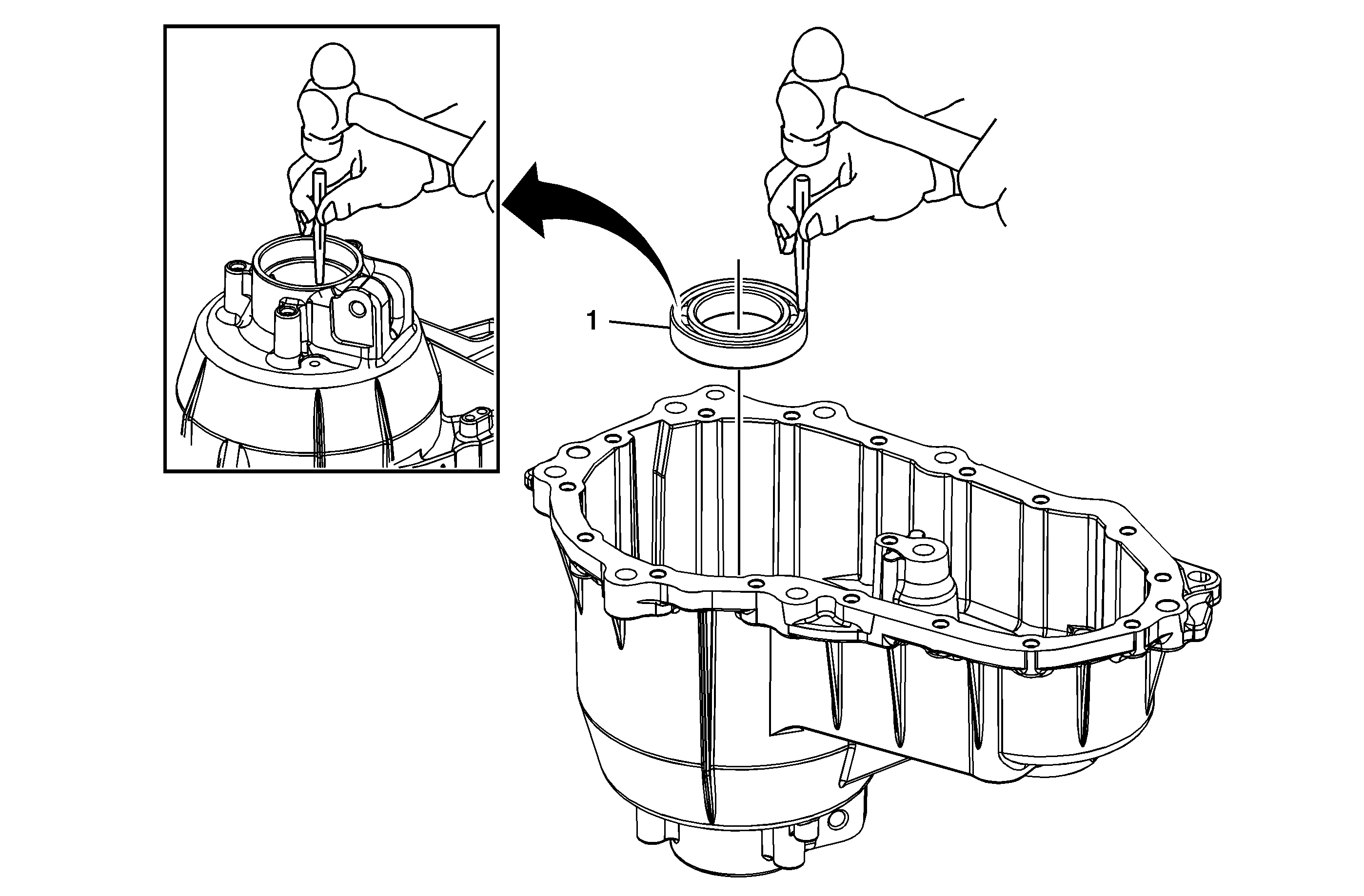

Object Number: 1911502 Size: MF

Callout

Component Name

1

Transfer Case Rear Output Shaft Rear Bearing

Tip

    • Remove the bearing only if it is to be replaced.
    • Use a hammer and a suitable punch to remove the bearing.
