For 1990-2009 cars only
Cruise Control Schematics for Cadillac Catera 1998
| Figure 1: |

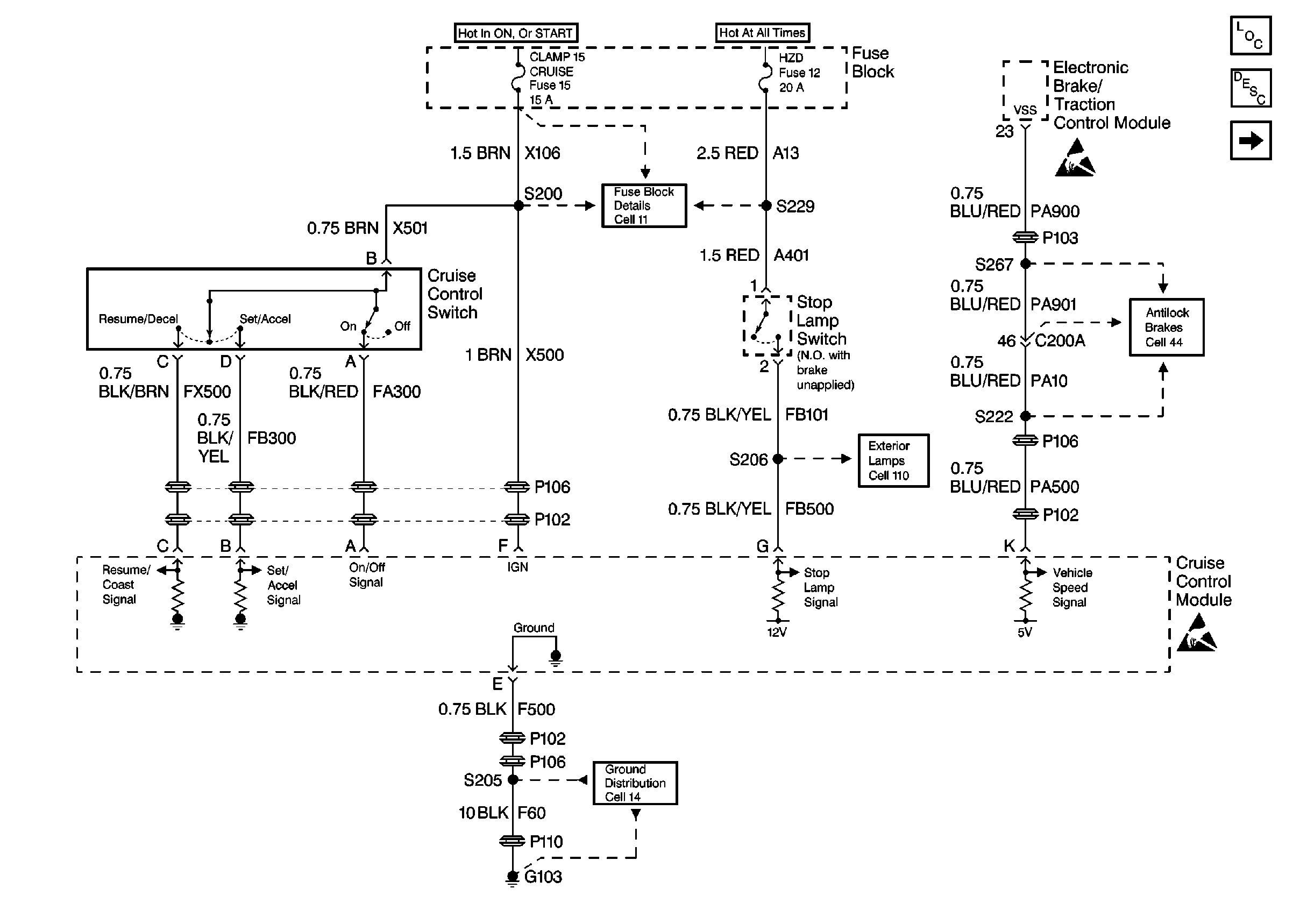

Cell 34 -- Cruise Control Module and Switch
|
| Figure 2: |

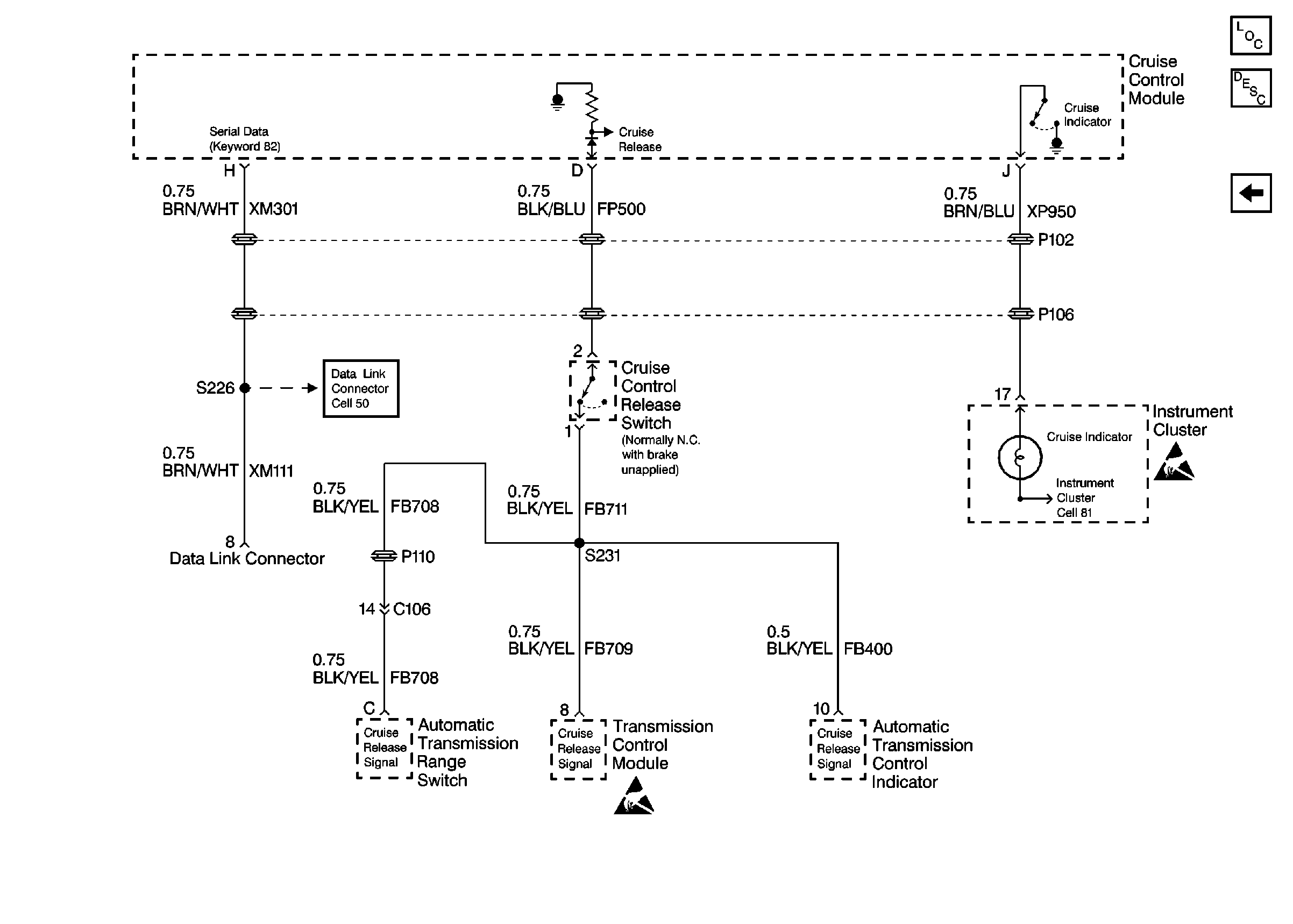

Cell 34 -- Cruise Control Release Switch and DLC
|
| Figure 1: |
Cell 34 -- Cruise Control Module and Switch
|
| Figure 2: |
Cell 34 -- Cruise Control Release Switch and DLC
|
