Vehicle Speed Sensor and Transmission Fluid Cooler Pipe Fitting Removal for Cadillac DeVille 2005


    Object Number: 11835 Size: SH
  1. Remove the 10 mm bolt (131) from the output shaft speed sensor.
  2. Remove the output shaft speed sensor and seal (130).

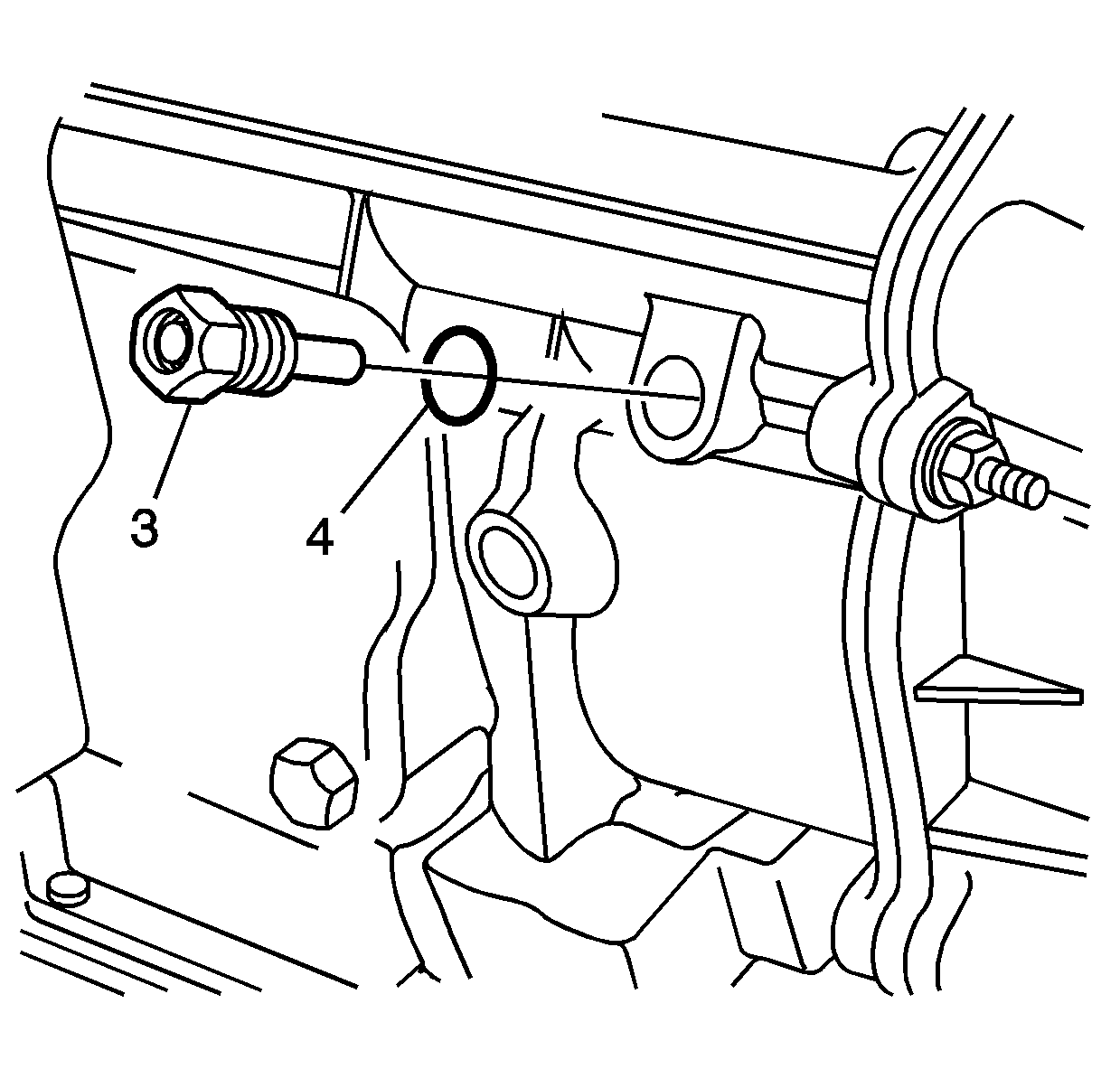

    3. Object Number: 1489486 Size: SH
  3. Remove the 19 mm cooler line fitting (3) and seal (4).
