For 1990-2009 cars only
Starting and Charging Schematics for Cadillac Eldorado 2000

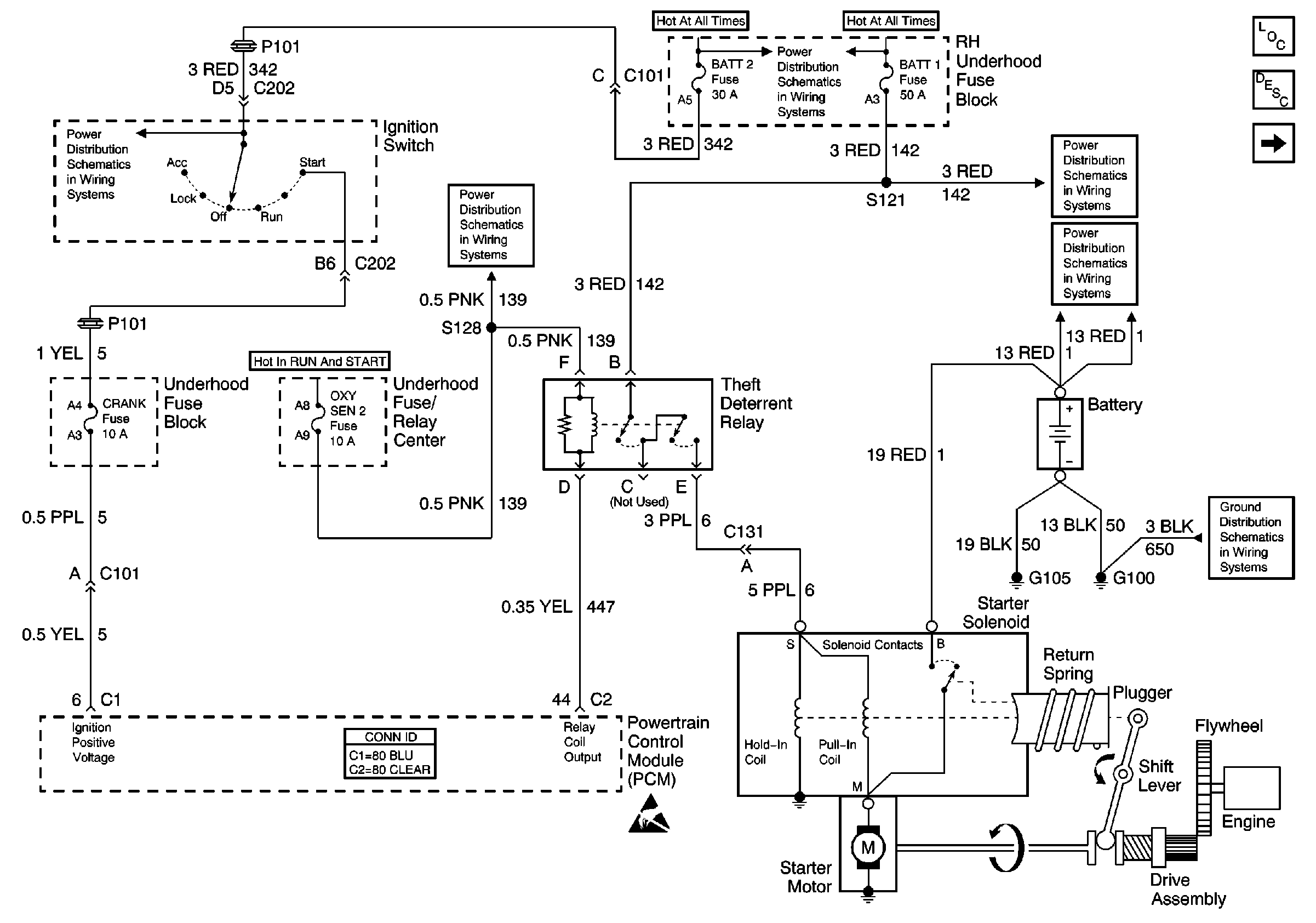

| Figure 1: |
Starter Solenoid Controls
|
| Figure 2: |
Generator Controls
|
| Figure 1: |
Starter Solenoid Controls
|
| Figure 2: |
Generator Controls
|
