Radio Rear Speaker Replacement for Cadillac SRX 2004

Radio Rear Speaker Replacement Outer

1. Remove the body side trim panel. Refer to Body Side Rear Trim Panel Replacement .

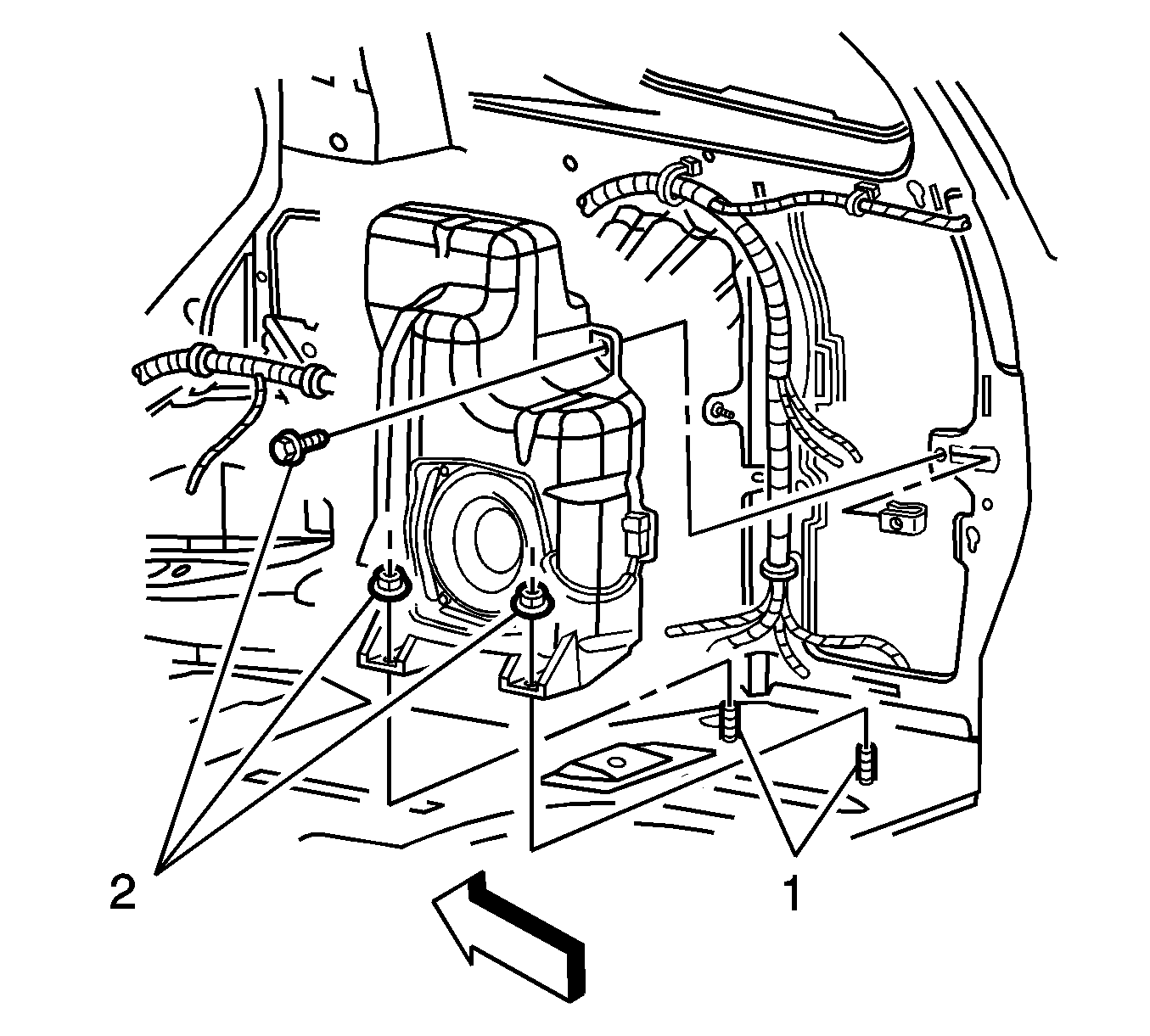

2. Remove the fasteners (2) securing the rear speaker.
3. Disconnect the electrical connector.
4. Remove the speaker.

1. Locate the speaker onto the studs (1) on the vehicle floor.
2. Connect the electrical connector.

Notice: Refer to Fastener Notice in the Preface section.

3. Install the fasteners (2) securing the speaker.

Tighten
Tighten the fasteners to 9 N·m (80 lb in).

4. Install the body side trim panel. Refer to Body Side Rear Trim Panel Replacement .
