Sunroof Schematics for Cadillac STS 2006

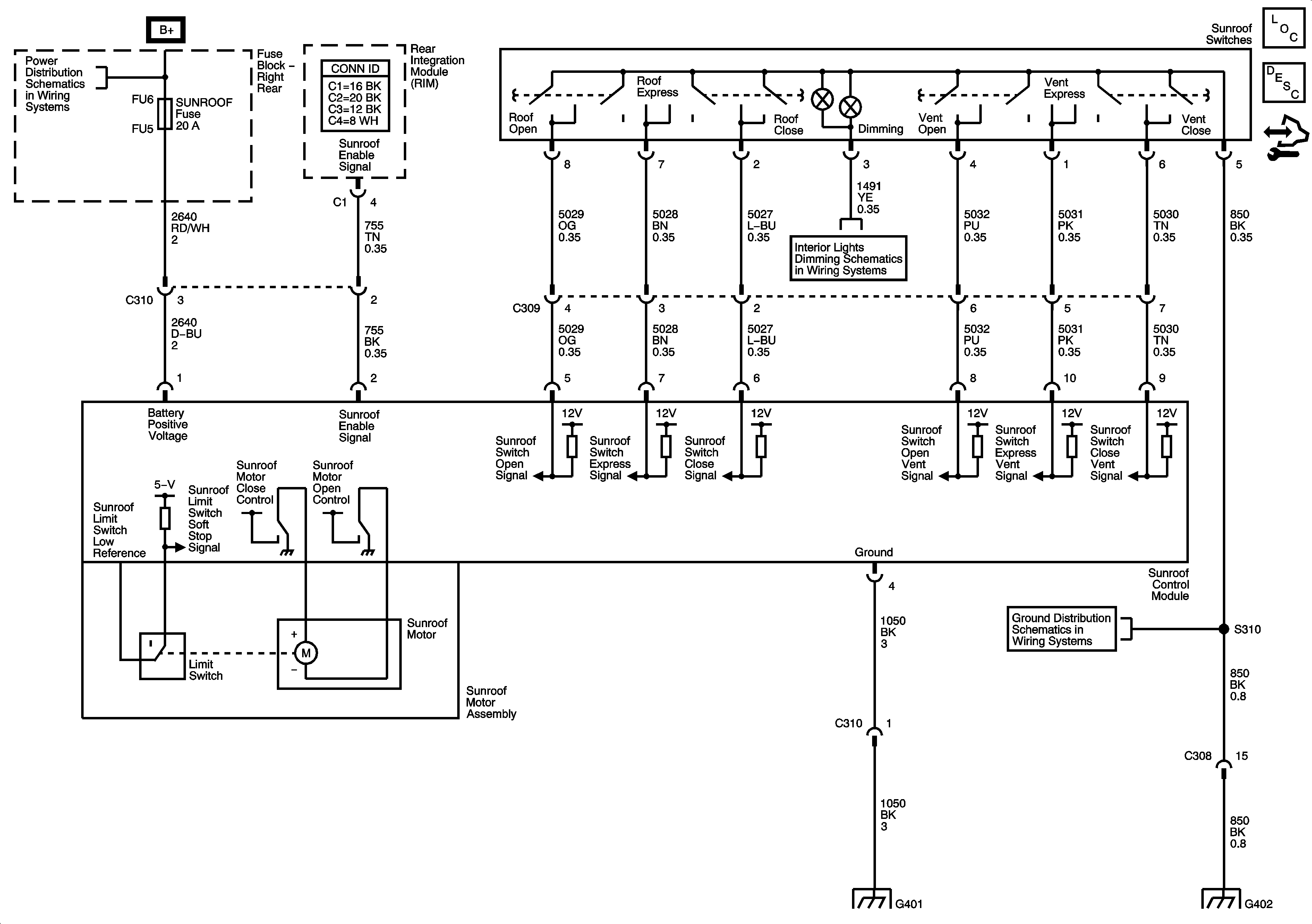

Power Sunroof

Object Number: 1618834 Size: FS

Master Electrical Component List
Sunroof Description and Operation
Control Module References
Fuse Block Right Rear Bussing
Dimming Lamps (2 of 3)
G401 (2 of 2)
G402 (1 of 2)
G402 (1 of 2)
