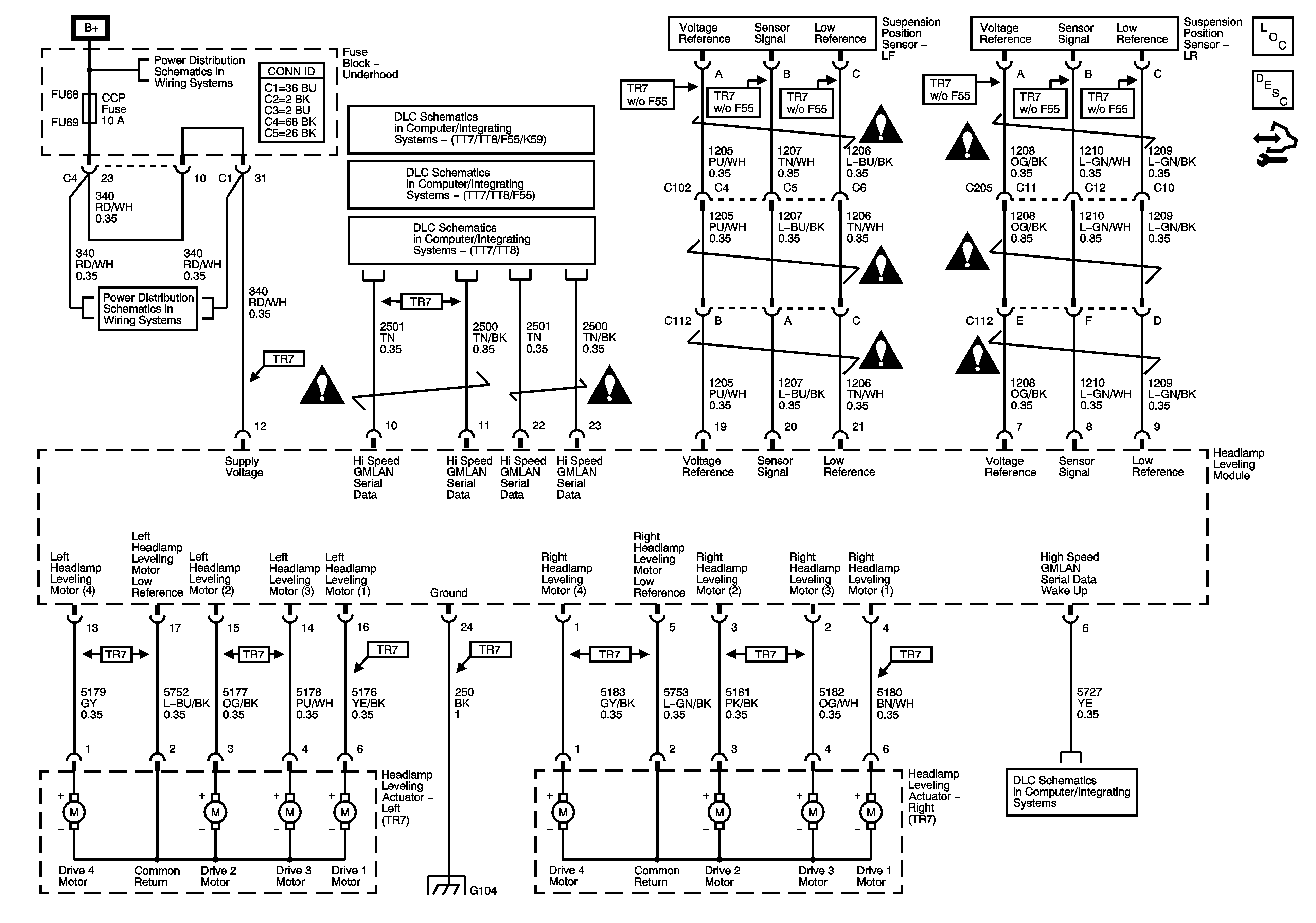

Headlight Leveling Schematics for Cadillac STS 2006
Headlamp Power, Ground, DLC and Indicator
Master Electrical Component List
Exterior Lighting Systems Description and Operation
Control Module References
Fuse Block Underhood Bussing
GMLAN High Speed - Export w/ TT7/TT8, F55, K59
GMLAN High Speed - Export w/ TT7/TT8, F55
GMLAN High Speed - Export w/ TT7/TT8
Fuse Block - Underhood Fuses/Relays: IPM/ALDL, Auto Headlamp Dimming, CCP, ECM/TCM, WPR MOD, WPR SW/VICS and Rain Sensor/HDLP Wash Fuses, Accessory Relay
G104 (2 of 2)
GMLAN High Speed Serial Data Wake-Up
