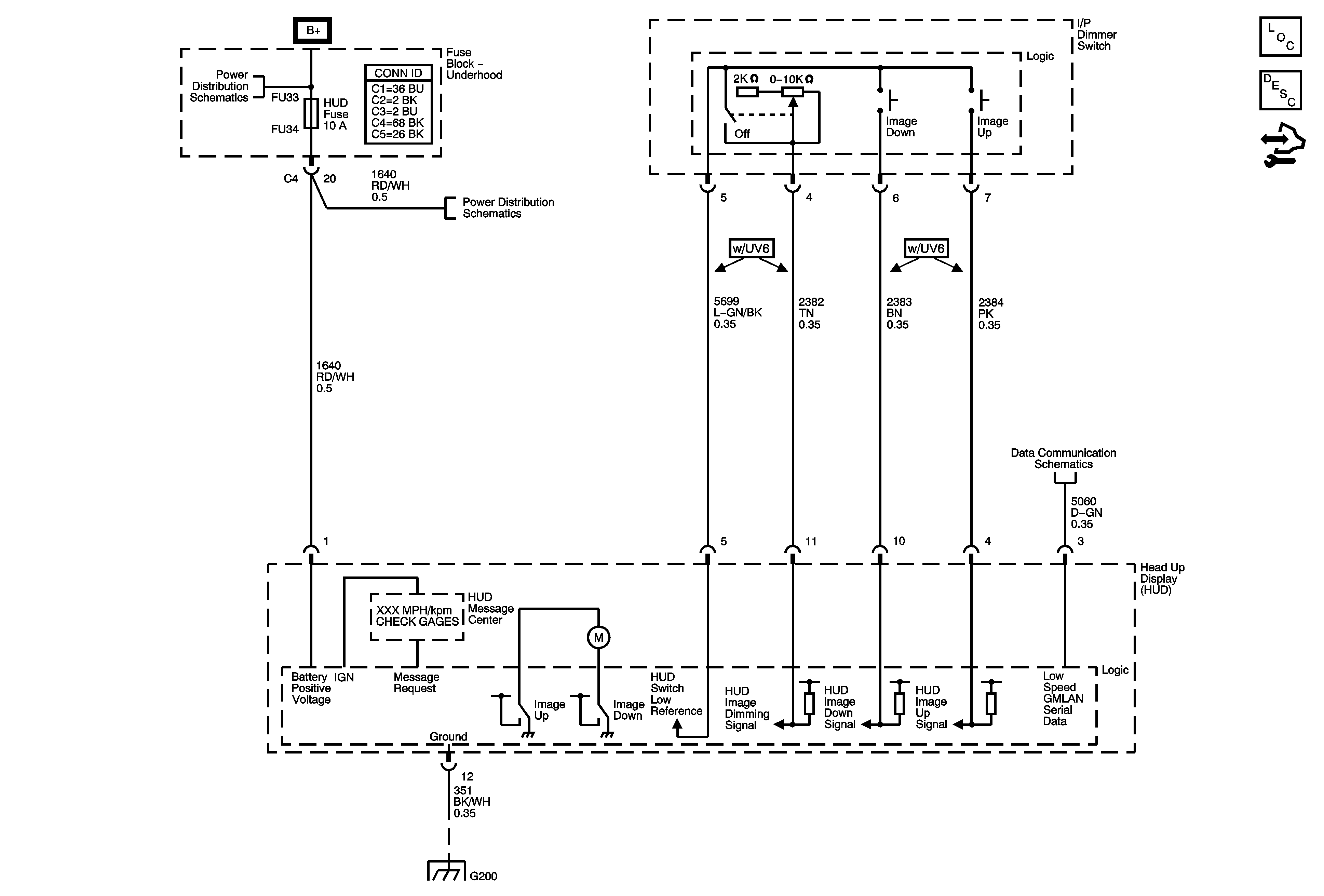

Head Up Display Schematics for Cadillac STS 2007
Master Electrical Component List
Head Up Display (HUD) Description and Operation
Control Module References
Fuse Block Underhood Wiring Bussing
Fuse Block - Underhood: HUD, Front Blower, Comp Clutch, Fog Lamp, Horn Fuses, Hdlp Asher Circuit Breaker, Main Relay
G200 (1 of 2)
GM LAN - Low Speed 2 of 2
