Sunroof Schematics for Cadillac Seville 1999

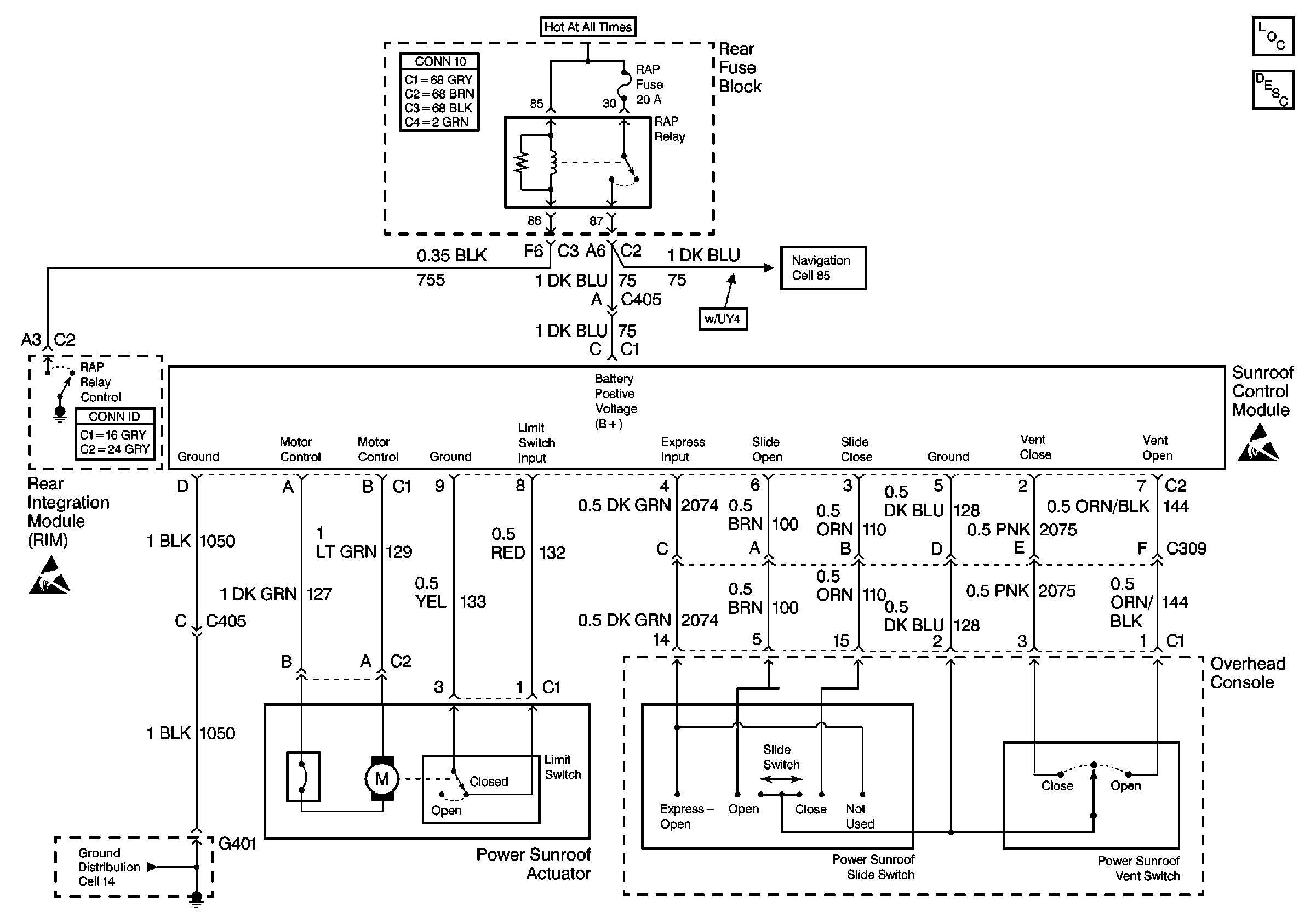

Cell 122: Power, Grounds, and Components

Object Number: 374354 Size: FS

Power Roof Systems Components
Power Sunroof Circuit Description
Instrument Cluster: Analog Schematics
Ground Distribution Schematics
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
