Windshield Wiper Blade Replacement for Cadillac Seville 2004

Windshield wiper blades should be inspected each time maintenance is performed. See Wiper Blade Check under Scheduled Maintenance for more information.

It is a good idea to clean or replace the wiper blade assembly on a regular basis or when worn. For proper windshield wiper blade length and type, see Maintenance Replacement Parts .

To replace the wiper blade assembly do the following:

  1. Lift the wiper up from the windshield and set into the vertically-locked position.

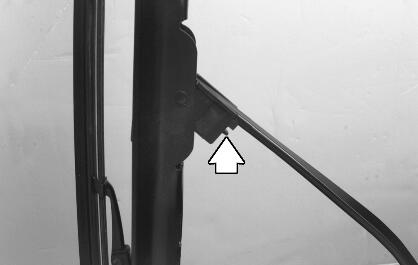

  2. Object Number: 810784  Size: B3
  3. Press the tab that holds the wiper blade to the arm.
  4. Slide the blade down and off the arm.
  5. Slide in the new blade and snap into place.
