Makes 🢒 Cadillac 🢒 2009 🢒 XLR 🢒 Seat Belt Schematics

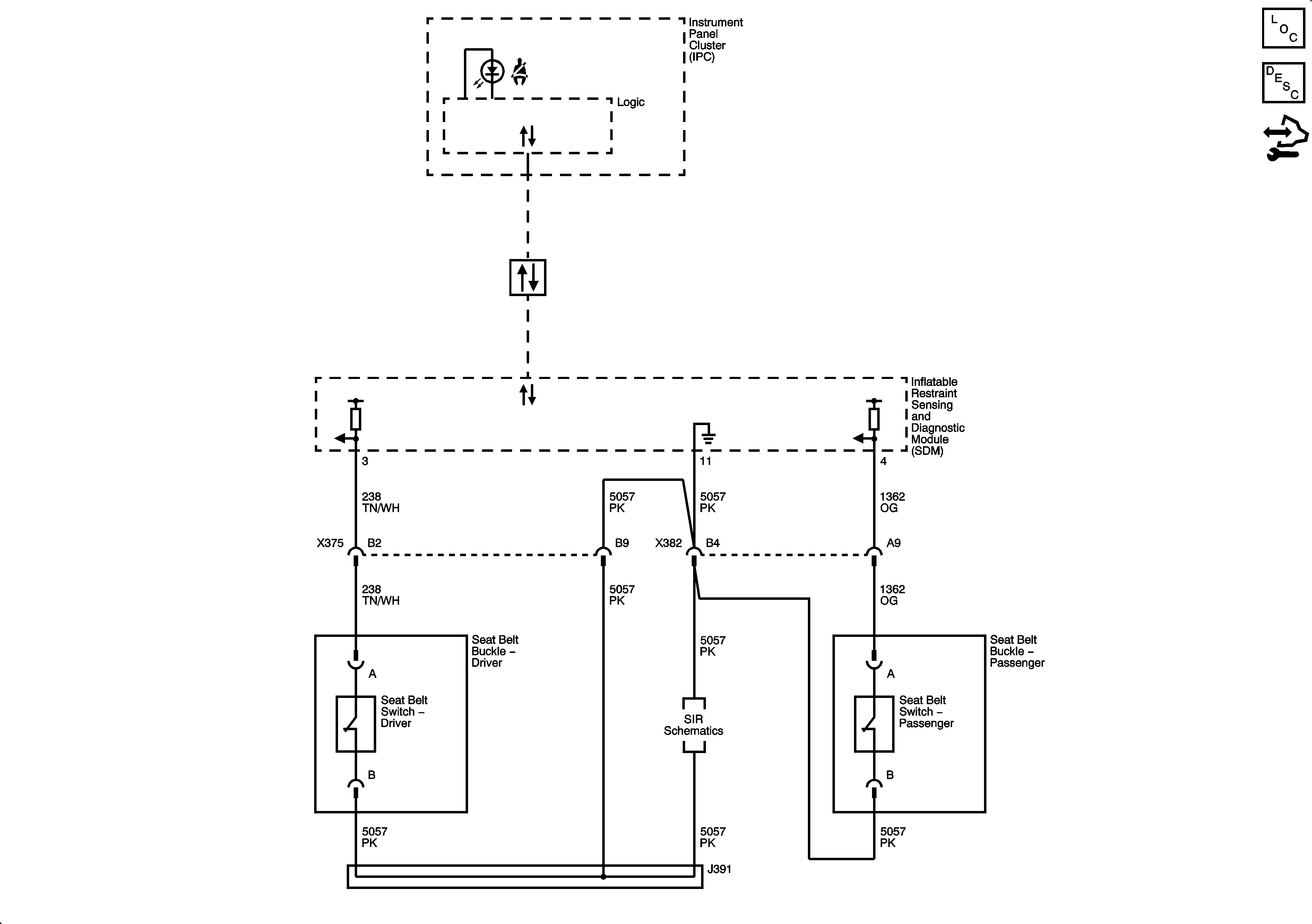

Seat Belt Schematics for Cadillac XLR 2009

Object Number: 2075693 Size: FS

Master Electrical Component List
Seat Belt System Description and Operation
Control Module References
Power, Ground, and Class 2
Power, Ground, DLC, Indicators, Sensors, and References
