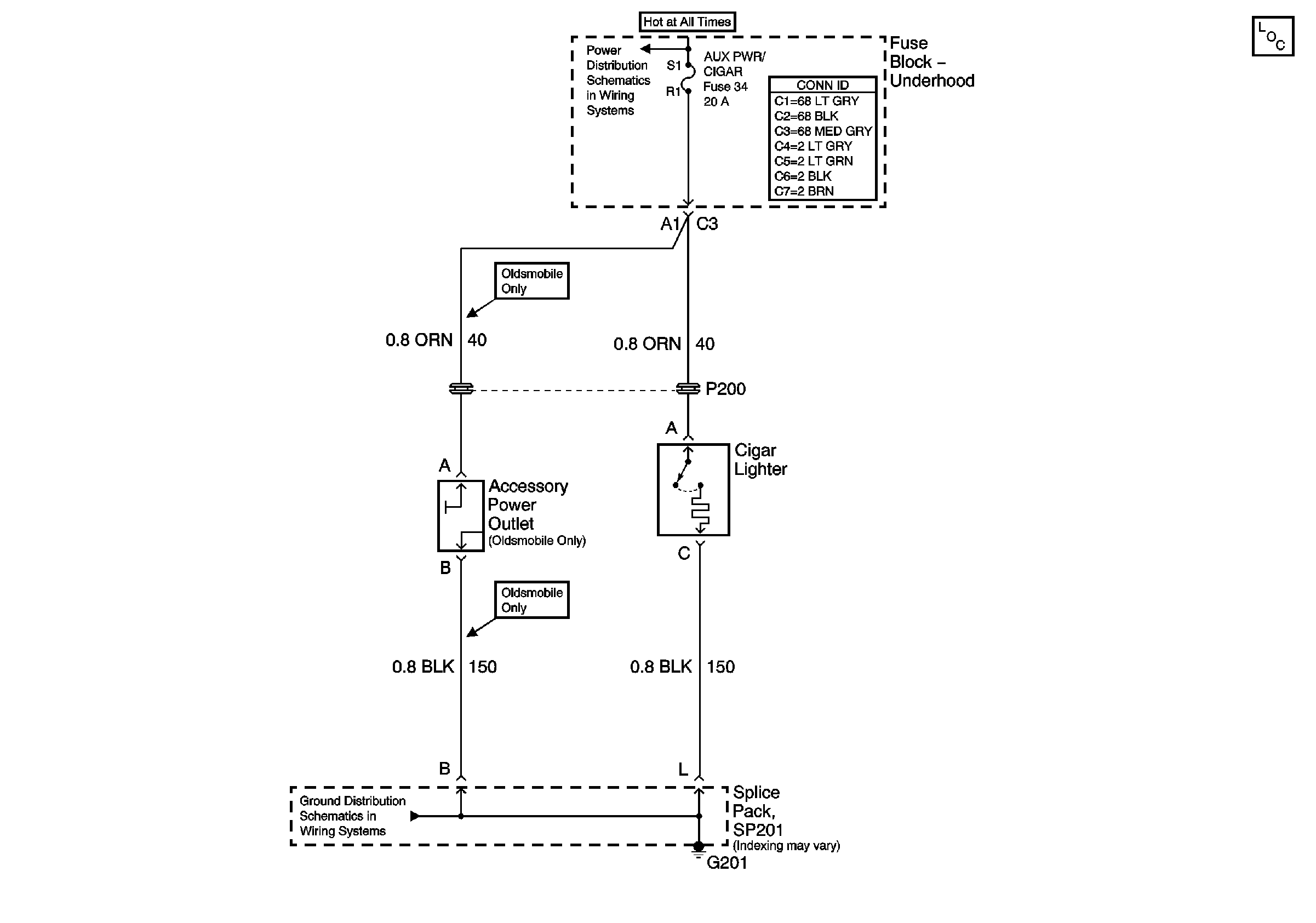

Cigar Lighter/Power Outlet Schematics for Chevrolet Alero Export 2002


Object Number: 782419 Size: FS
Master Electrical Component List
L/H BEC BATT1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWR MIRROR, DR LOCK, TRUNK REL/RFA/Radio Amp Fuses, and RWR SEAT Circuit Breaker
G201
