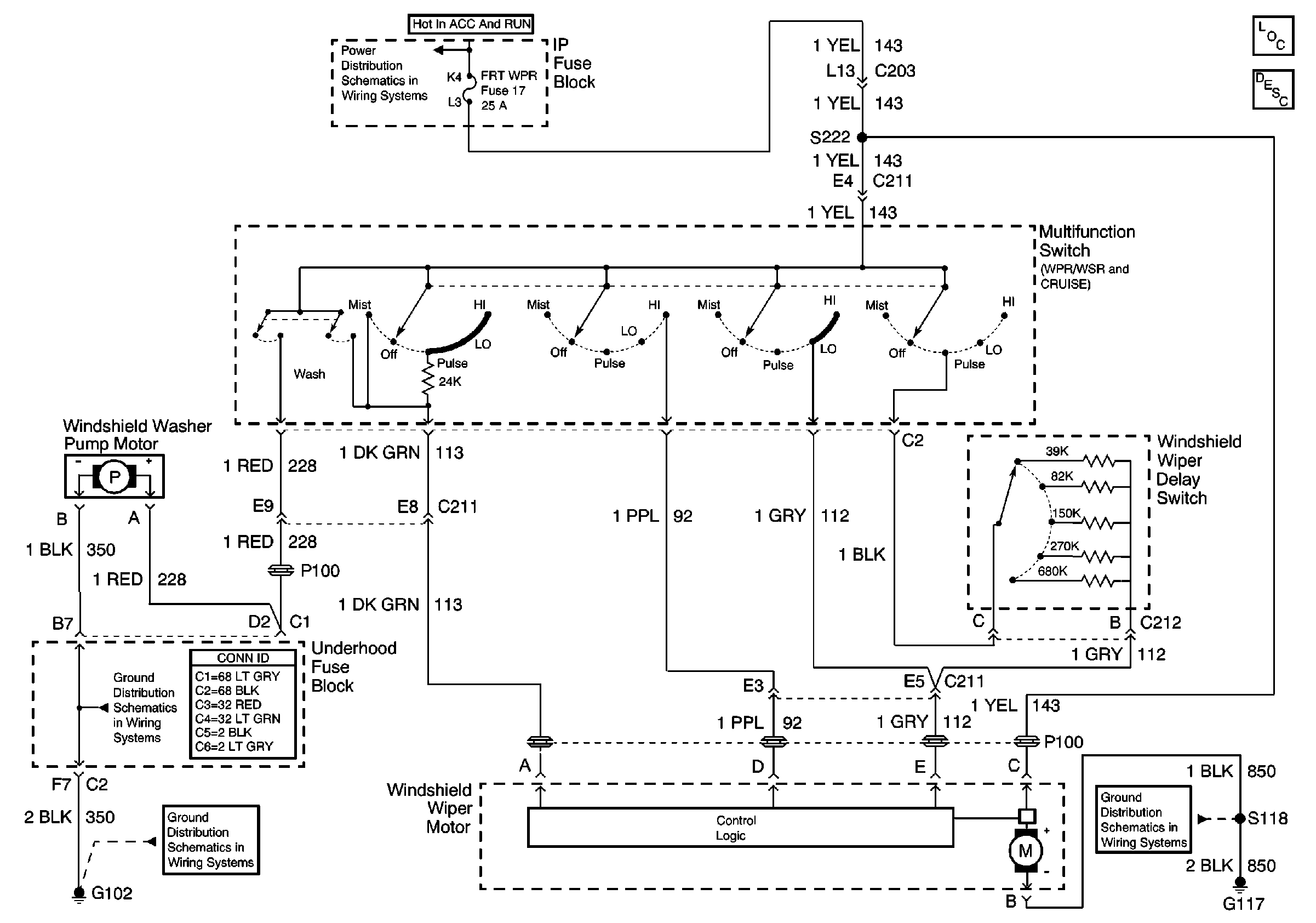

Wiper/Washer System (Pulse) Schematics for Chevrolet Blazer - 4WD - RHD 2000
Wiper/Washer System Components
Wiper/Washer System Circuit Description
Ign START, RUN and ACC Bus Bar
G102
G102
G117
Power and Grounding Connector End Views
