Radio/Audio System Schematics for Chevrolet Chevy Suburban 4WD - RHD 1998

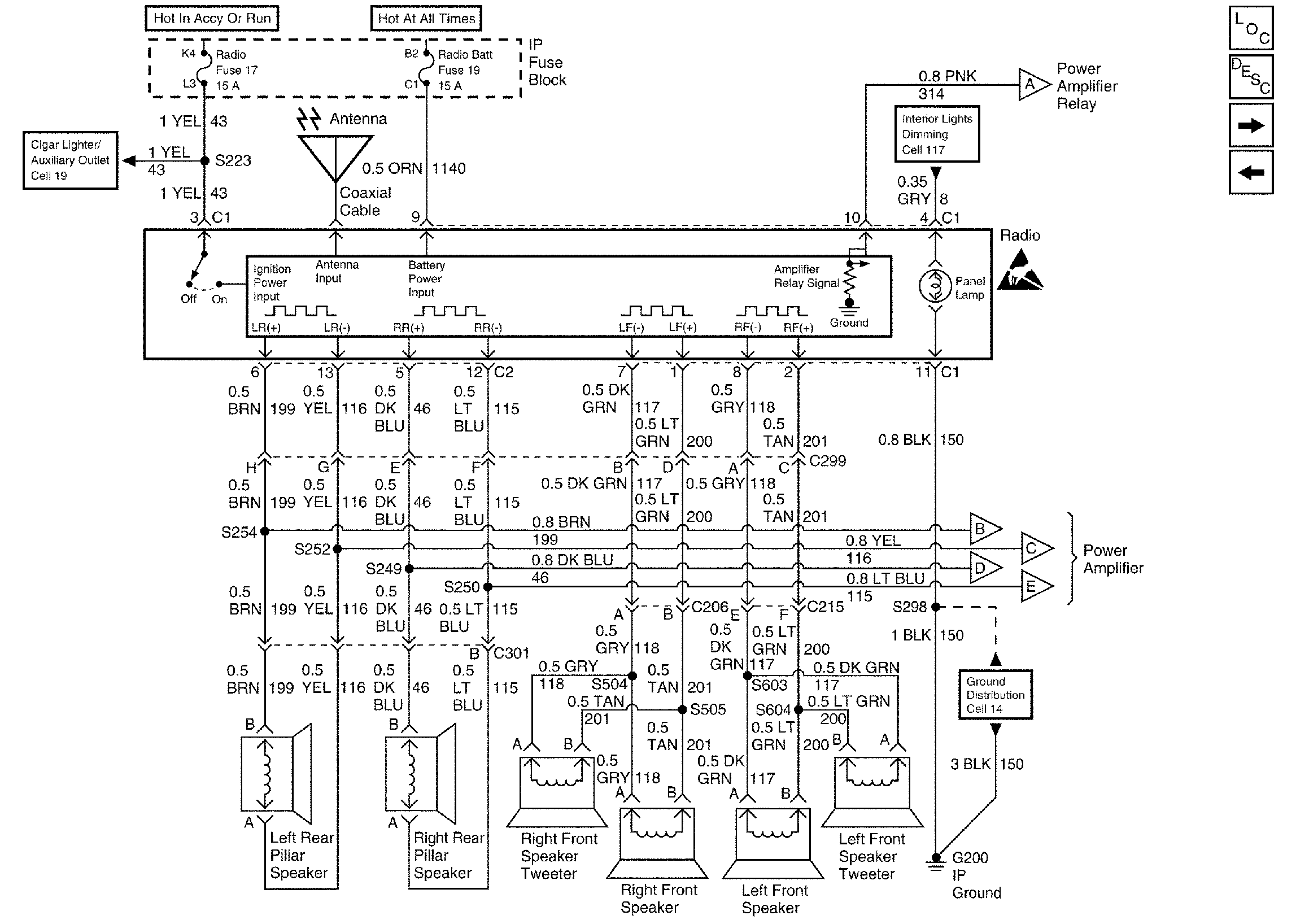

Figure 1:	Cell 150: Pillar and Front Speakers Entertainment Components Radio/Audio System Operation Cell 150: Pillar and Front Speakers with Power Amplifier Handling ESD Sensitive Parts Notice
Figure 2:	Cell 150: Pillar and Front Speakers with Power Amplifier Entertainment Components Radio/Audio System Operation Cell 150: Power Amplifier Cell 150: Pillar and Front Speakers Handling ESD Sensitive Parts Notice

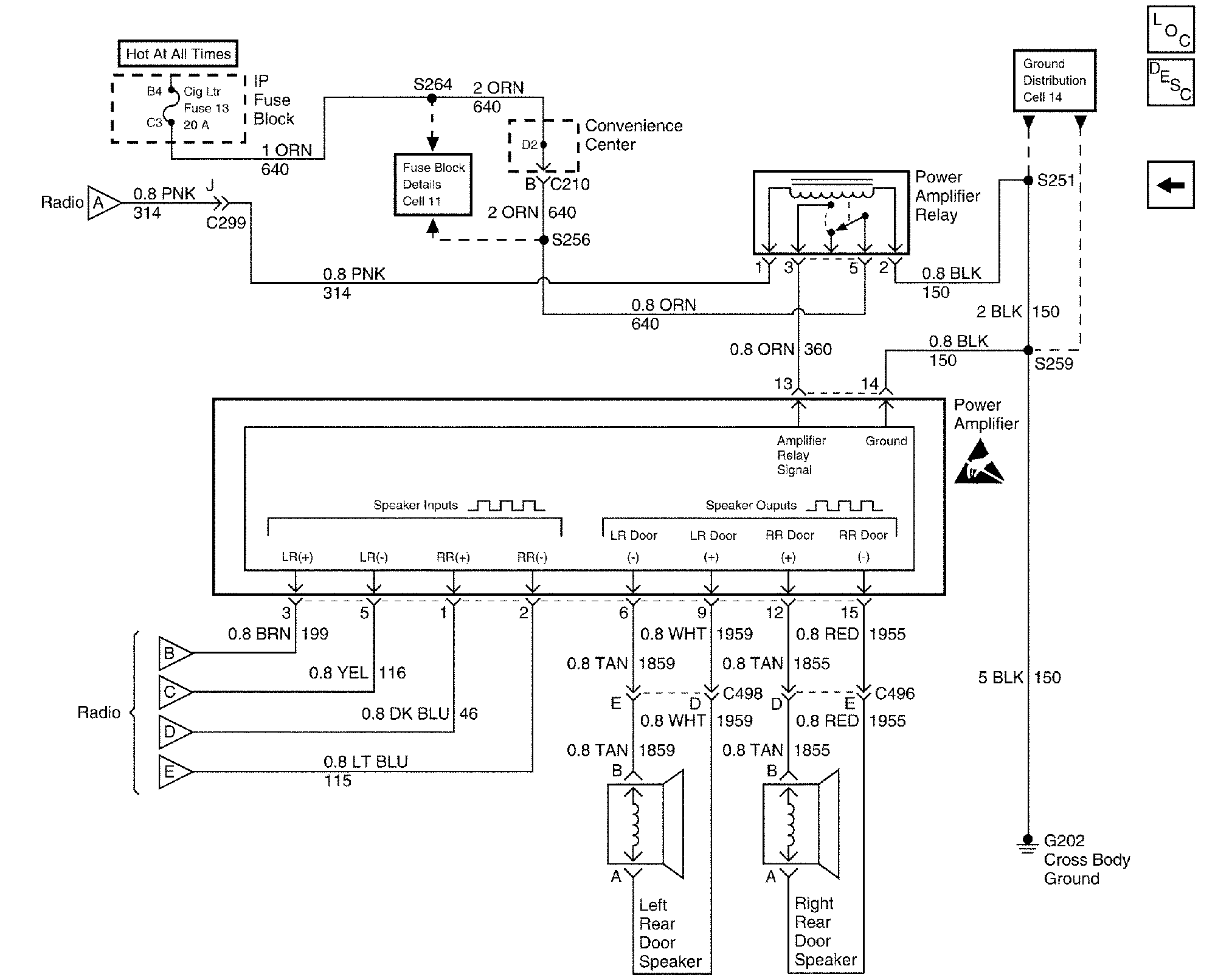

Figure 3:	Cell 150: Power Amplifier Entertainment Components Radio/Audio System Operation Cell 150: Pillar and Front Speakers with Power Amplifier Handling ESD Sensitive Parts Notice
