For 1990-2009 cars only
Power Window Schematics for Chevrolet Chevy Suburban 4WD - RHD 1998
| Figure 1: |

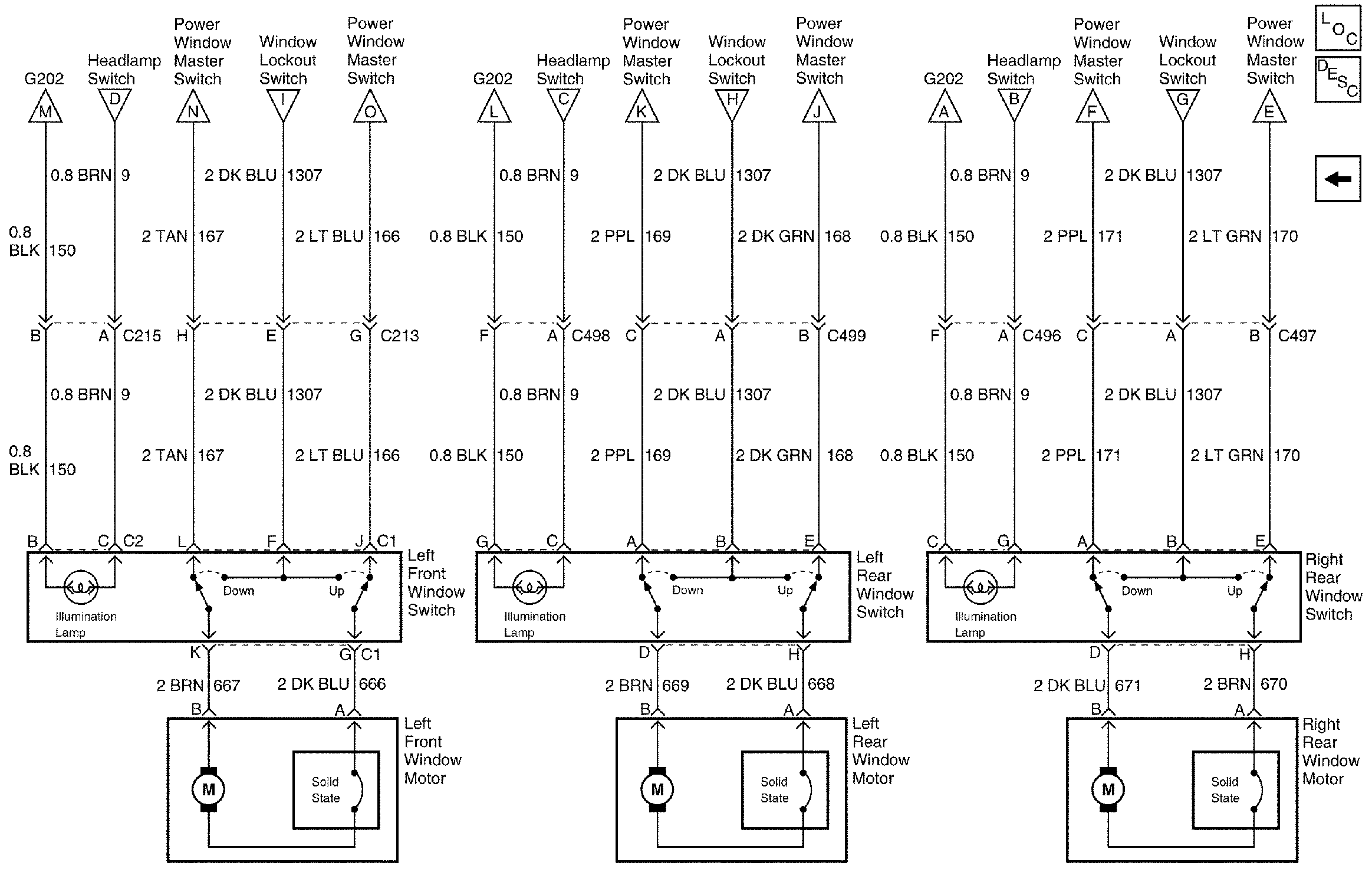

Cell 120: Power Window Motors
|
| Figure 2: |

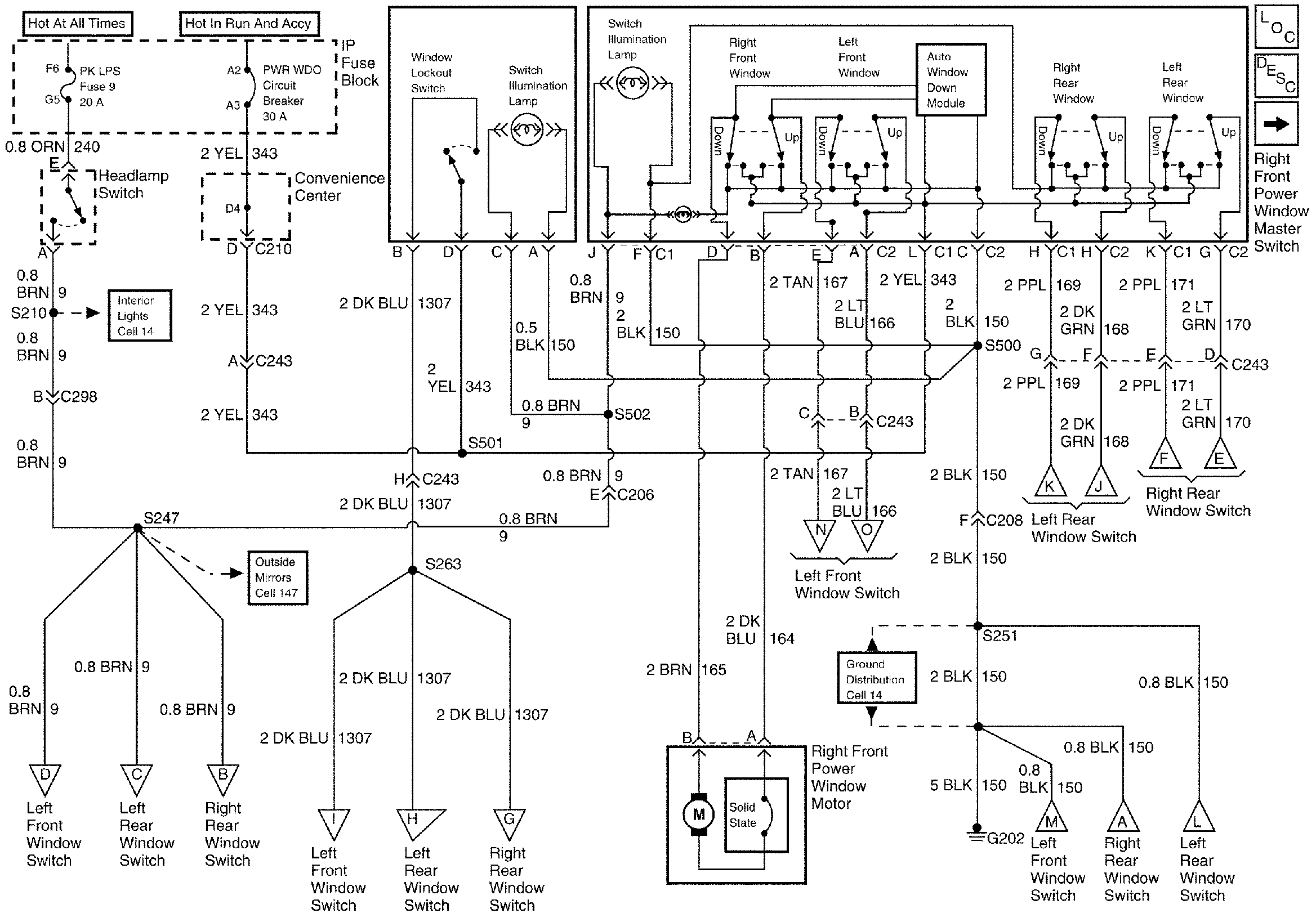

Cell 120: Right Front Power Window Master Switch
|
| Figure 3: |

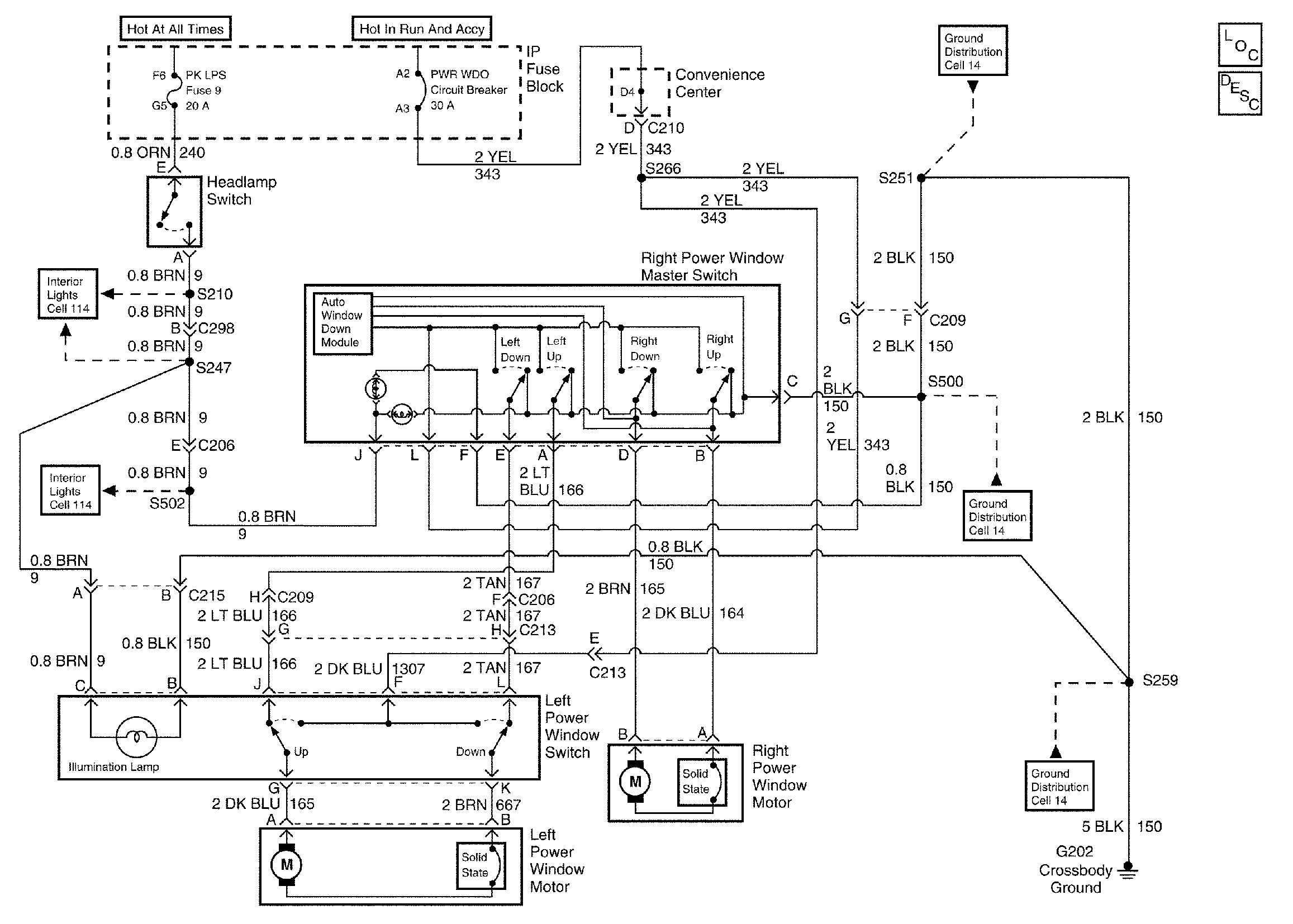

Cell 120: Window Switches and Motors
|
