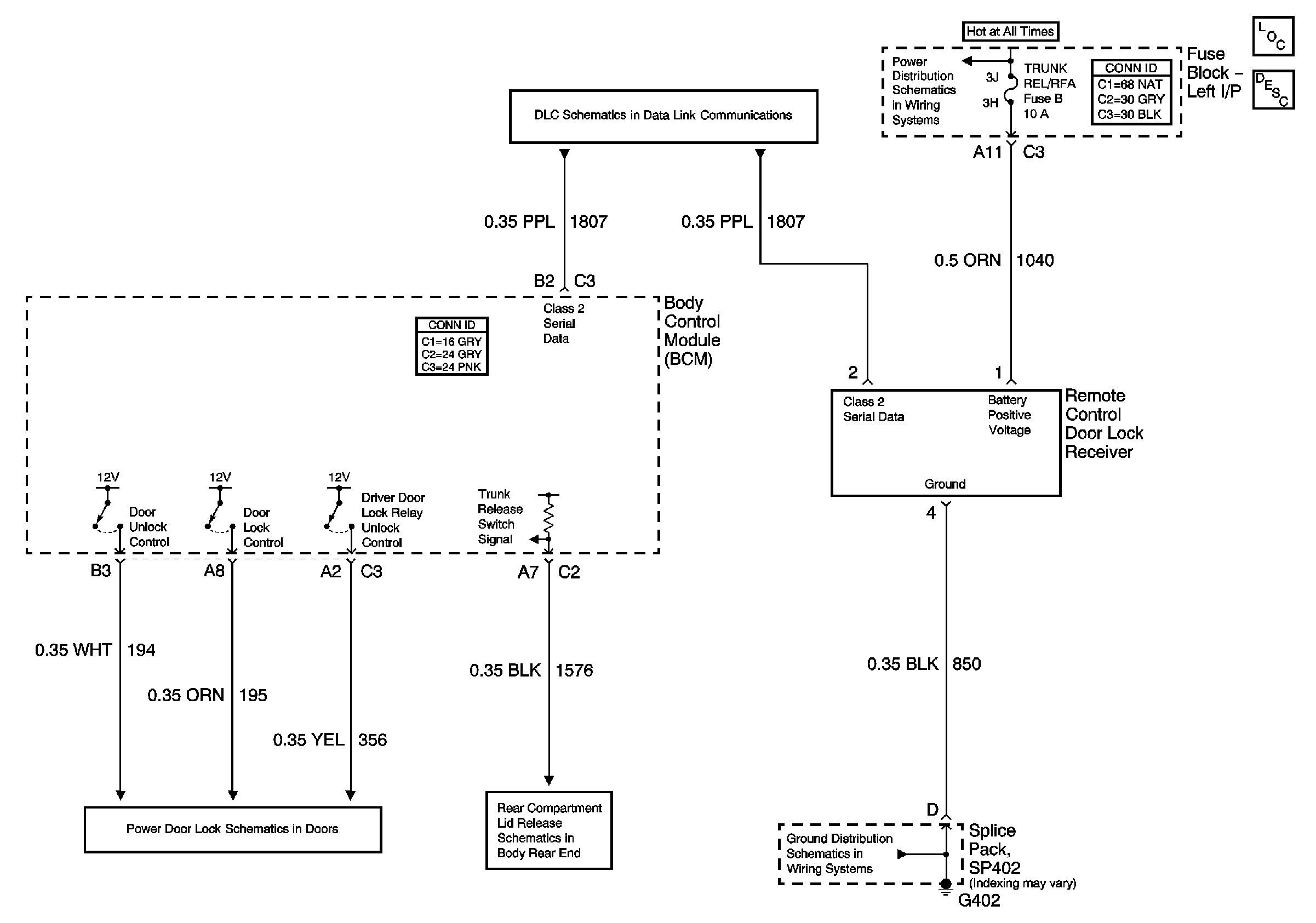

Keyless Entry Schematics for Chevrolet Classic 2004


Object Number: 783695 Size: FS
Master Electrical Component List
Keyless Entry System Description and Operation
Data Link Communication
BATT1, PWR SEAT, PWR MIRROR, DR LOCK, TRUNK REL/RFA Fuses
Actuators w/ Remote Function Actuation
Trunk Release
SP402
