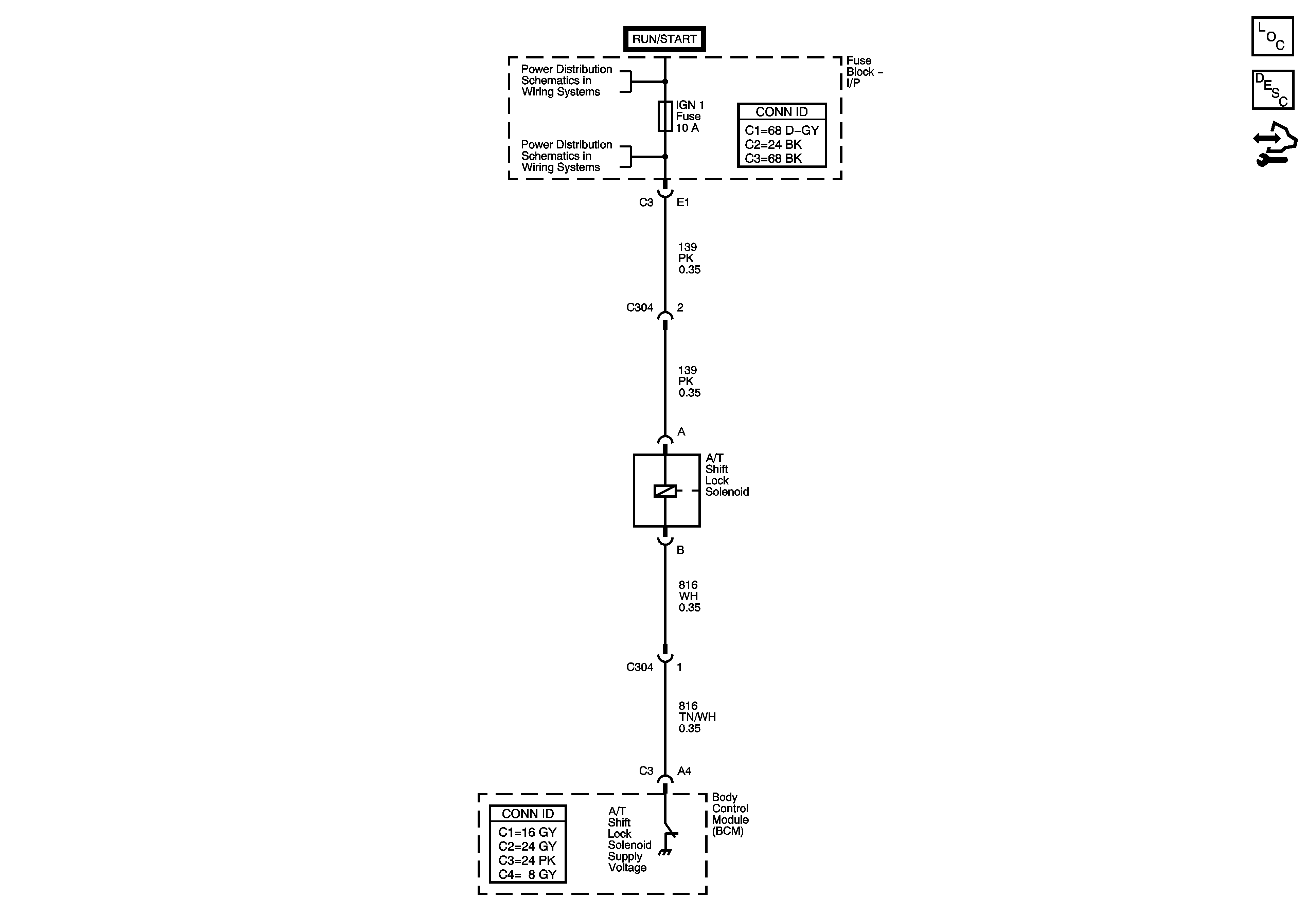

Automatic Transmission Shift Lock Control Schematic for Chevrolet Equinox 2005
Master Electrical Component List
Automatic Transmission Shift Lock Control Description and Operation
Control Module References
Ignition Circuits
IGN1, BCM(IGN), AIR BAG, EPS, and CRUISE Fuses
