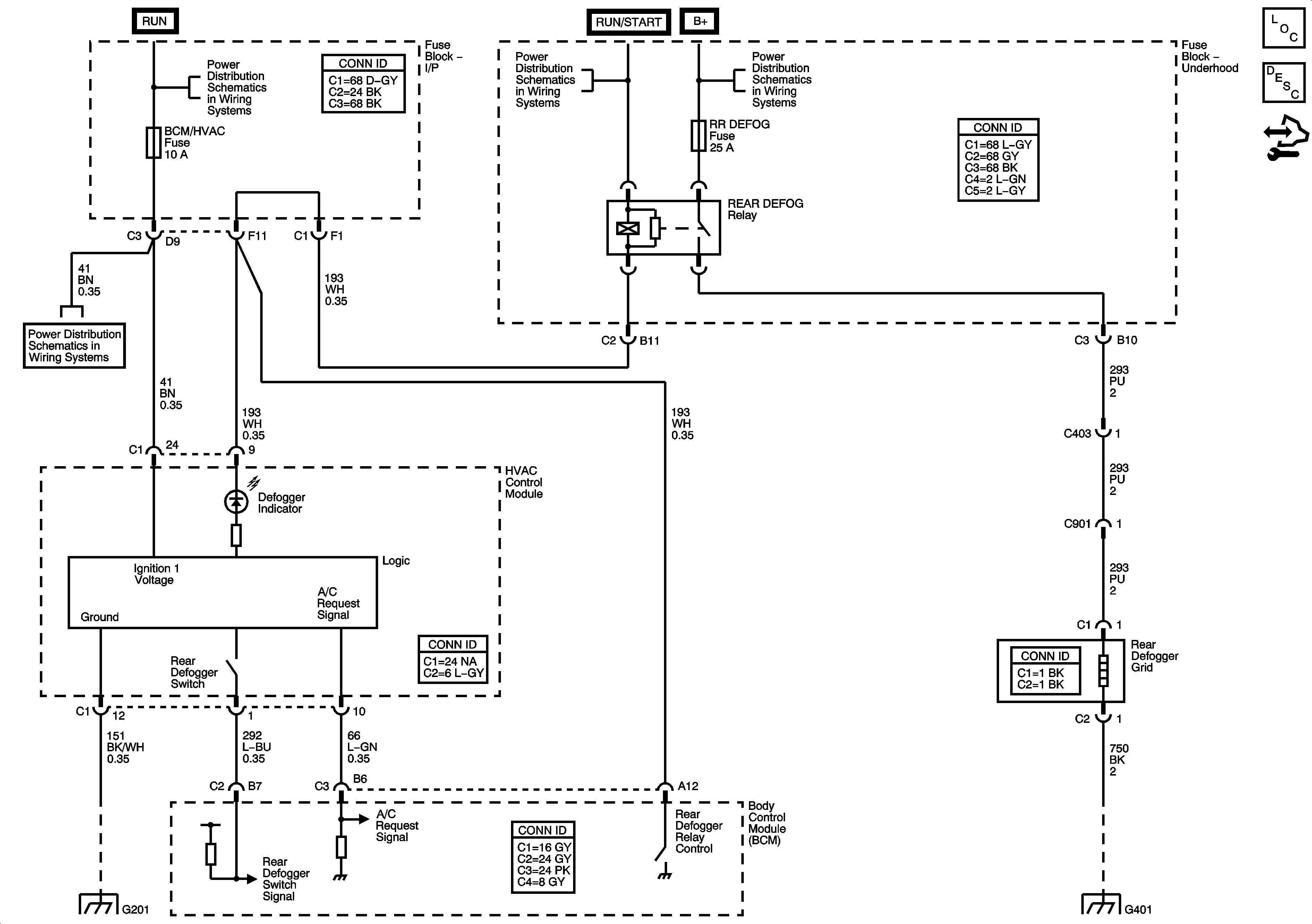

Defogger Schematic for Chevrolet Equinox 2005
Master Electrical Component List
Rear Window Defogger Description and Operation
Control Module References
Ignition Circuits
TURN, BCM, RADIO(IGN), HVAC, and HTD SEATS Fuses
Ignition Circuits
B+ Bussing
G201
G401 and G403
