Wiper/Washer Component Views for Chevrolet Express 2001

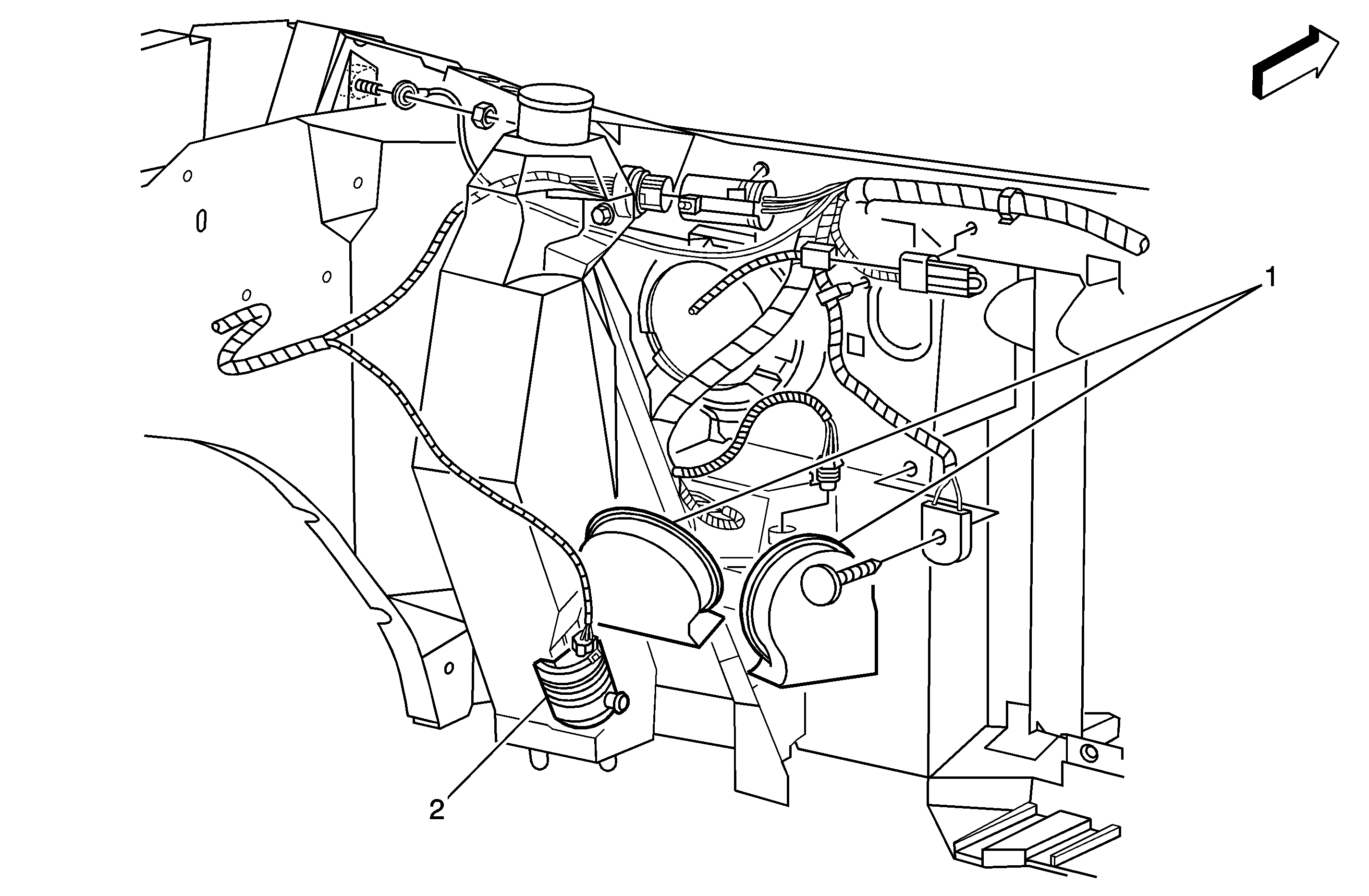

Figure
1:
Horns, Forward Lamp Wiring
(1)
Horns
(2)
Windshield Washer Pump Motor

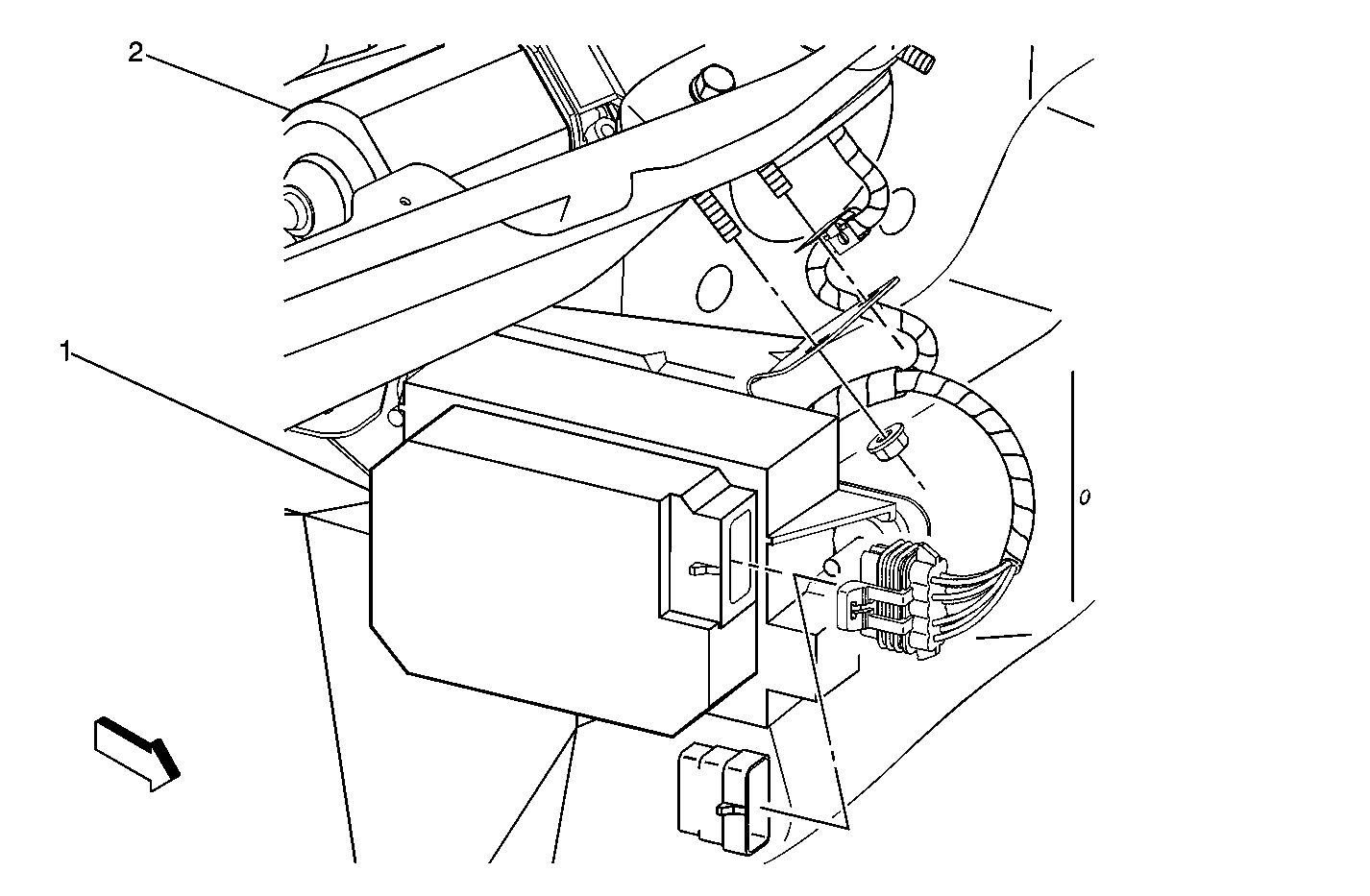

Figure
2:
Windshield Wiper Motor, IP Wiring
(1)
Cruise Control Module
(2)
Windshield Wiper Motor

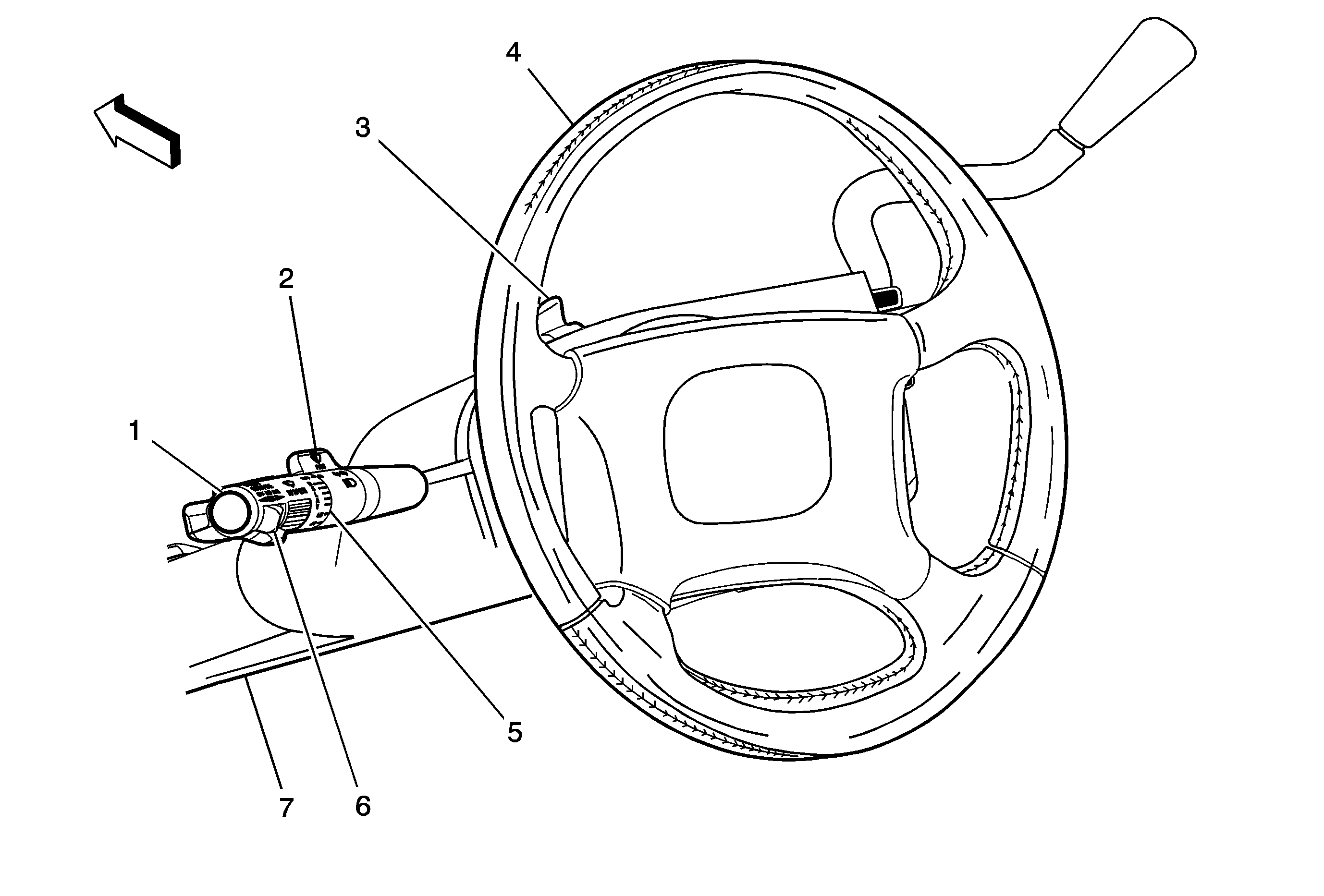

Figure
3:
Upper Steering Column
(1)
Cruise Control Set Switch (K34)
(2)
Windshield Washer Switch
(3)
Hazard Switch
(4)
Steering Wheel
(5)
Windshield Wiper Switch
(6)
Cruise Control ON/OFF/RESUME Switch (K34)
(7)
Steering Column
