Floor Panel Carpet Replacement for Chevrolet Impala 2007

Floor Panel Carpet Replacement Impala

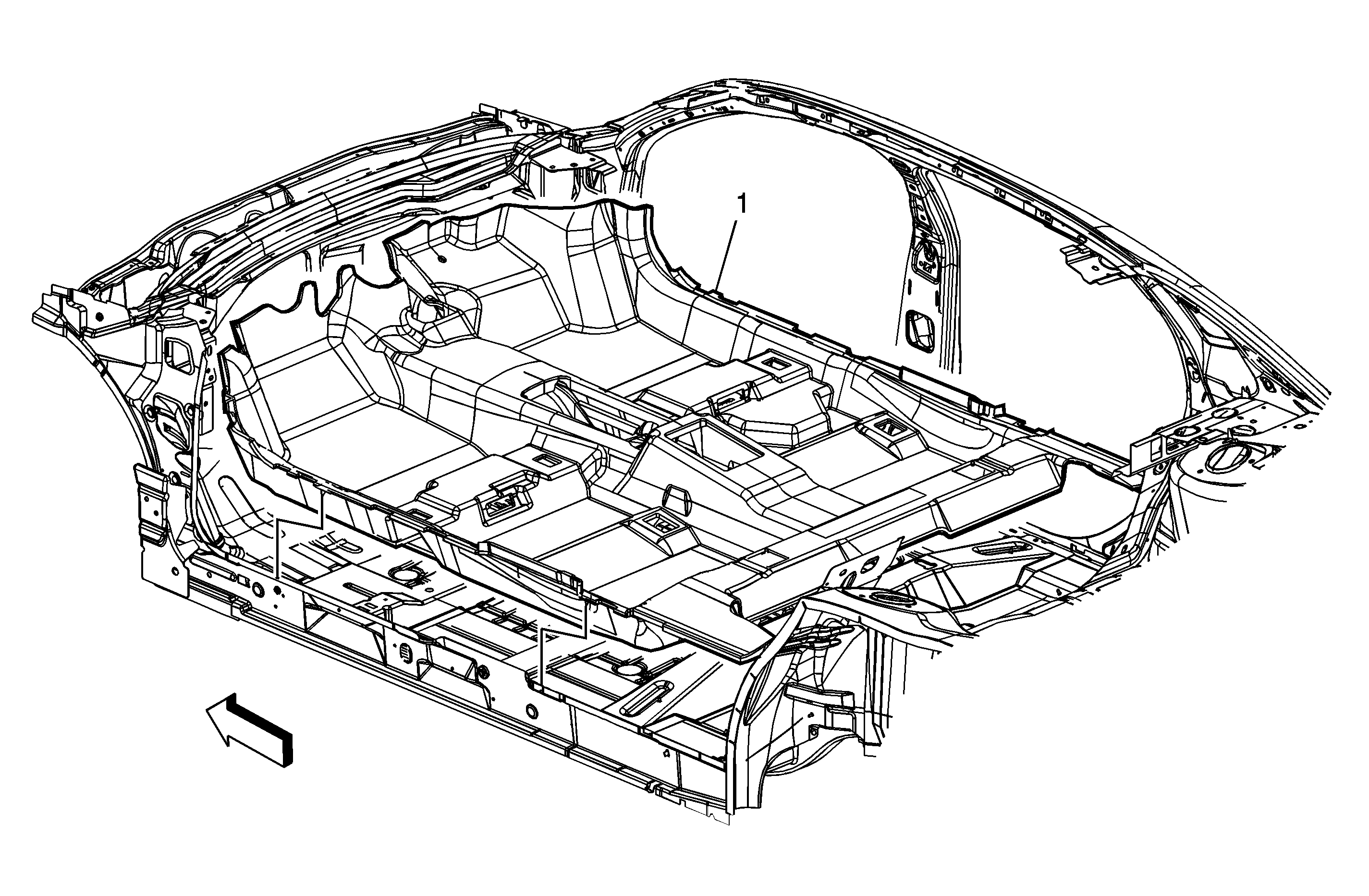

Object Number: 1614112 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the front seats. Refer to Front Seat Replacement - Bucket .
  2. Remove the rear seat. Refer to Rear Seat Cushion Replacement .
  3. Remove the floor console. Refer to Front Floor Console Replacement .
  4. Remove the carpet retainers. Refer to Front Carpet Retainer Replacement .
  5. Loosen the center lower pillar garnish moldings. Refer to Center Pillar Lower Trim Panel Replacement .
  6. Loosen the lower lock pillar garnish moldings. Refer to Quarter Lower Rear Trim Panel Replacement
  7. Remove the lower front seat belt bolt.

1

Floor Panel Carpet Assembly

Floor Panel Carpet Replacement Monte Carlo


Object Number: 1614112 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the front seats. Refer to Front Seat Replacement - Bucket .
  2. Remove the rear seat. Refer to Rear Seat Cushion Replacement .
  3. Remove the floor console. Refer to Front Floor Console Replacement .
  4. Remove the carpet retainers. Refer to Front Carpet Retainer Replacement .
  5. Loosen the lower lock pillar garnish moldings. Refer to Quarter Lower Rear Trim Panel Replacement
  6. Remove the lower front seat belt bolt.

1

Floor Panel Carpet Assembly
