Retained Accessory Power (RAP) Schematics for Chevrolet Omega VE 2007

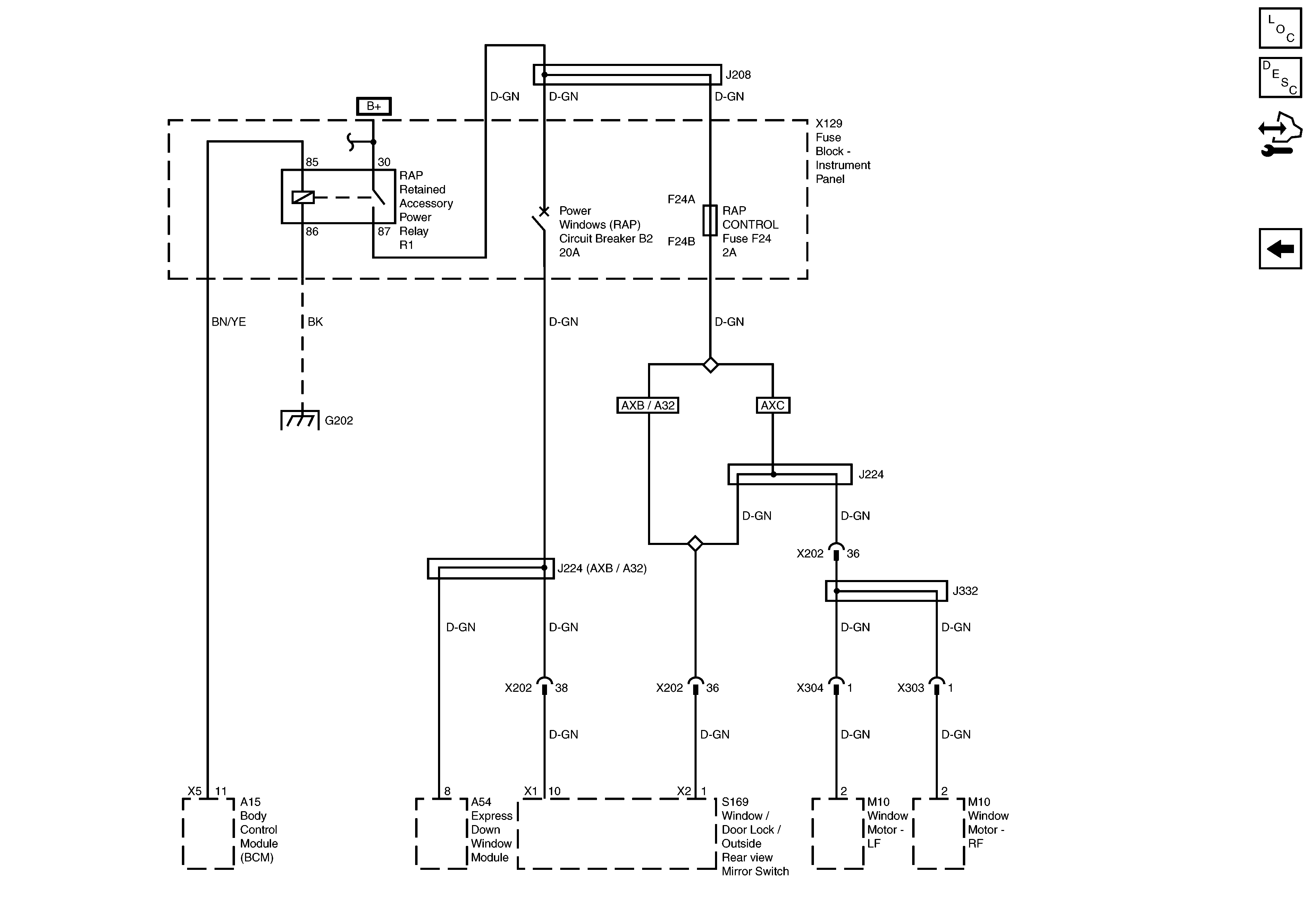

RAP Relay Inputs and Outputs
Object Number: 1955585 Size: FS
