Instrument Cluster: Analog Schematics for Chevrolet PJJ 2000
| Figure 1: |

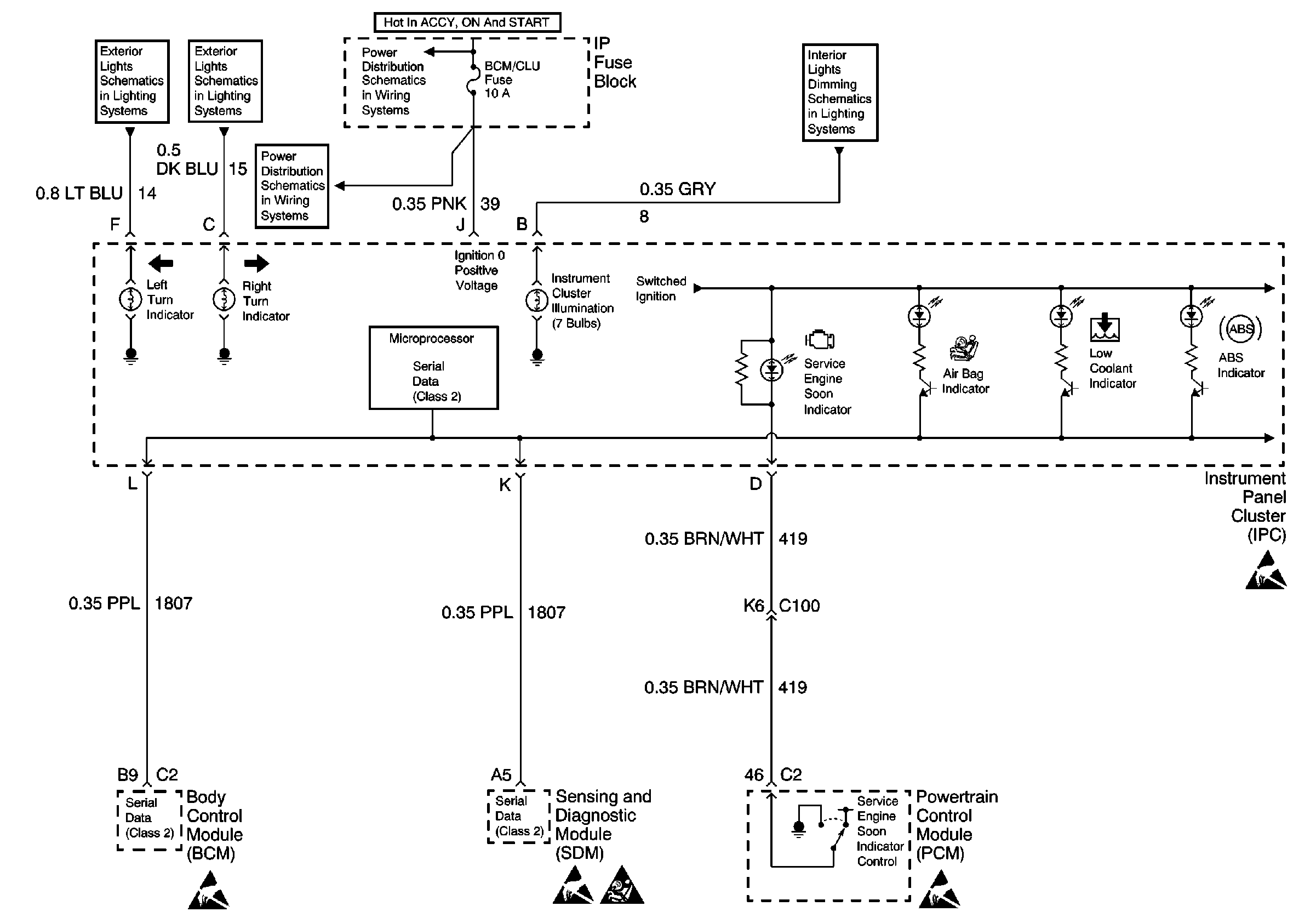

Power and Class 2 Data Lines
|
| Figure 2: |

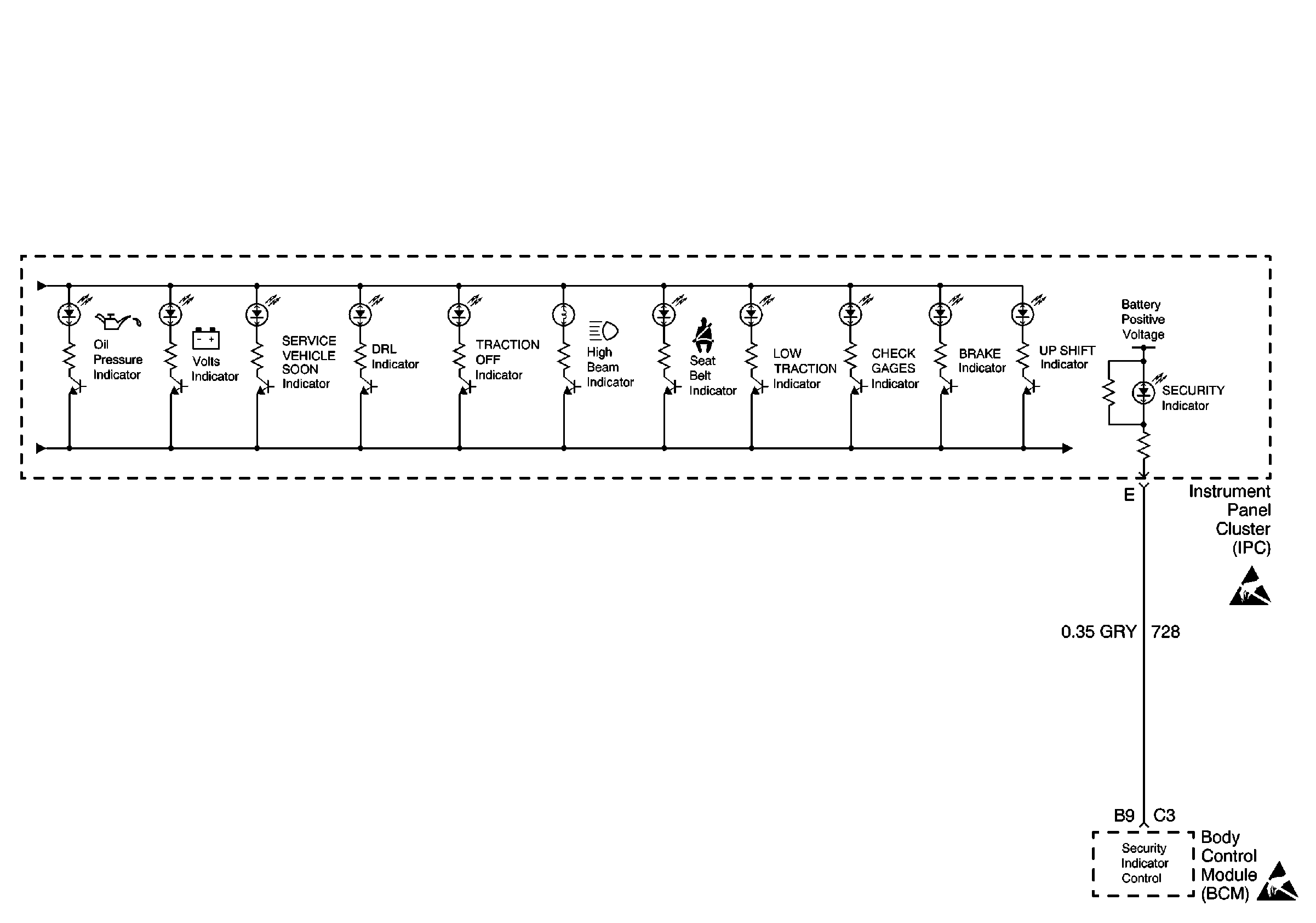

Indicators
|
| Figure 3: |

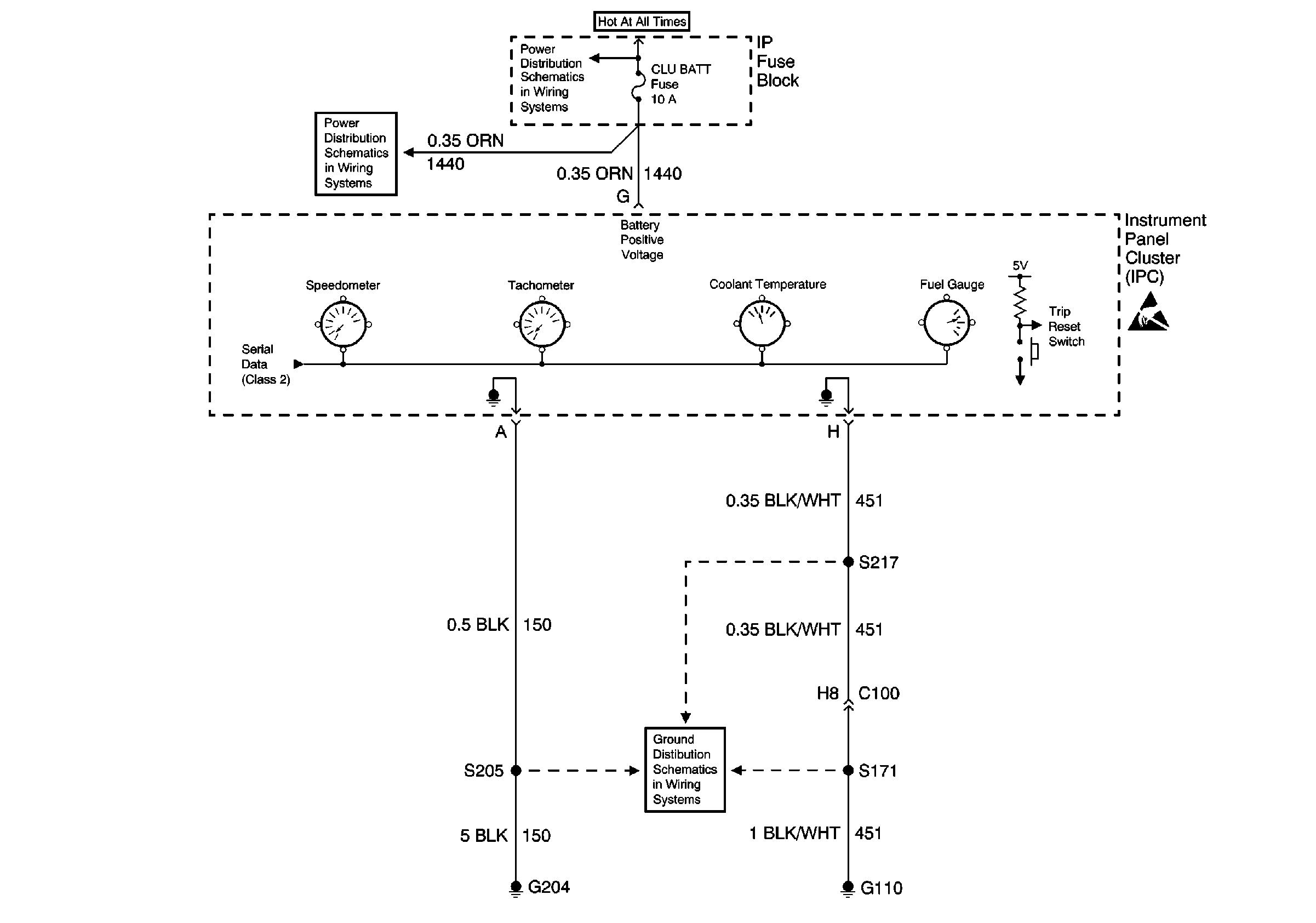

Grounds
|
| Figure 1: |
Power and Class 2 Data Lines
|
| Figure 2: |
Indicators
|
| Figure 3: |
Grounds
|
