Engine Block Disassemble for Daewoo Lacetti (Global Delta) 2009


    Object Number: 2028014 Size: SH
  1. Remove the crankshaft position sensor bolt (1).
  2. Remove the crankshaft position sensor (2).
  3. Remove the crankshaft position sensor gasket (3).

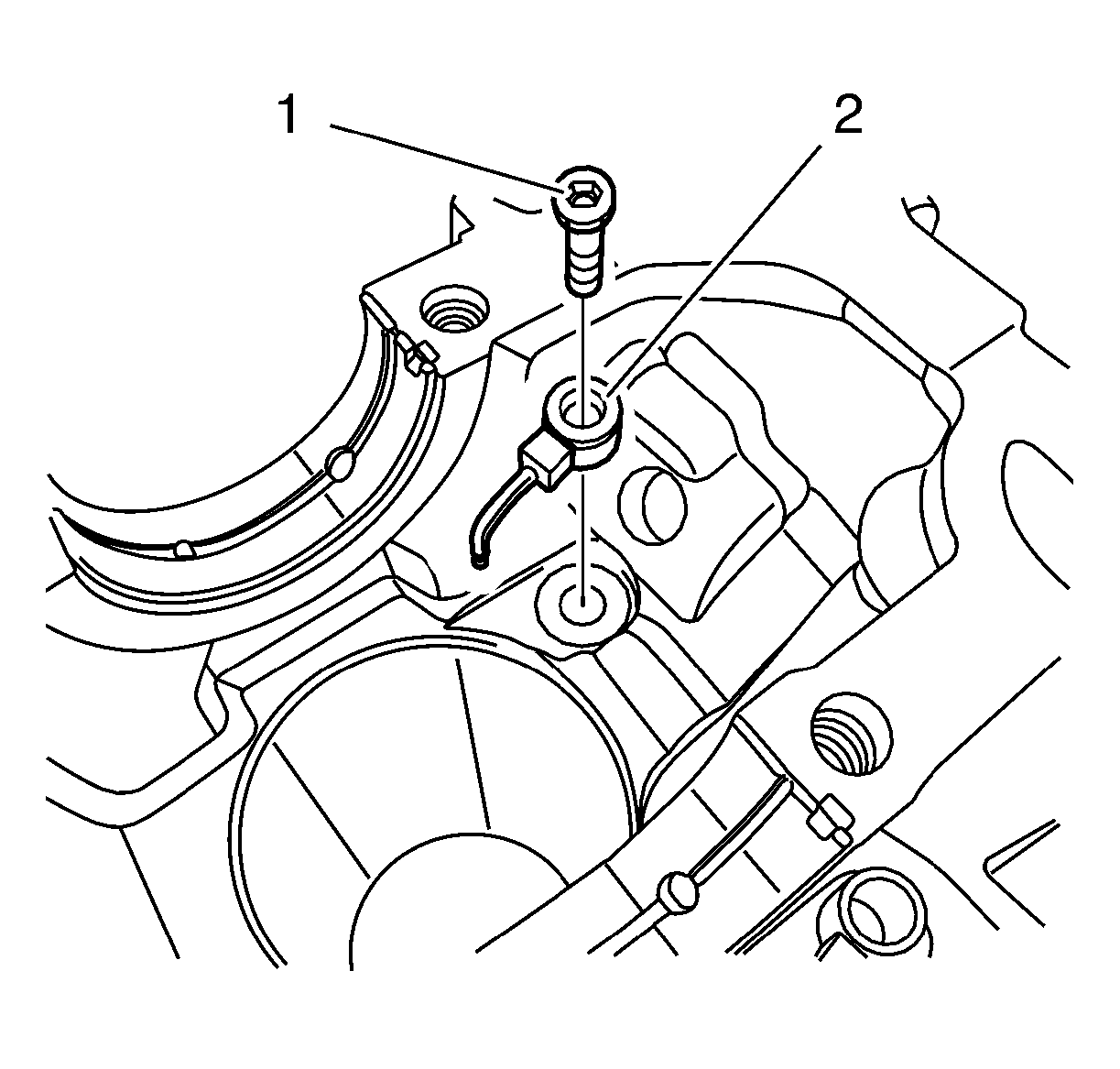

    4. Object Number: 2028015 Size: SH

    Note: Guarantee that no dirt contaminate the piston oil nozzle tube.

  4. Remove the piston oil nozzle tube bolt (1).
  5. Remove the piston oil nozzle tube (2).
