Third Oil and Case Cup Plugs Disassemble for Generic Unit Repair 1998

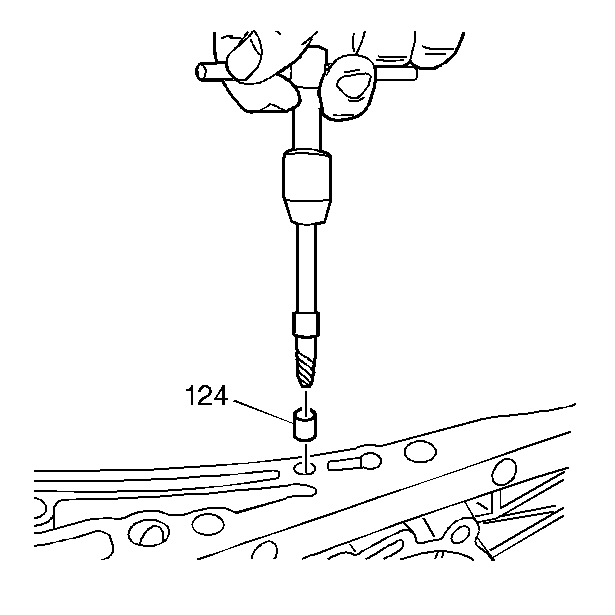

Using a T handle and a modified #4 screw extractor, remove the third oil cup plug (124).

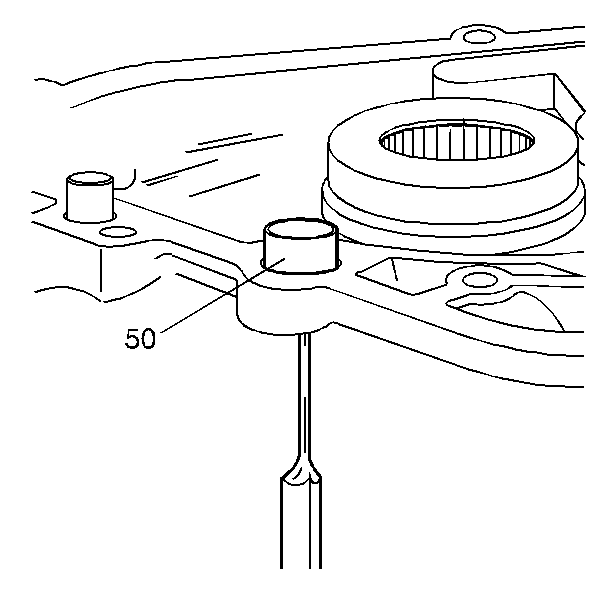

Using a drift pin, remove the case cup plug (50).
