Drive Axle Oil Seal Removal - Left Side for Generic Unit Repair 1998
Tools Required
•
J 23129
Converter Housing Seal Remover
•
J 6125-1B
Slide Hammer

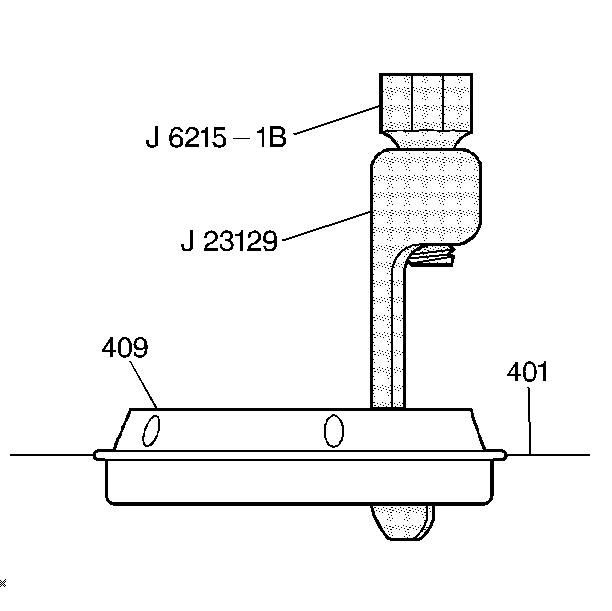

Use
J 23129
and
J 6125-1B
in order to remove the oil seal assembly (409) from the case cover (401).
