Second Clutch Plates and Reverse Clutch Removal for Generic Unit Repair 1998

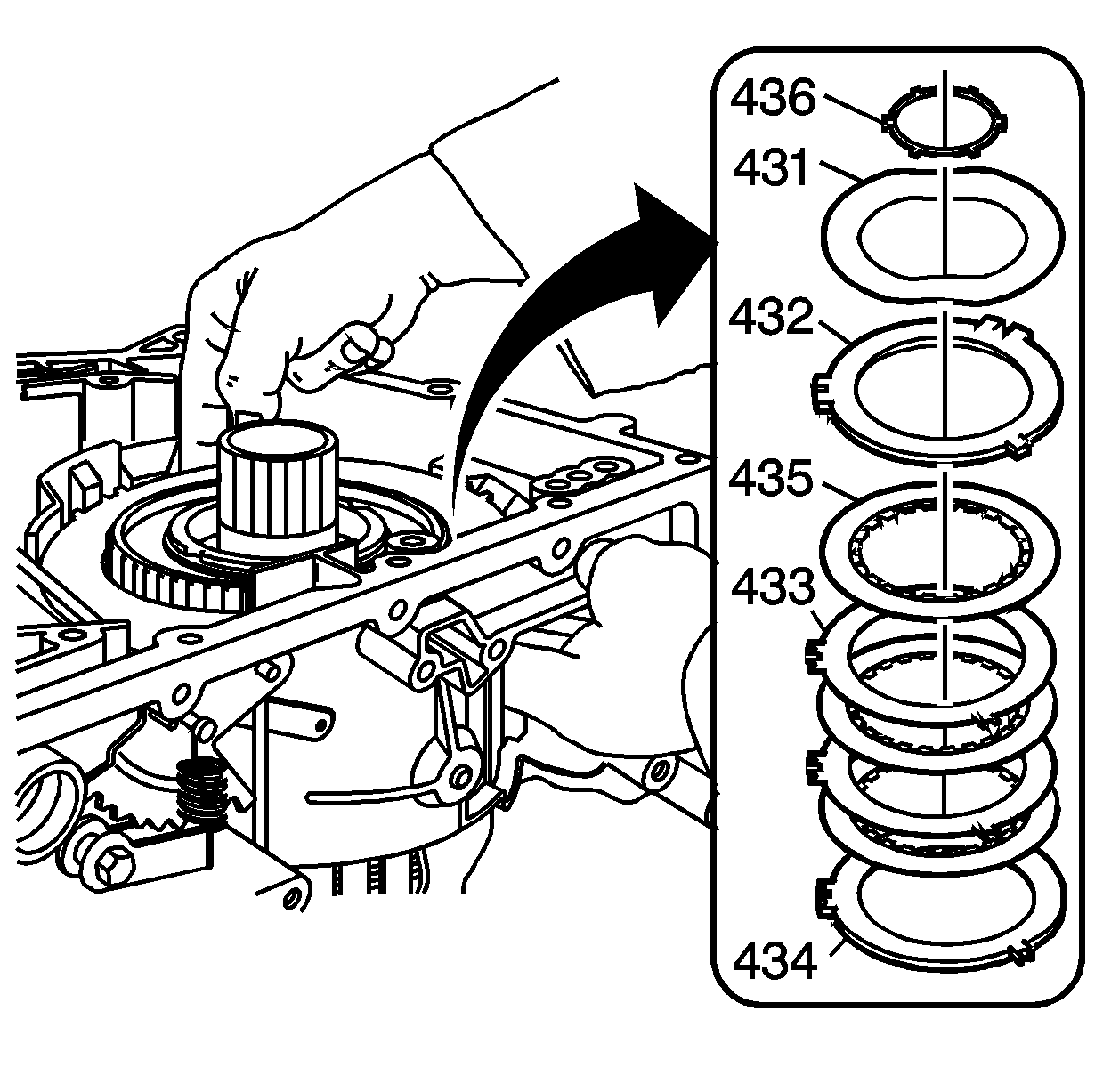

Remove the second clutch steel assembly (431-435). Push up near the scavenge tube channel and the bottom pan side.
Remove the reverse clutch support thrust washer (436).
