Extension Assemble for Generic Unit Repair 1998
Tools Required
•
J 8092
Driver Handle
•

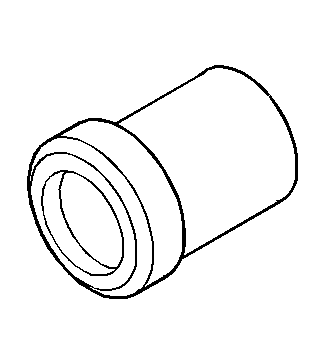

J 23062-14
Bearing and Bushing Remover/Installer
•

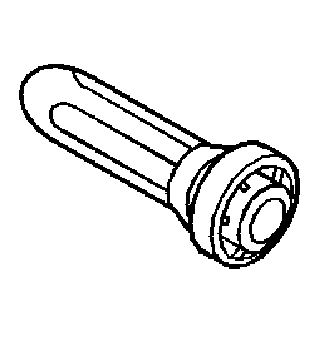

J 21426
Rear Extension Housing Seal Installer

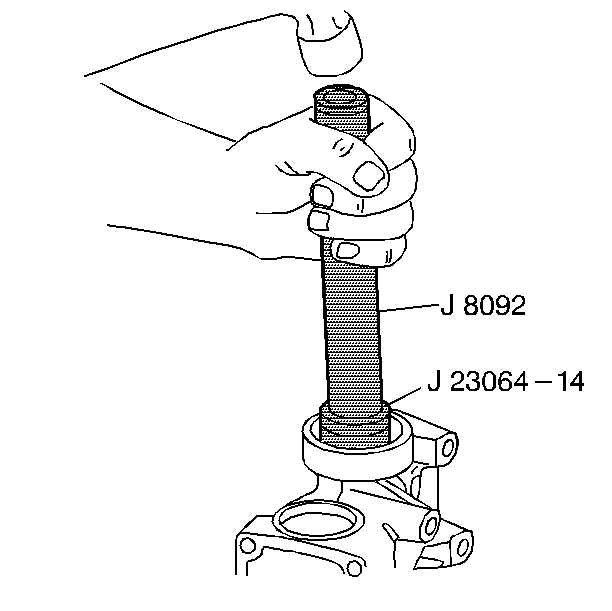

Install a new bushing in the extension housing using the
J 23062-14
and the
J 8092
.

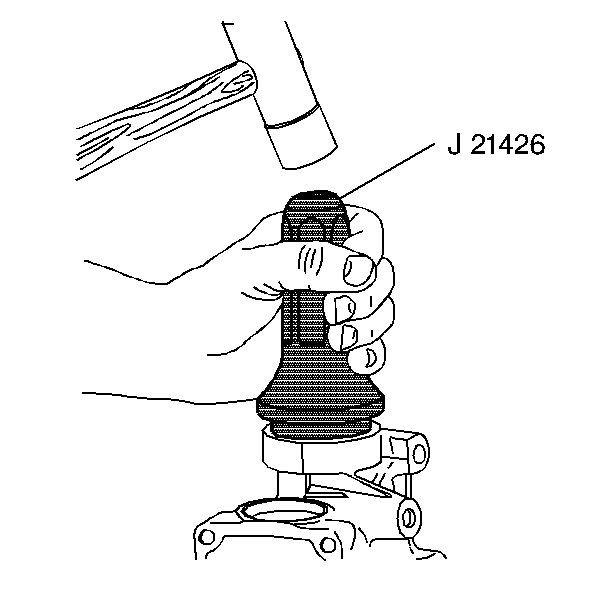

Install a new extension housing oil seal using the
J 21426
.

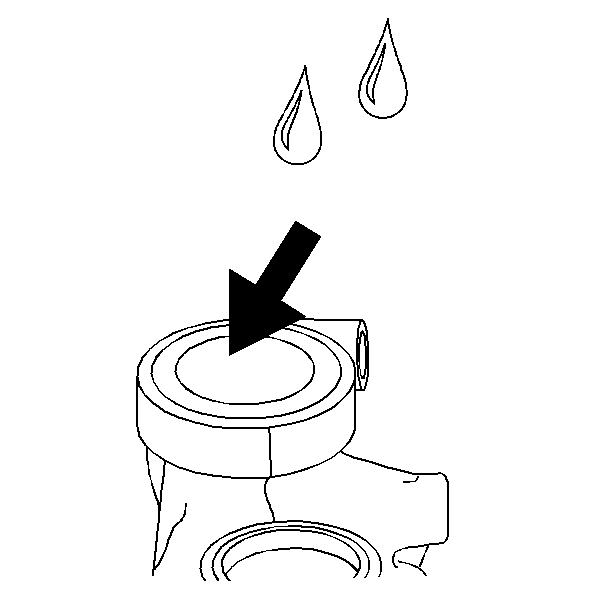

Lubricate the inside diameter of the extension housing oil seal with DEXRON III® or equivalent.
