Adapter Case Removal for Generic Unit Repair 1998

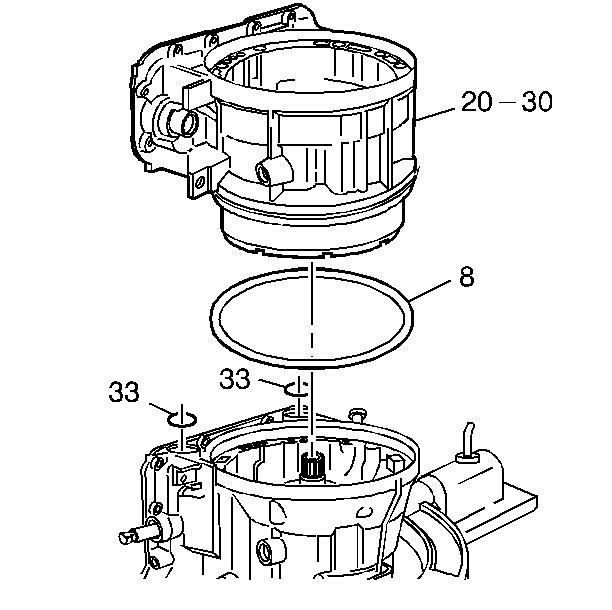

Remove the adapter case assembly (20-30).
Remove the adapter case to main case seal (8).
Remove the two main case seals (33).
