Extension Assemble for Generic Unit Repair 1998
Tools Required
J 21426
Extension Housing Seal Installer

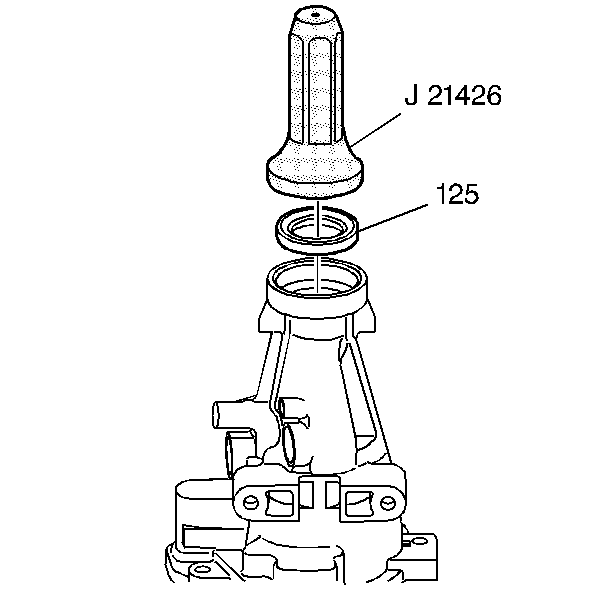

Install the extension housing seal (125) using
J 21426
.

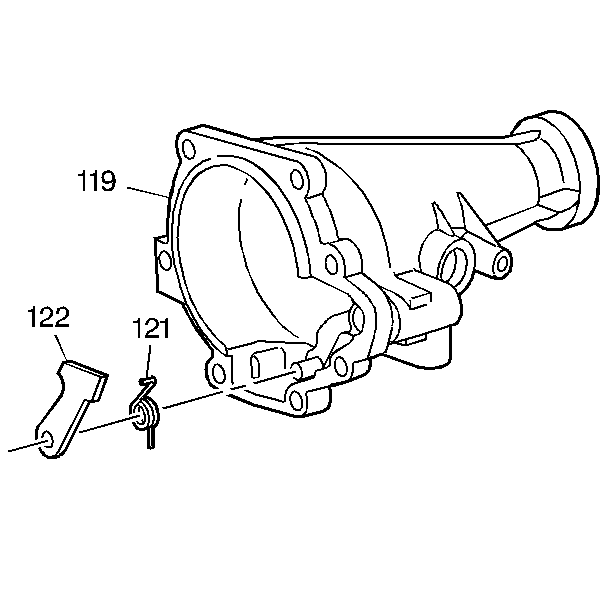

Install the parking lock pawl spring (121).
Install the parking lock pawl (122).
