Timing Chain and Sprocket Removal for Generic Unit Repair 2001
Tools Required
J 5825-A
Crankshaft Sprocket Puller
Remove the camshaft sprocket bolt.
Remove the camshaft sprocket and timing chain.

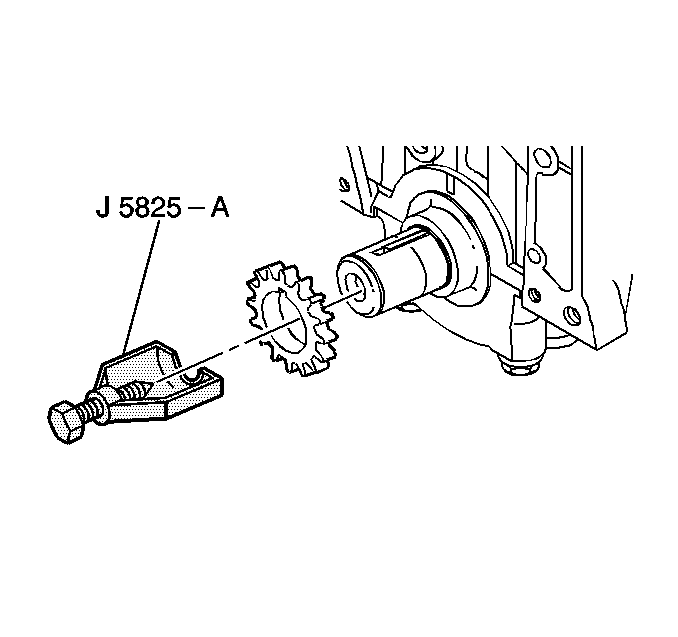

Remove the crankshaft sprocket. Use the
J 5825-A
.
Remove the timing chain dampener bolts.
Remove the timing chain dampener.
