Cylinder Head Removal - Left Side for Generic Unit Repair 2001

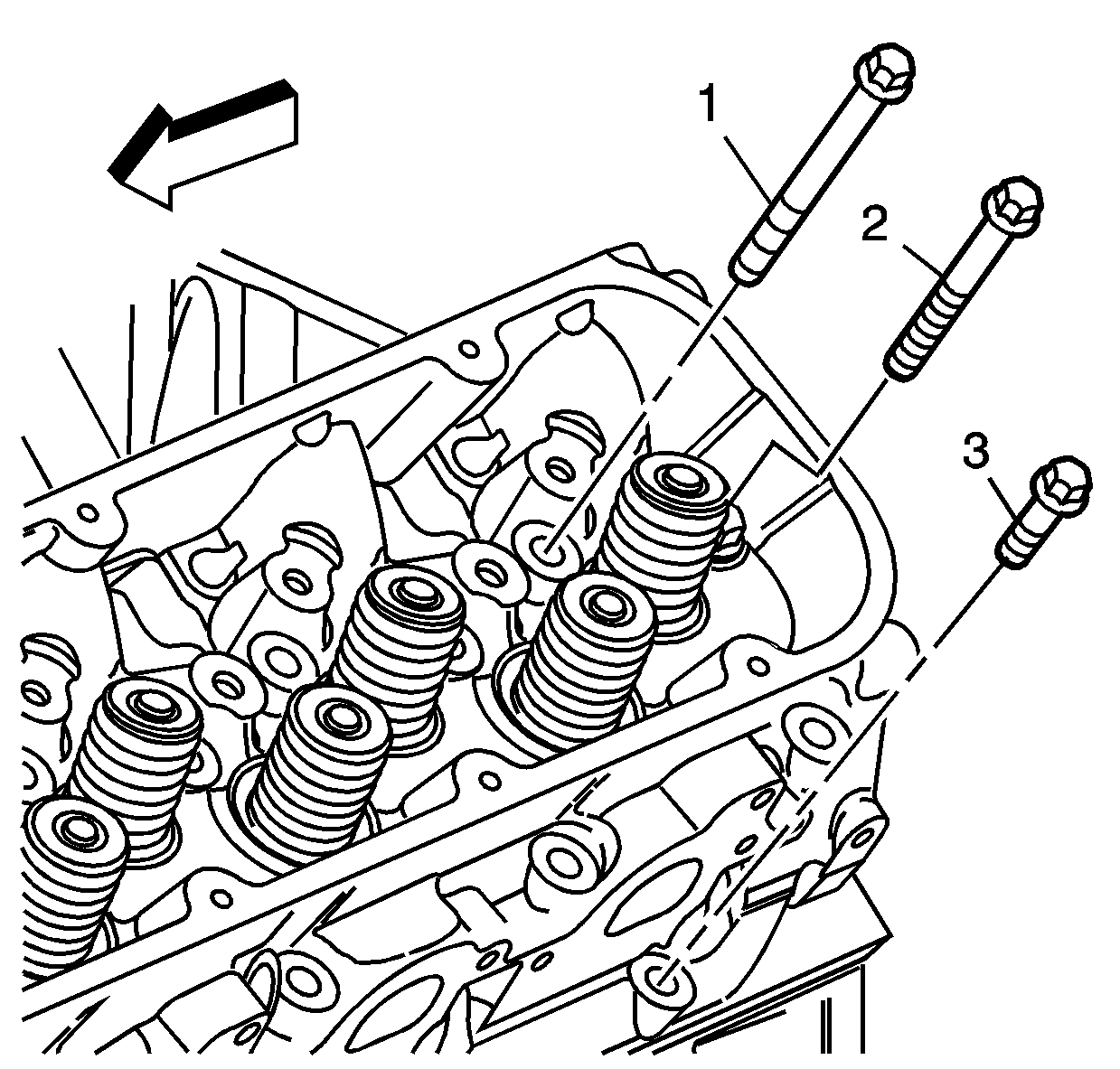

Remove and discard the eighteen cylinder head bolts (1, 2, 3).
Important:
Place cylinder head on two wood blocks to prevent damage to the sealing surfaces.

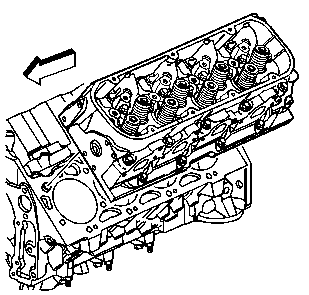

Remove the cylinder head.
Remove the cylinder head gasket.
Discard the cylinder head gasket.
