Transmission Fluid Pump Removal for Generic Unit Repair 2002
Tools Required
J 43445
Fluid Pump Remover

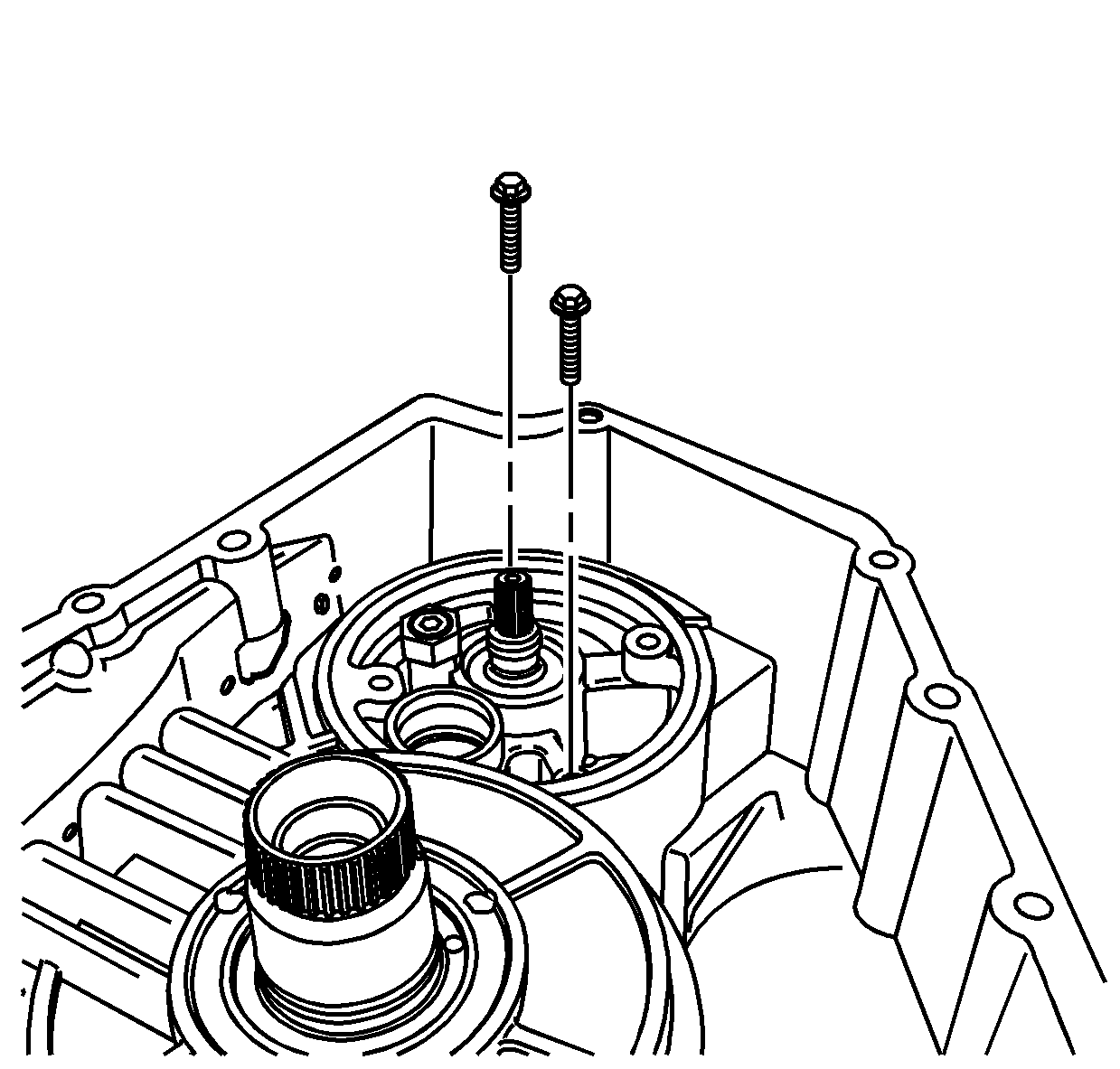

Remove the 2 remaining bolts securing the fluid pump assembly to the transmission case assembly.

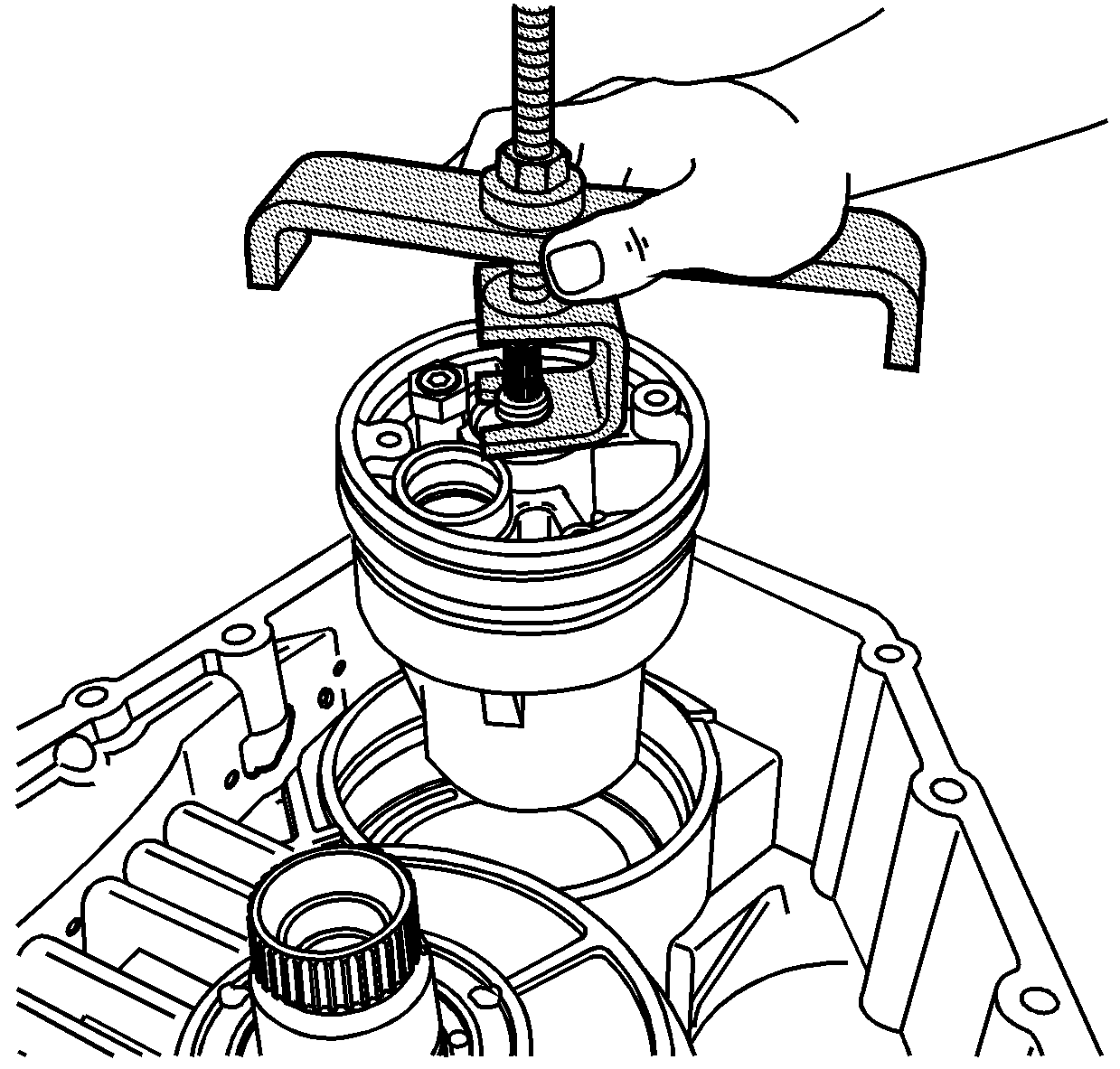

Position the forked clamp of the
J 43445
under the splines of the fluid pump shaft.
Position the support bracket of the
J 43445
on the transmission case assembly.
Turn the hex nut of the
J 43445
clockwise in order to lift the fluid pump assembly out of the transmission case assembly.
Remove the fluid pump assembly.
Remove the
J 43445
.
