Second Clutch Plates Removal for Generic Unit Repair 2005

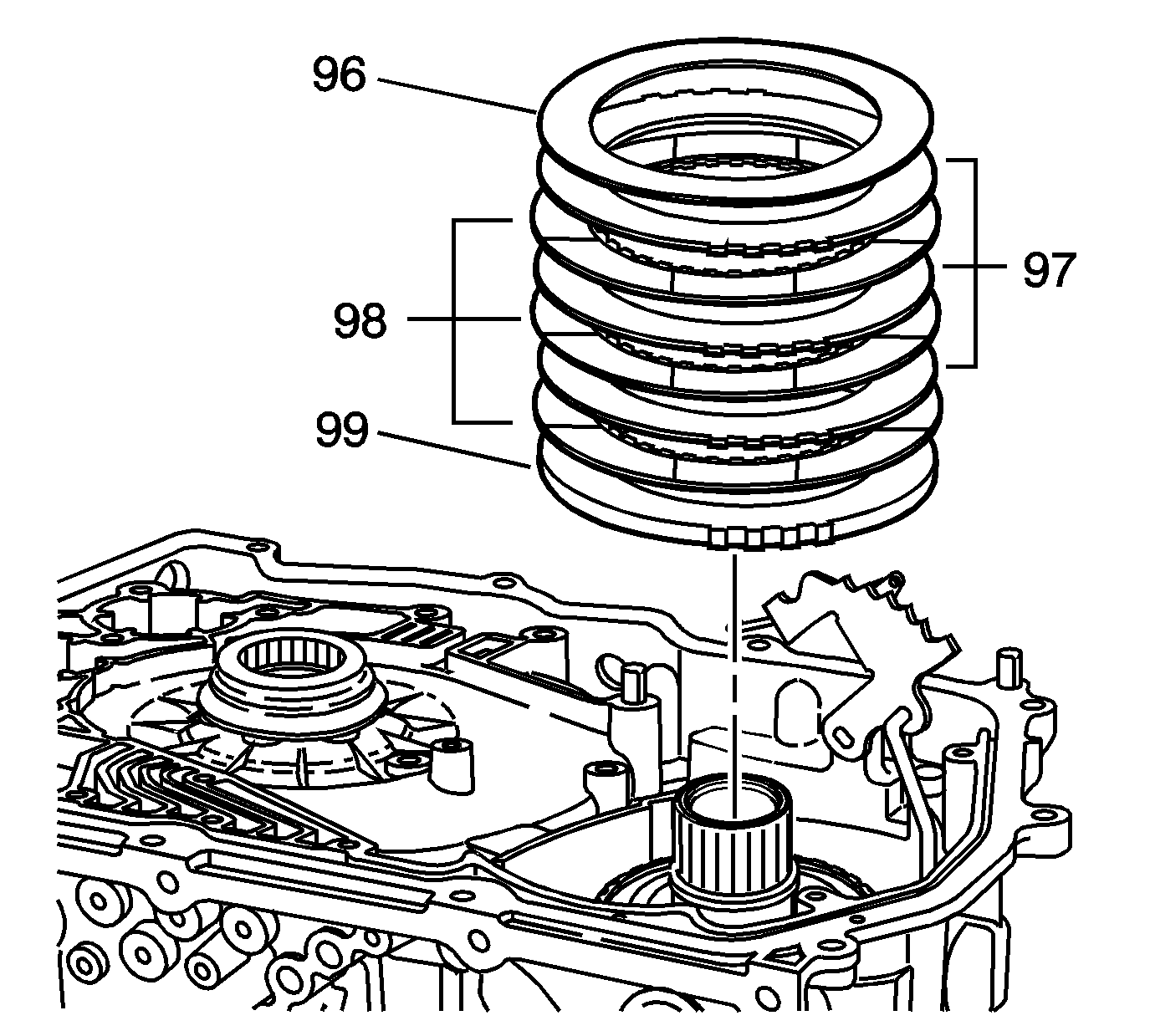

Remove the following plates:
•
2nd clutch wave plate (96)
•
2nd clutch steel plates (97)
•
2nd clutch fiber plates (98)
•
2nd clutch backing plate (99)
