Video System Schematics for HUMMER H2 2008
| Figure 1: |

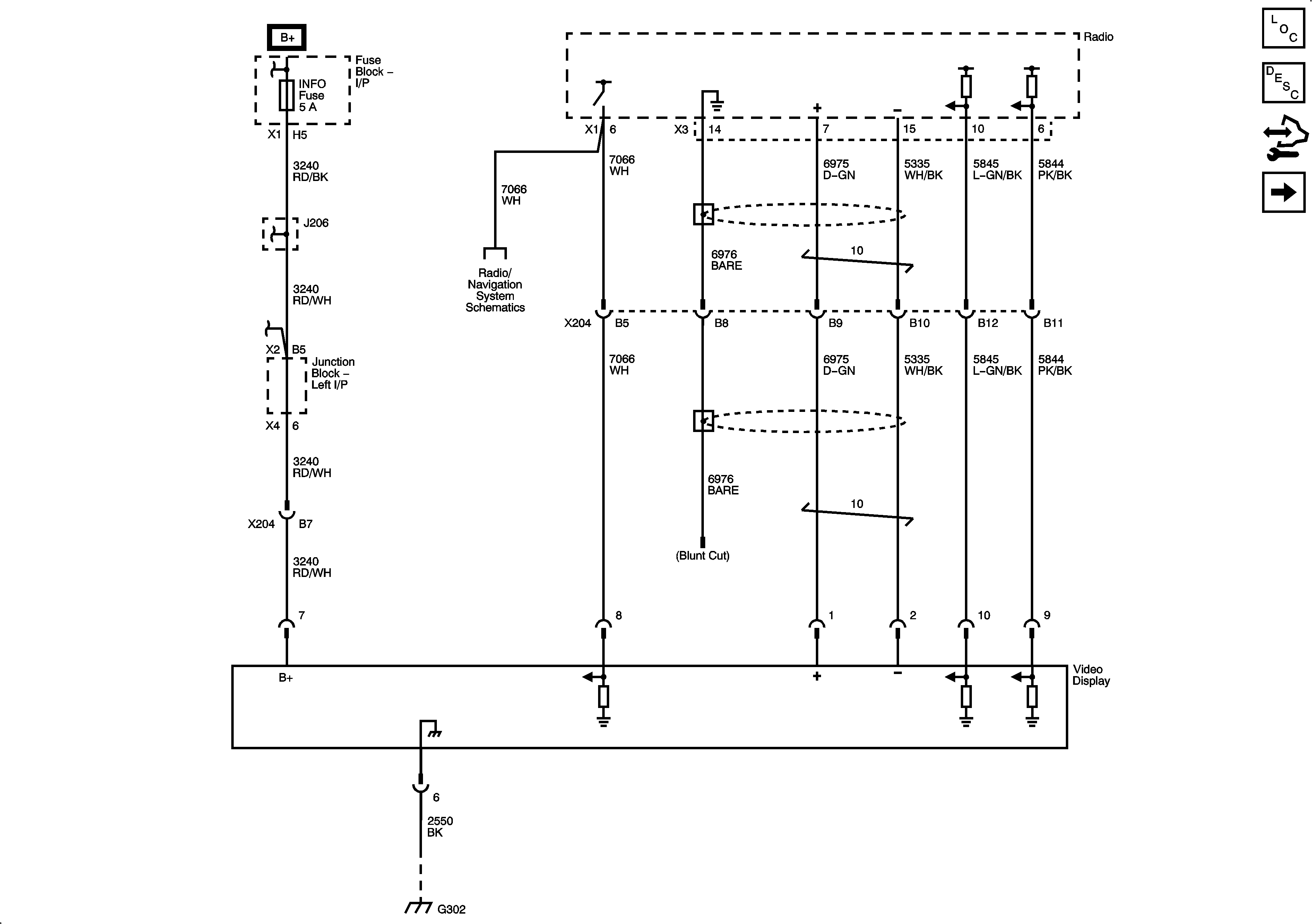

Display Power, Ground and Video Signals
|
| Figure 2: |

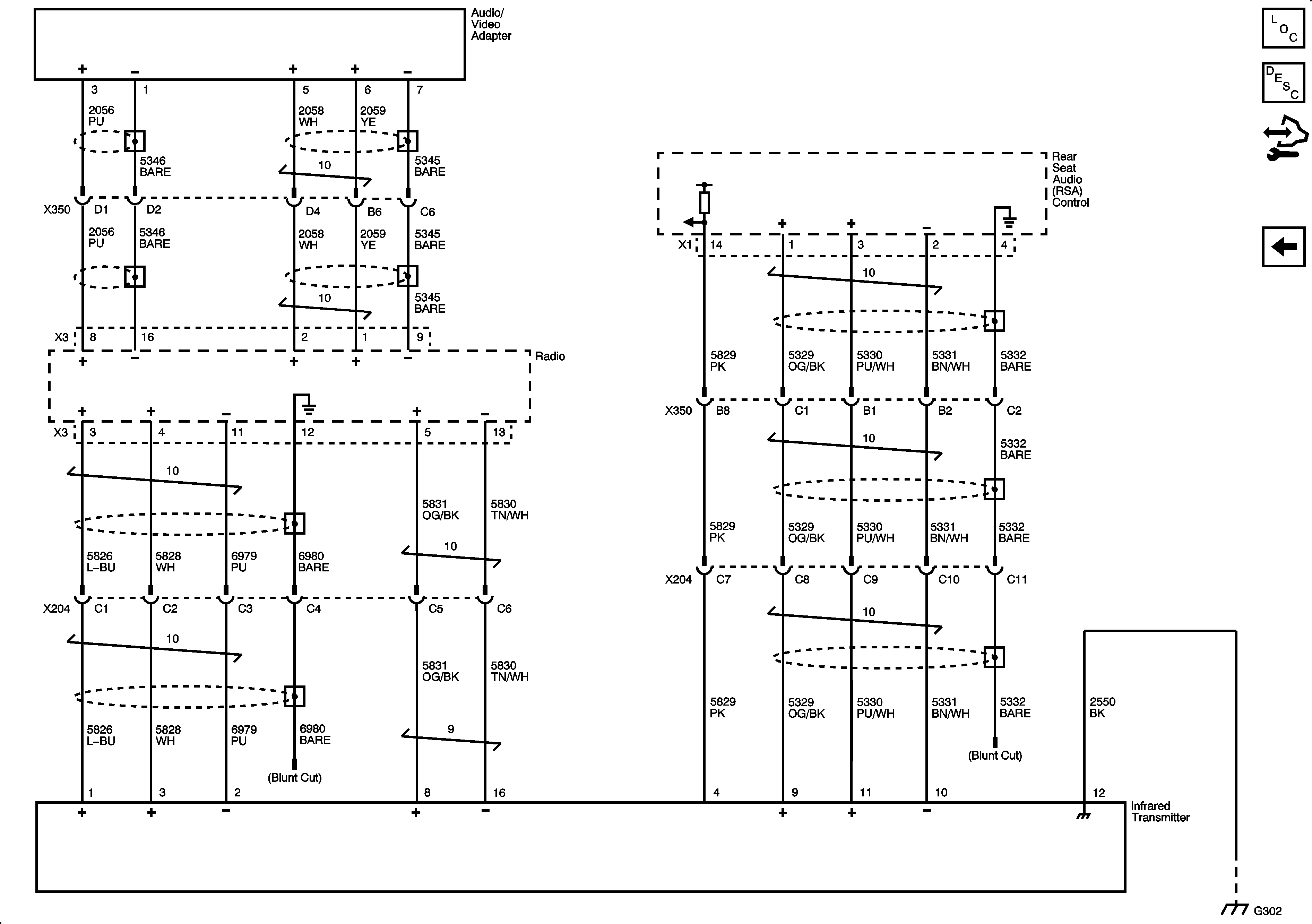

Audio Signals
|
| Figure 1: |
Display Power, Ground and Video Signals
|
| Figure 2: |
Audio Signals
|
