Horn Component Views for HUMMER H3 2007

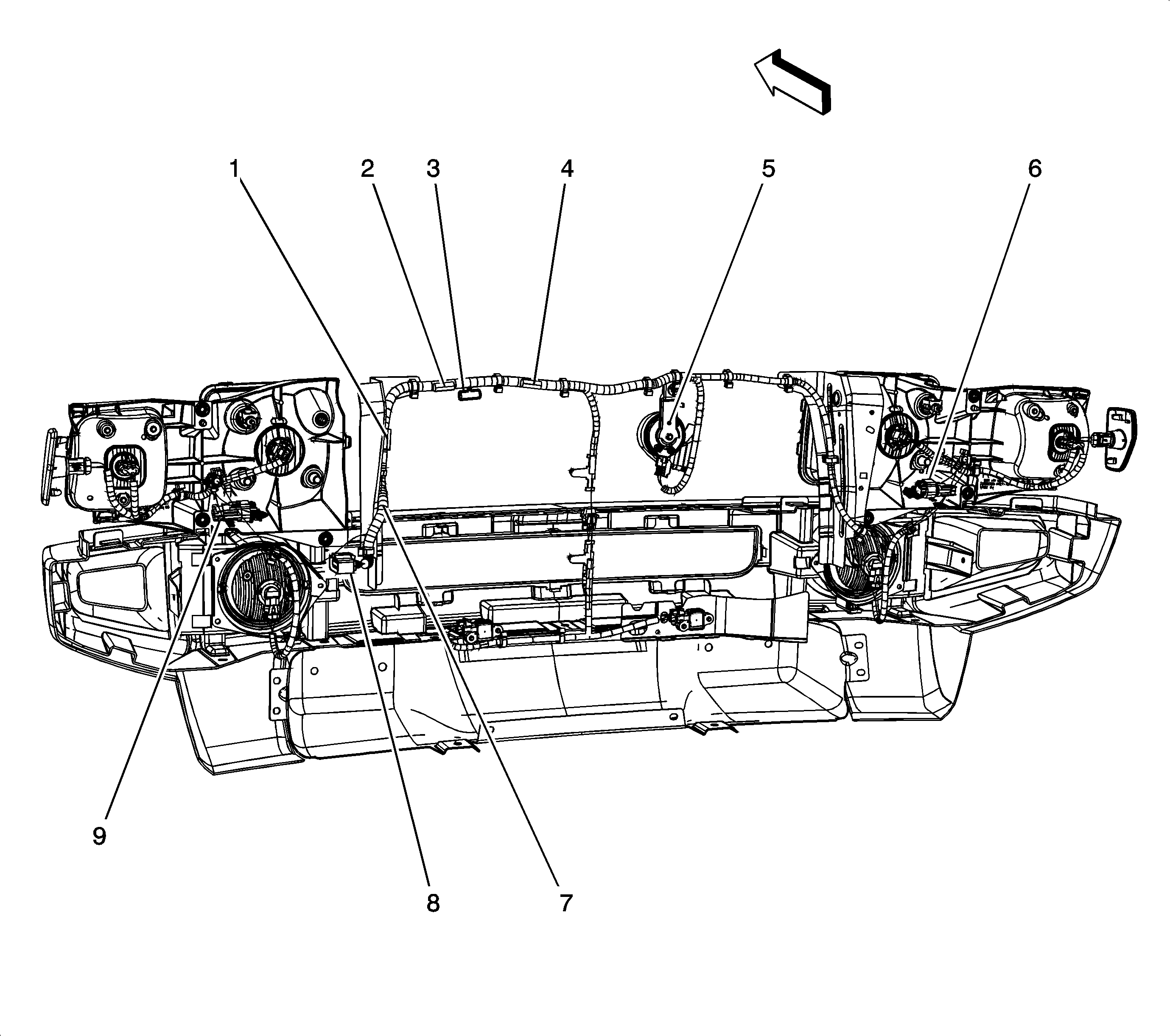

Forward Lamp Harness Components
Object Number: 1550709 Size: LF
(1)S185
(2)S109
(3)S112
(4)S120
(5)Horn
(6)C117 Forward Lamp Harness to Headlamp Jumper Harness
(7)S134
(8)C115 Forward Lamp Harness to Body Harness
(9)C116 Forward Lamp Harness to Headlamp Jumper Harness
