Turbocharger Coolant Feed Pipe Removal for Opel Insignia Wagon (Global Epsilon) 2009

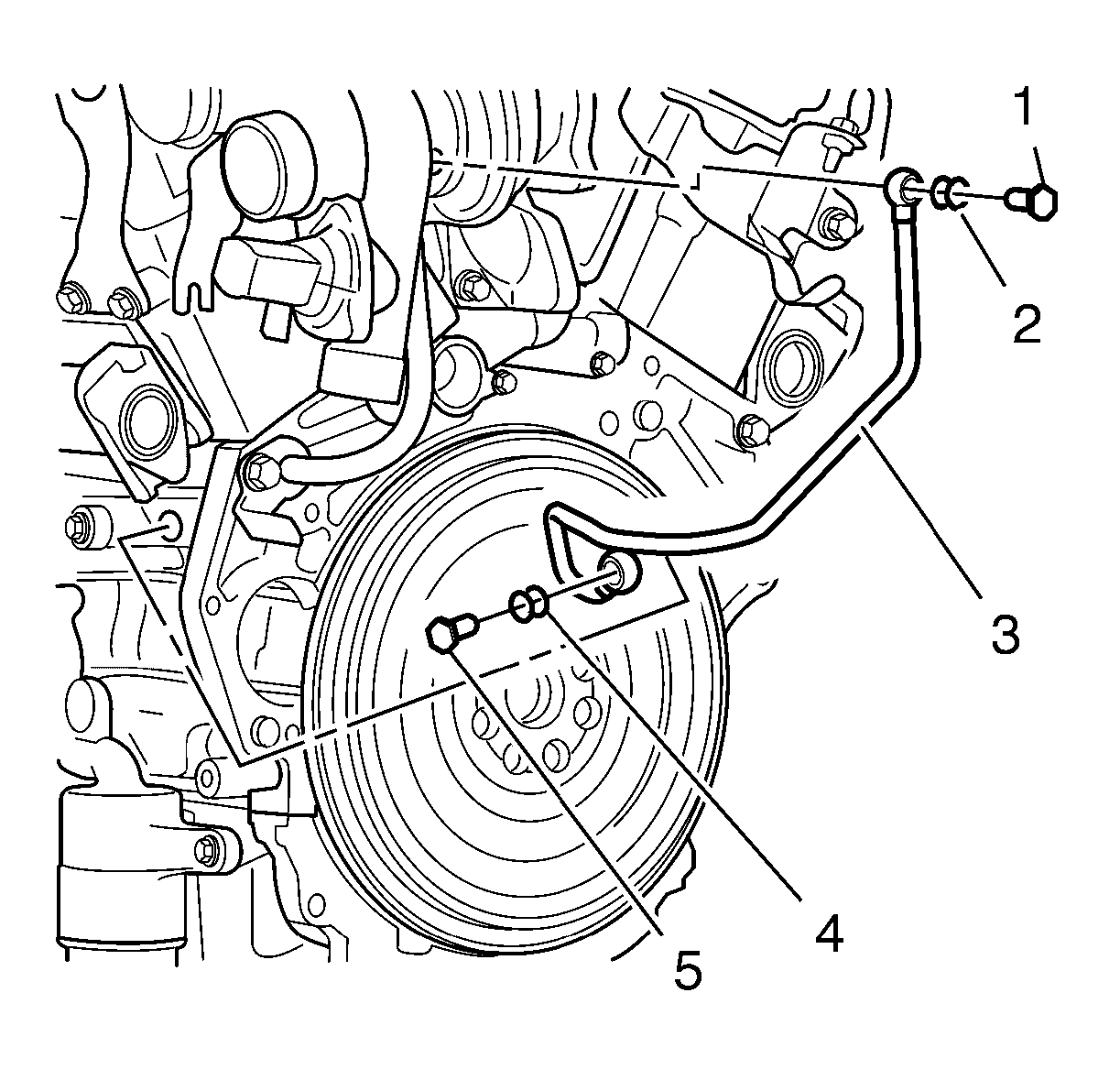

    Object Number: 2026565 Size: SH
  1. Remove the turbocharger coolant feed pipe fitting (1, 2).
  2. Remove the turbocharger coolant feed pipe fitting (4, 5).
  3. Remove the turbocharger coolant feed pipe (3).
