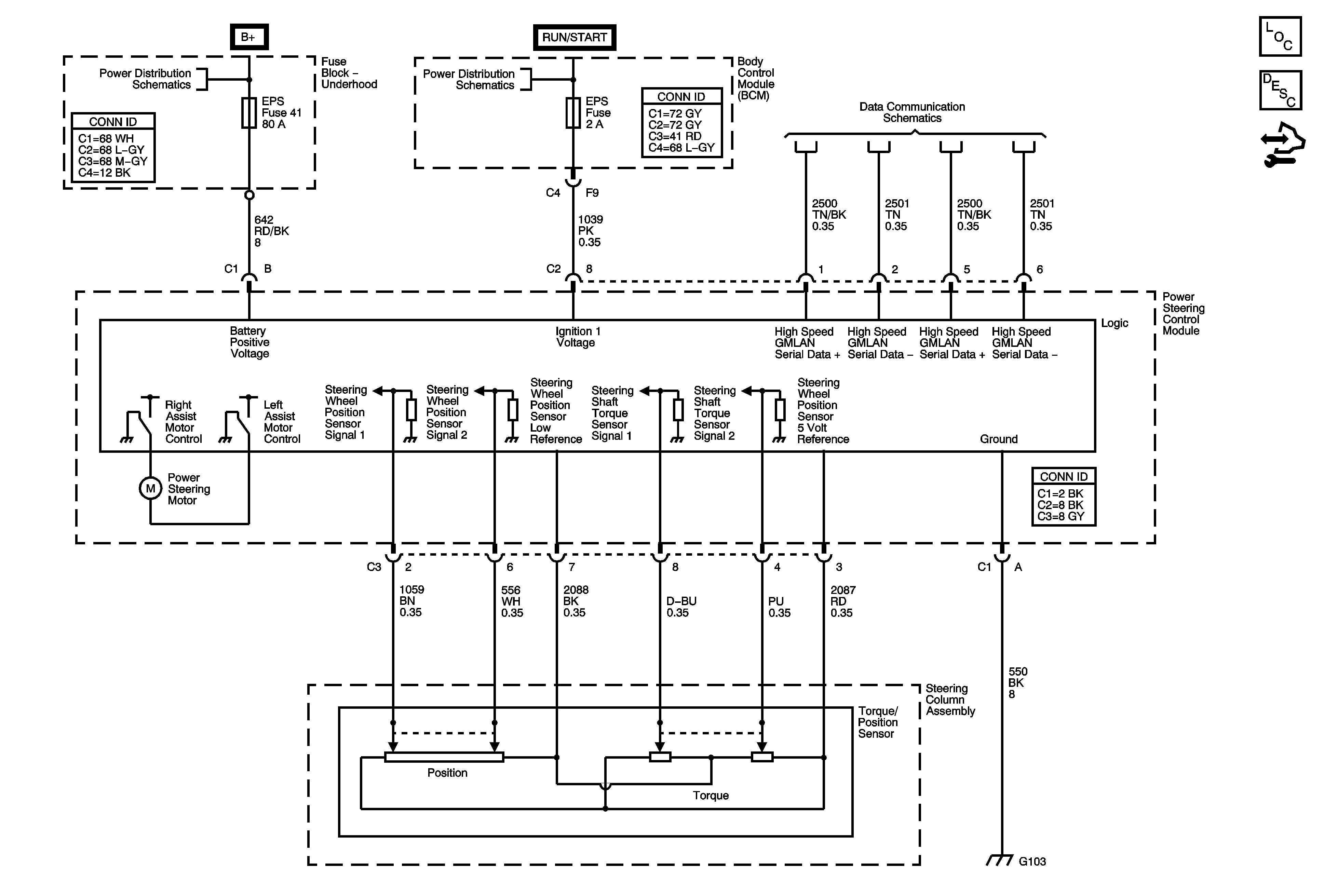

Power Steering Schematics for Pontiac G6 2007
Master Electrical Component List
Power Steering System Description and Operation (Electronic Power Steering)
Control Module References
Underhood Fuse Block DRL, LO/BEAM and HI/BEAM Relays, ABS, DRL, EPS, IBCM 1, IBCM 2, LT HI BEAM, LT LOW BEAM, PCM, PWR WDO CPE/CONV, RT HI BEAM, RT LOW BEAM and TCM Fuses
Underhood Fuse Block IBCM (RUN/CRANK), BCM AIRBAG (IGN), EPS and RUN/CRANK Fuses
Power, Ground, High Speed GMLAN Serial Data
G103, G104, and G105
