Starting and Charging Schematics for Pontiac G6 2008

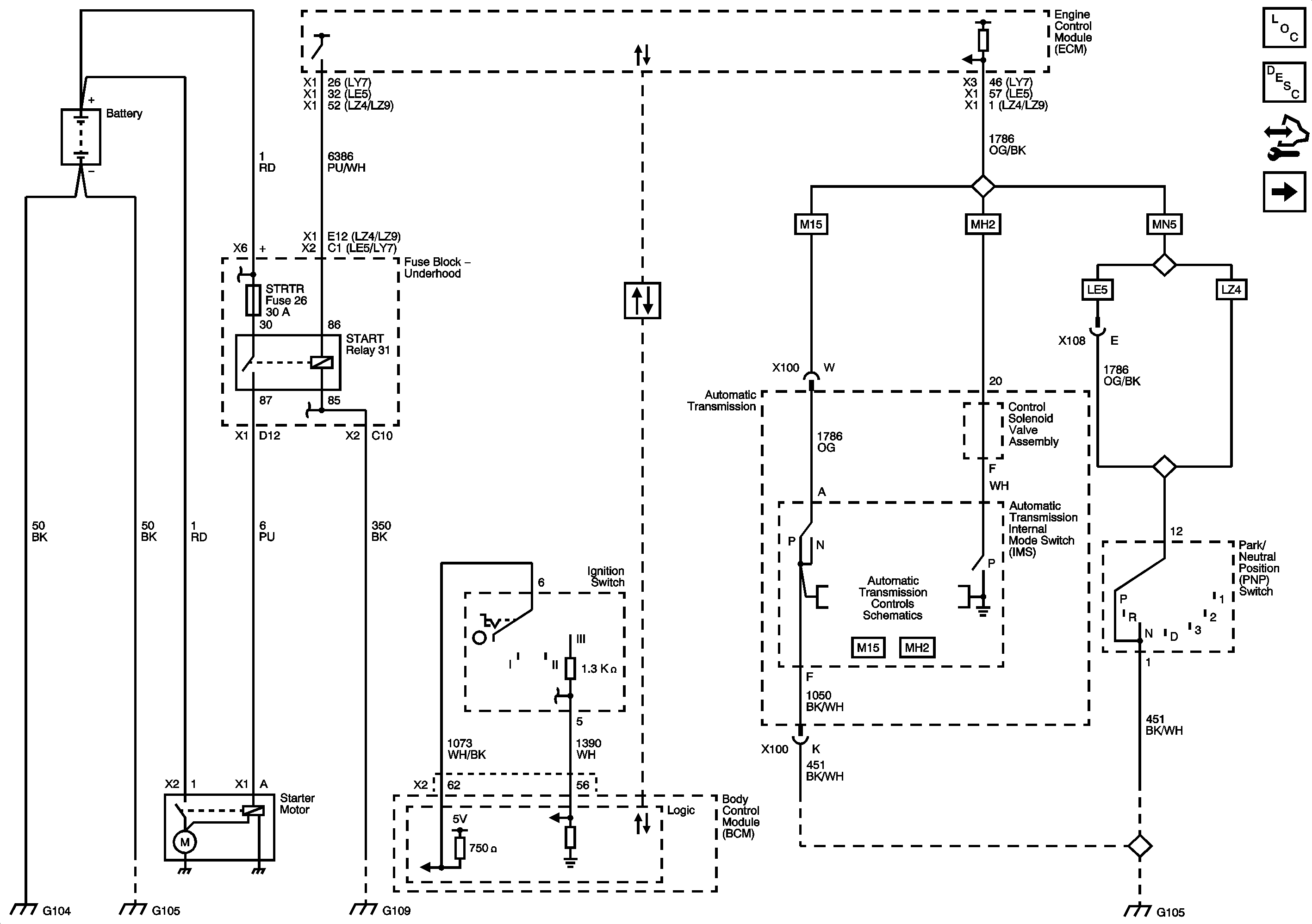

Figure 1:

Starting
Object Number: 1912645 Size: FS
Master Electrical Component List
Starting System Description and Operation
Control Module References
Charging System

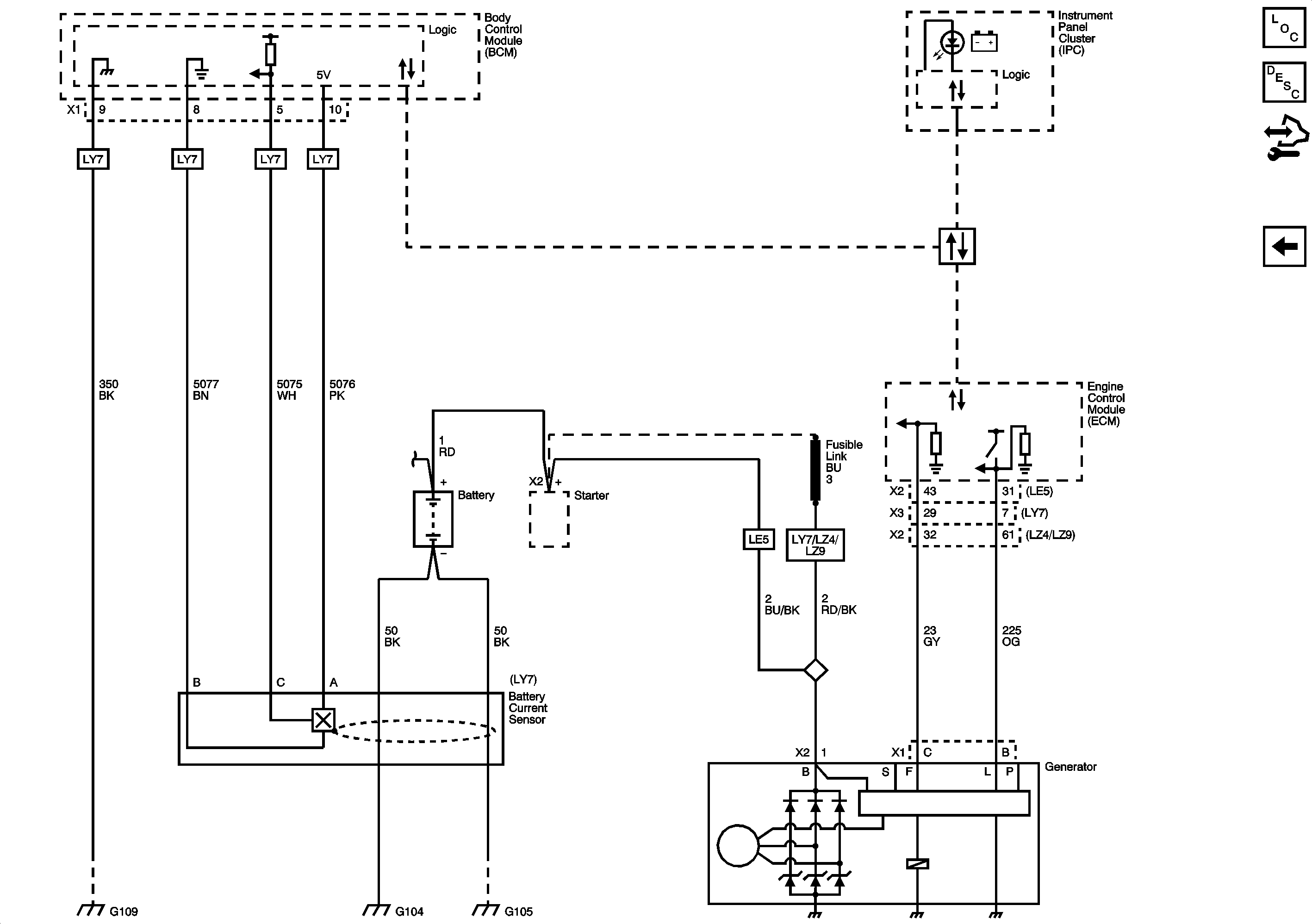

Figure 2:

Charging
Object Number: 1912651 Size: FS
