Starting and Charging Schematics for Pontiac G8 2009

Figure 1:

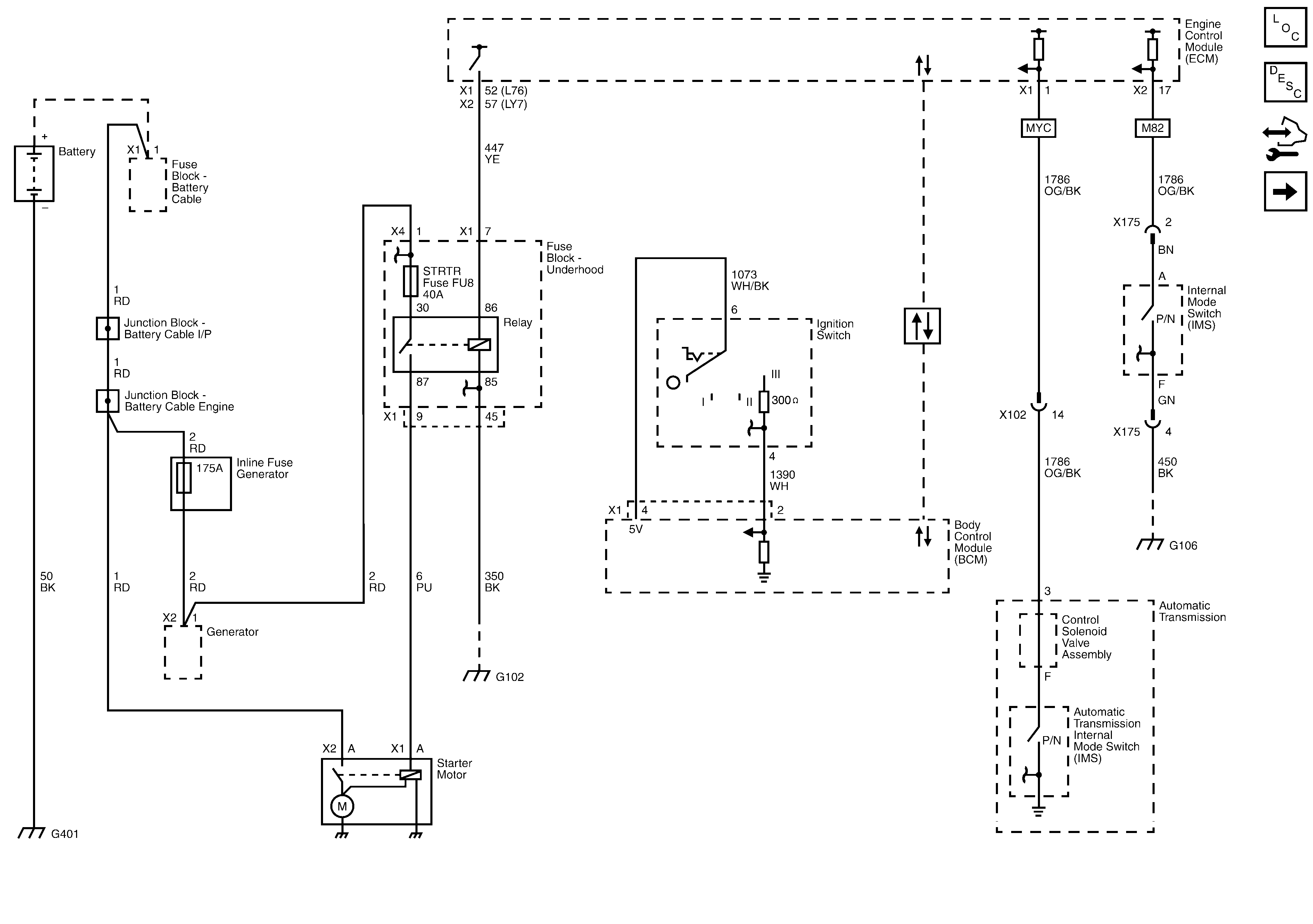

Starting
Object Number: 2034232 Size: FS
Figure 2:

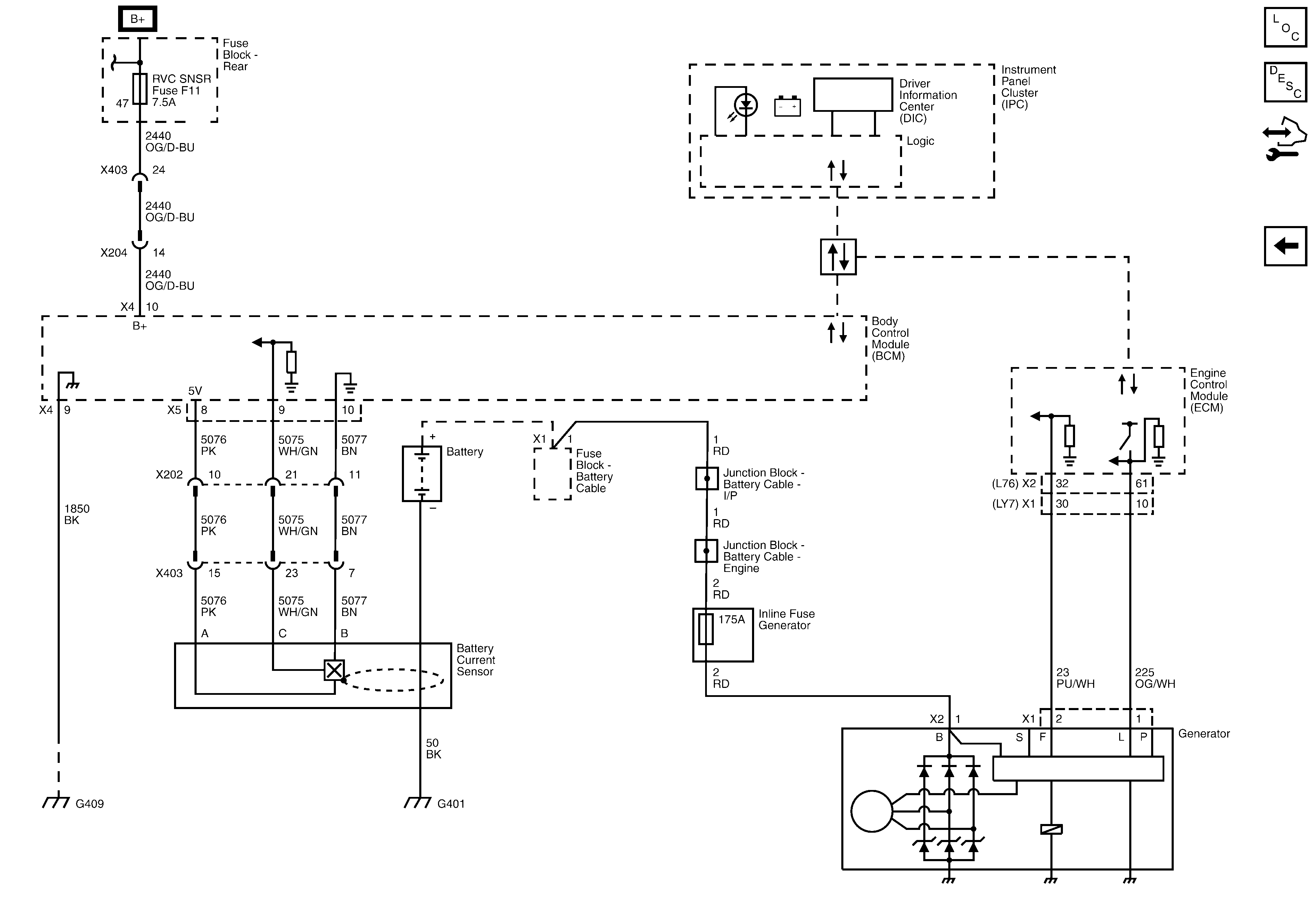

Charging
Object Number: 2034231 Size: FS
