Front Bumper Fascia Energy Absorber Replacement for Pontiac Grand Prix 2006

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

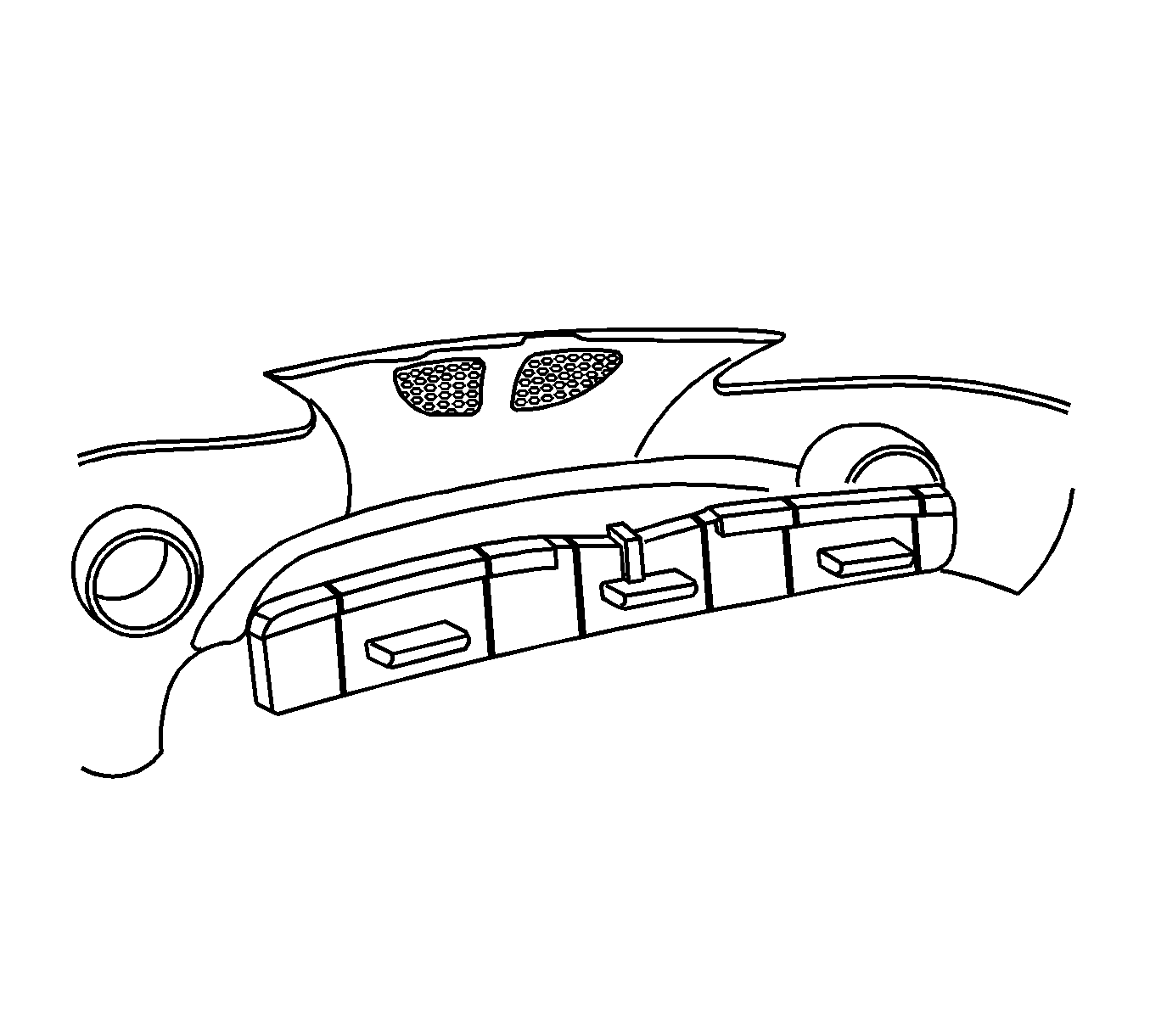

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

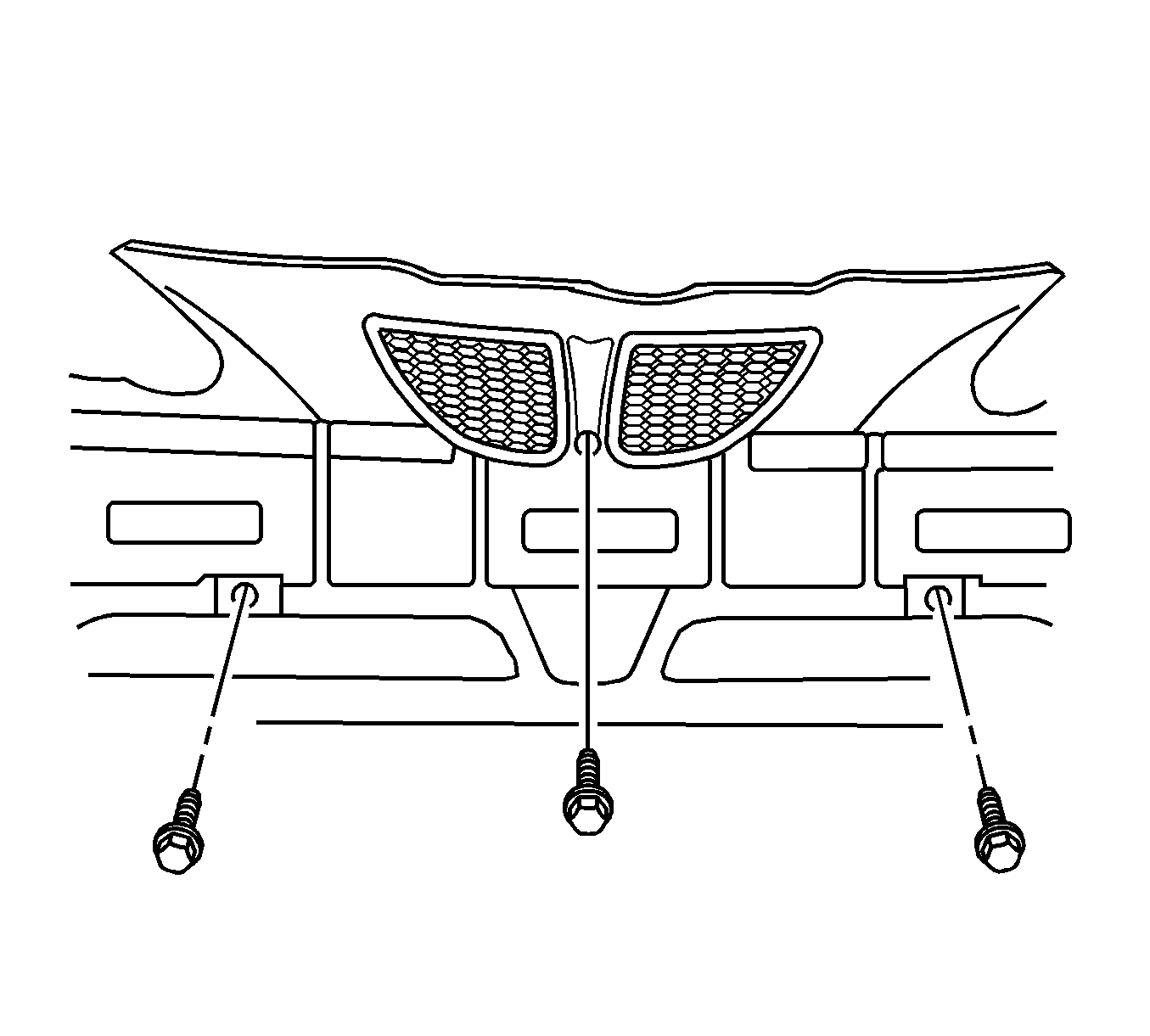

2. Remove the plastic screws from the front energy absorber.



3. Remove the front bumper energy absorber from the front bumper fascia.

1. Position the front bumper energy absorber to the front bumper fascia.

Notice: Refer to Fastener Notice in the Preface section.

2. Install the front bumper energy absorber screws.

Tighten
Tighten the screws to 2 N·m (18 lb in).

3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
