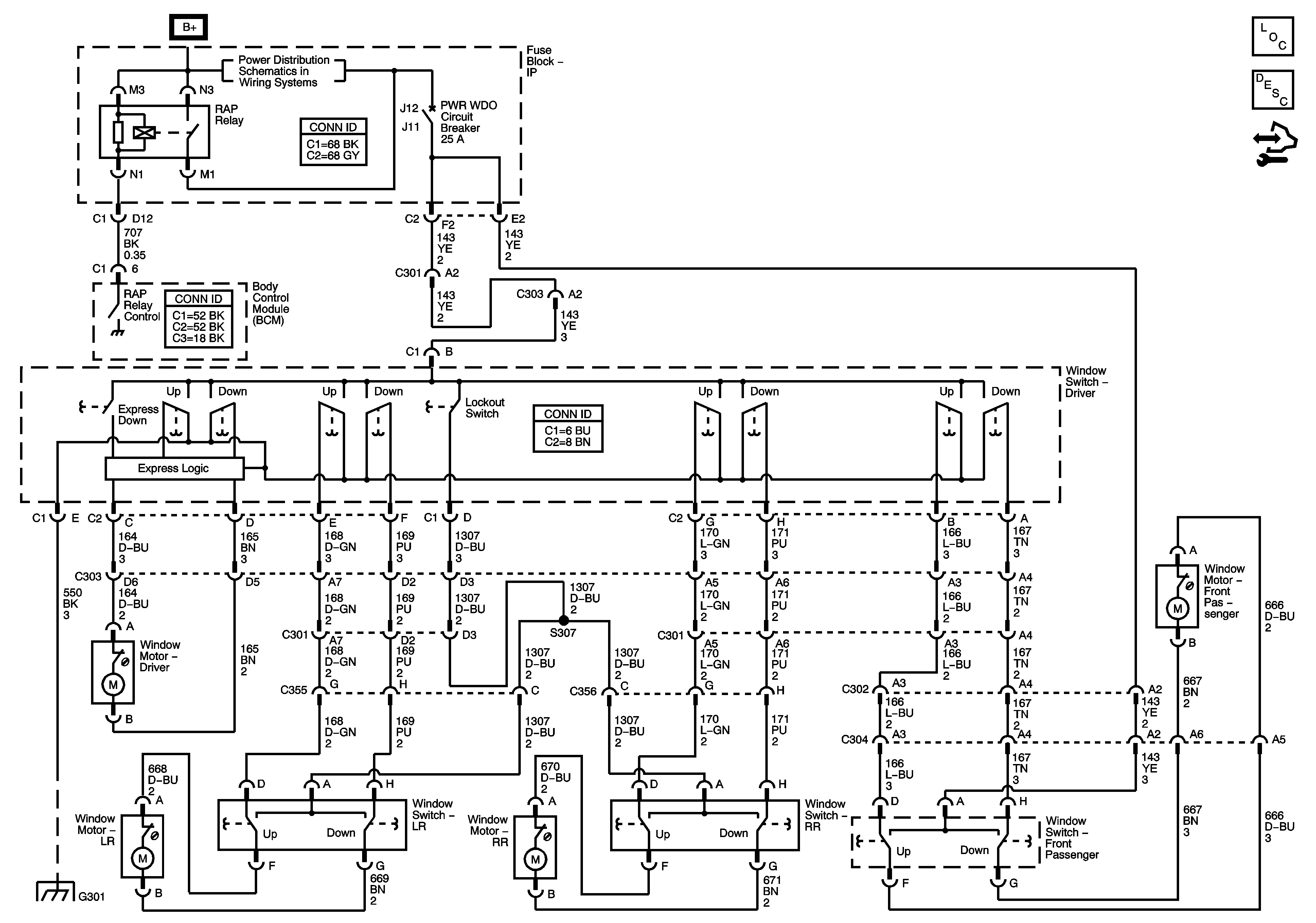

Power Window Schematics for Pontiac Grand Prix 2006

Object Number: 1647686 Size: FS

Master Electrical Component List
Power Windows Description and Operation
Control Module References
BATT MAIN 2, HDT SEAT, PWR MIRS, TURN/HAZ, DR LK/TRUN, SUNROOF Fuses, PWR SEAT, PWR WDO Circuit Breakers, and RAP Relay
G301
