Engine Cooling Schematics for Pontiac Grand Prix 2008

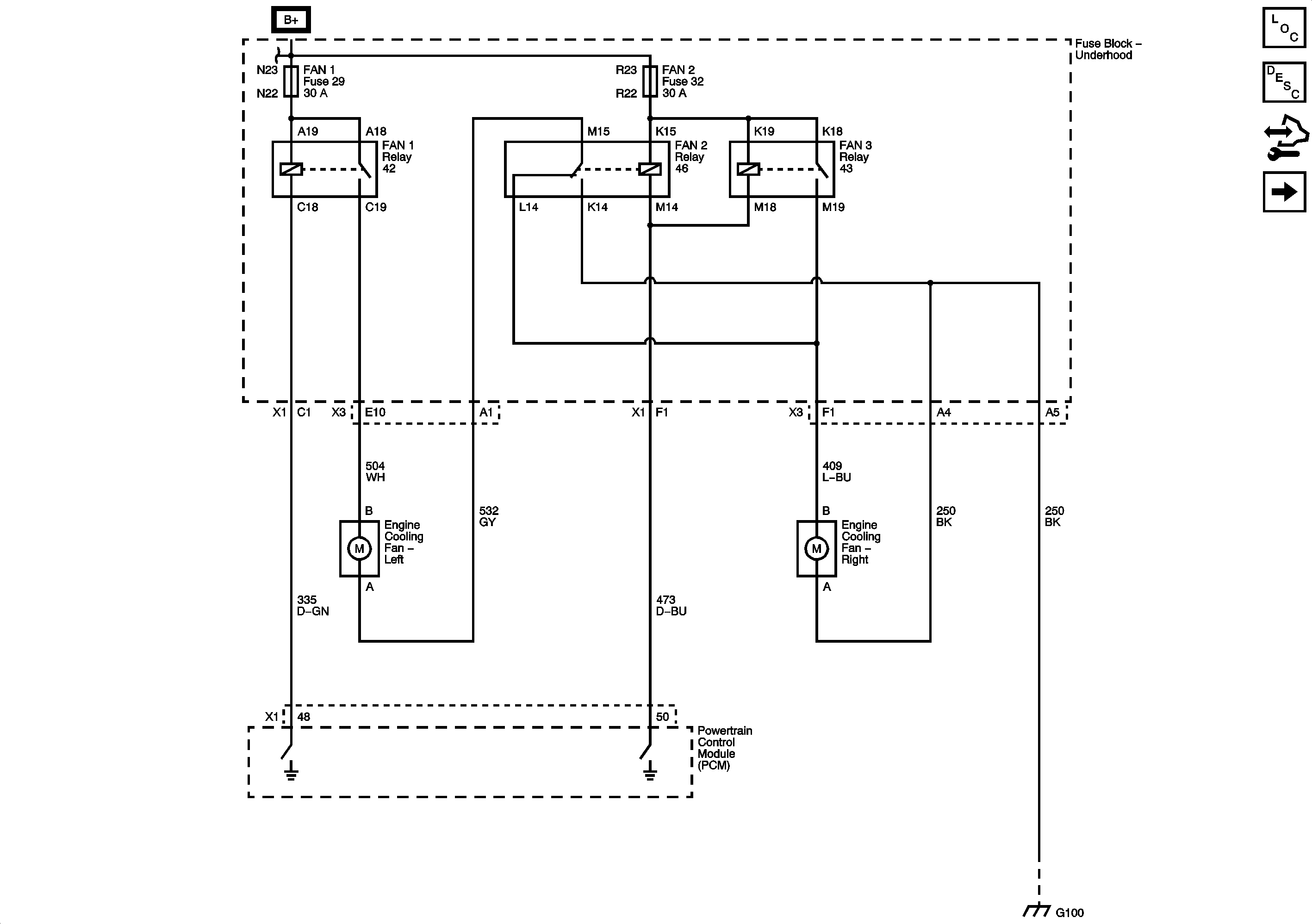

Figure 1:

L26
Object Number: 1889020 Size: FS
Master Electrical Component List
Cooling Fan Description and Operation
Control Module References
LS4

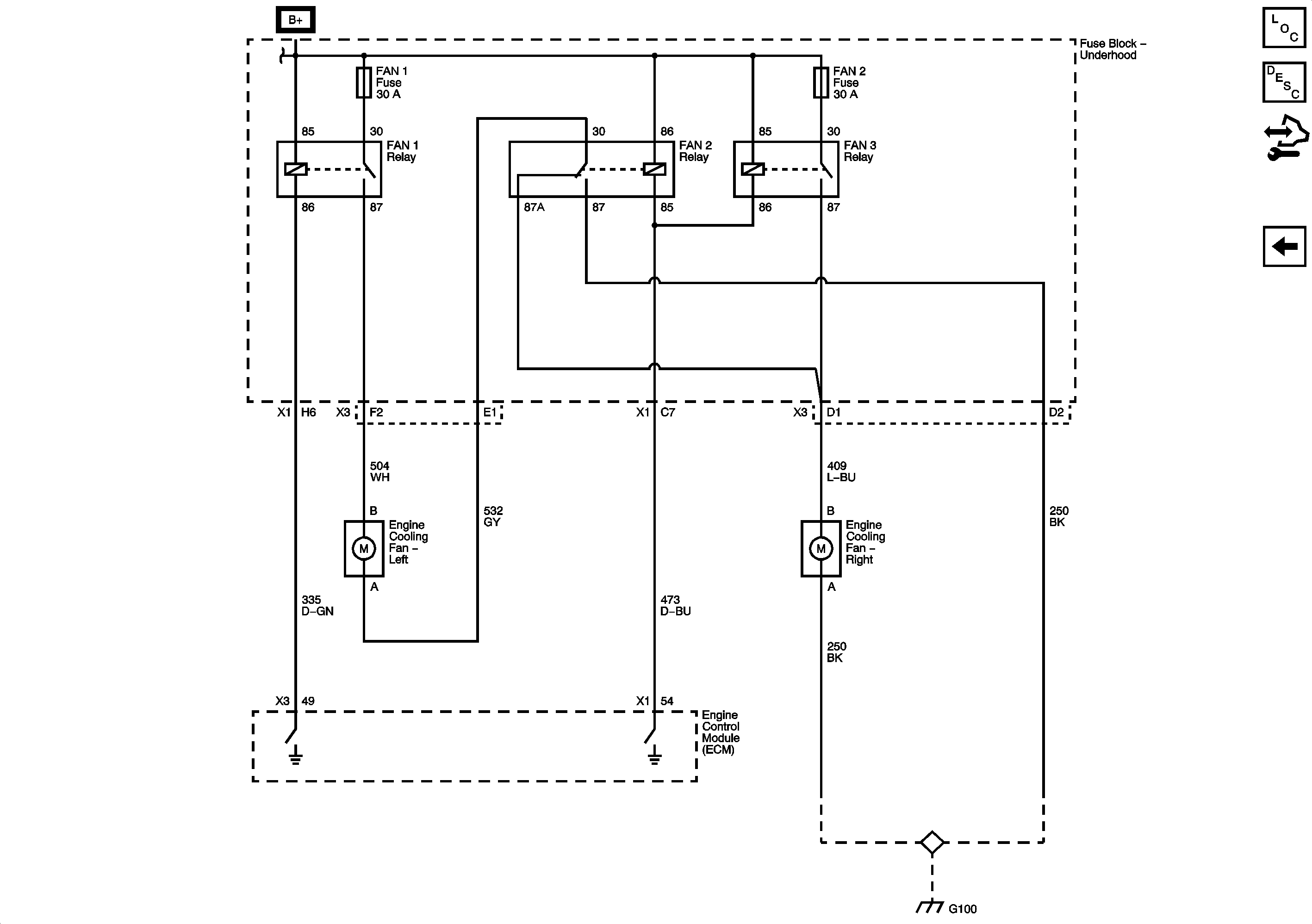

Figure 2:

LS4
Object Number: 1889022 Size: FS
Master Electrical Component List
Cooling Fan Description and Operation
Control Module References
L26
