Floor Air Outlet Duct Replacement - Left Side for Pontiac Vibe - AWD 2009

Removal Procedure

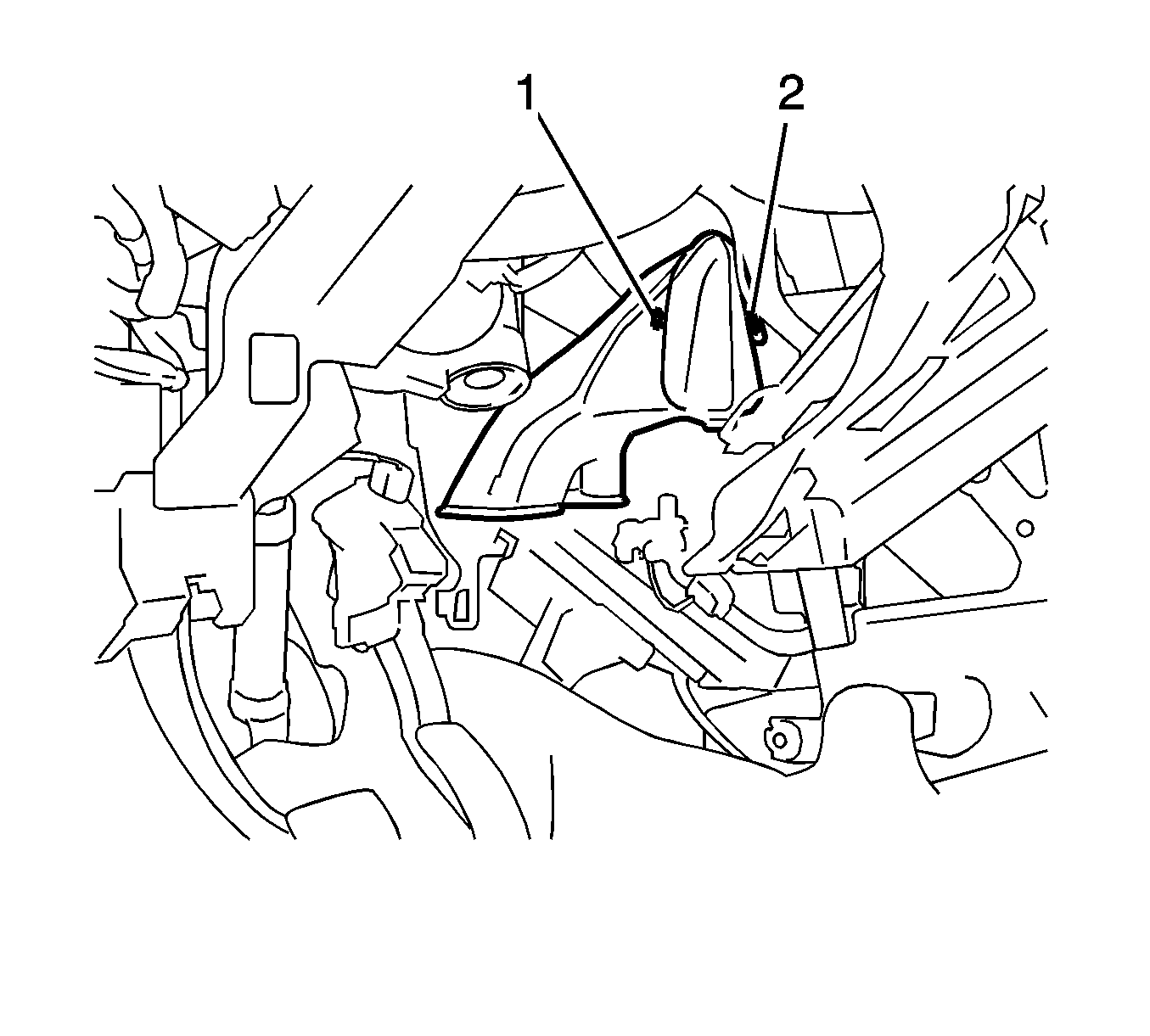

    Object Number: 2044595 Size: SH
  1. Disengage the two clips (1) from the outlet duct (2).
  2. Remove the outlet duct (2) from the HVAC module.

Installation Procedure

    Object Number: 2044595 Size: SH
  1. Install the outlet duct (2) to the HVAC module.
  2. Engage the two clips (1) to the outlet duct (2).
