Driver Information System Schematics for Pontiac Wave 2009

Figure 1:

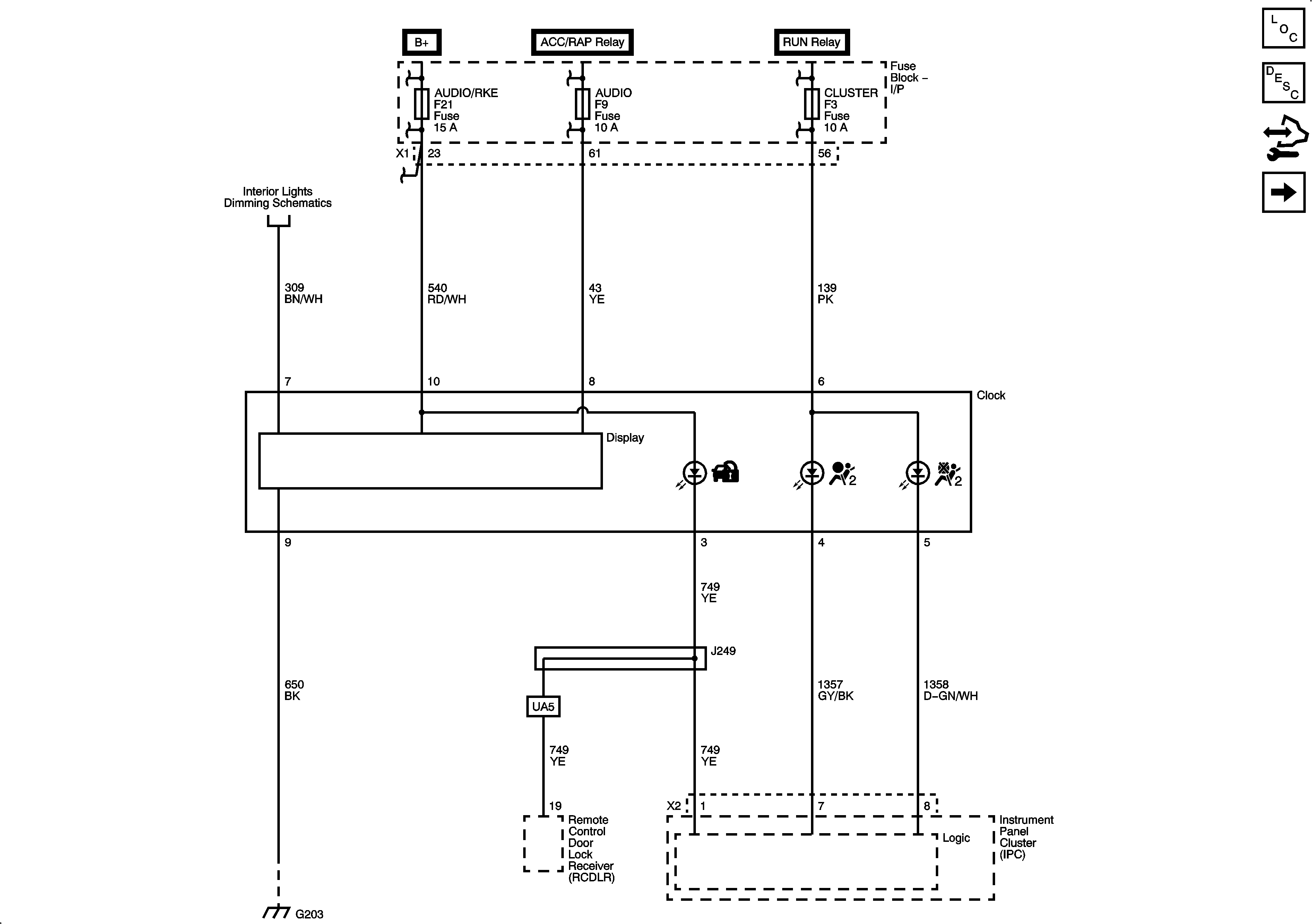

Driver Information Center (with WHB)
Object Number: 2195164 Size: FS
Master Electrical Component List
Control Module References
Driver Information Center (without WHB)
Figure 2:

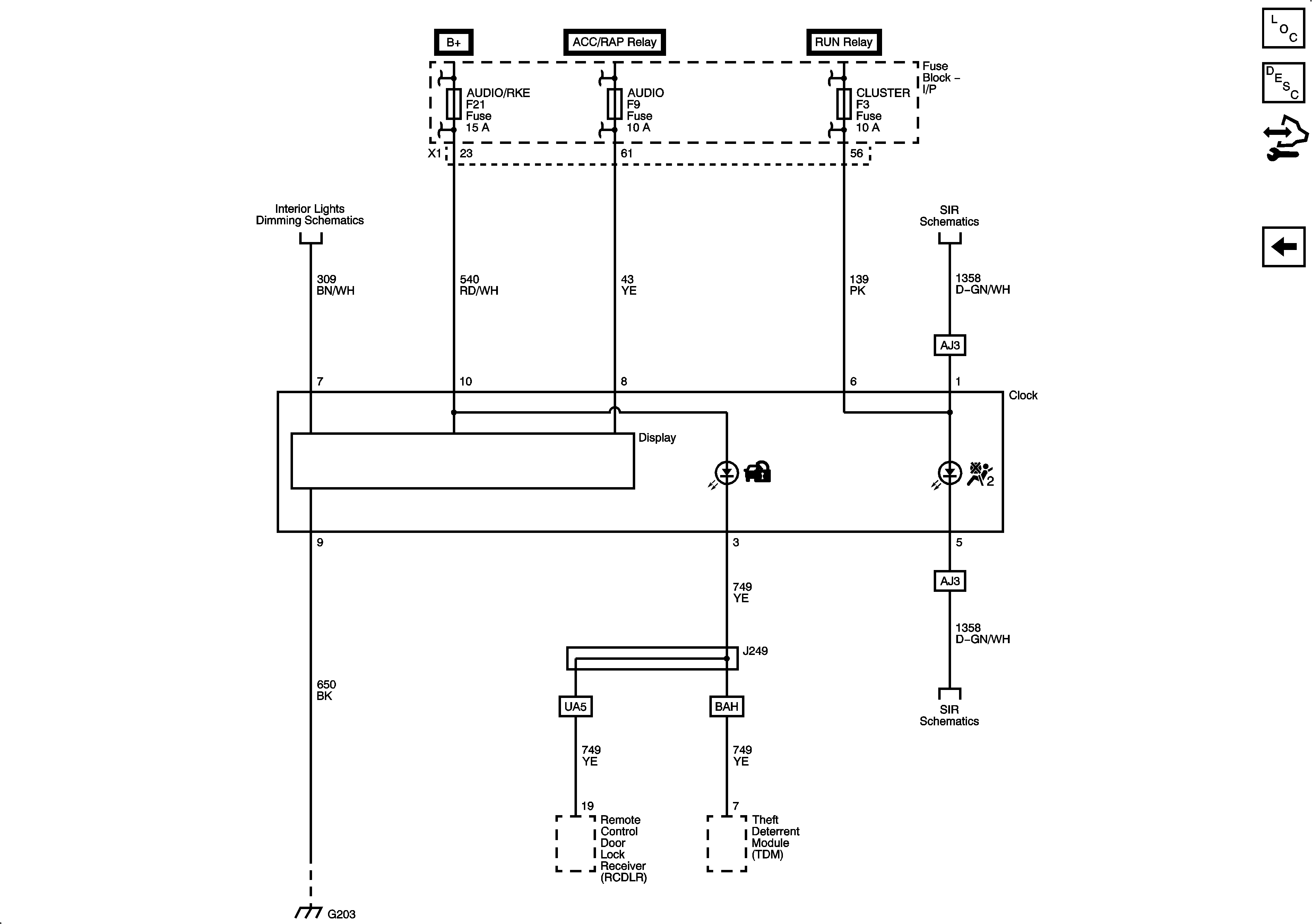

Driver Information Center (without WHB)
Object Number: 2195166 Size: FS
Master Electrical Component List
Control Module References
Driver Information Center (with WHB)
