Planetary Carrier Removal for Saturn Astra 2008

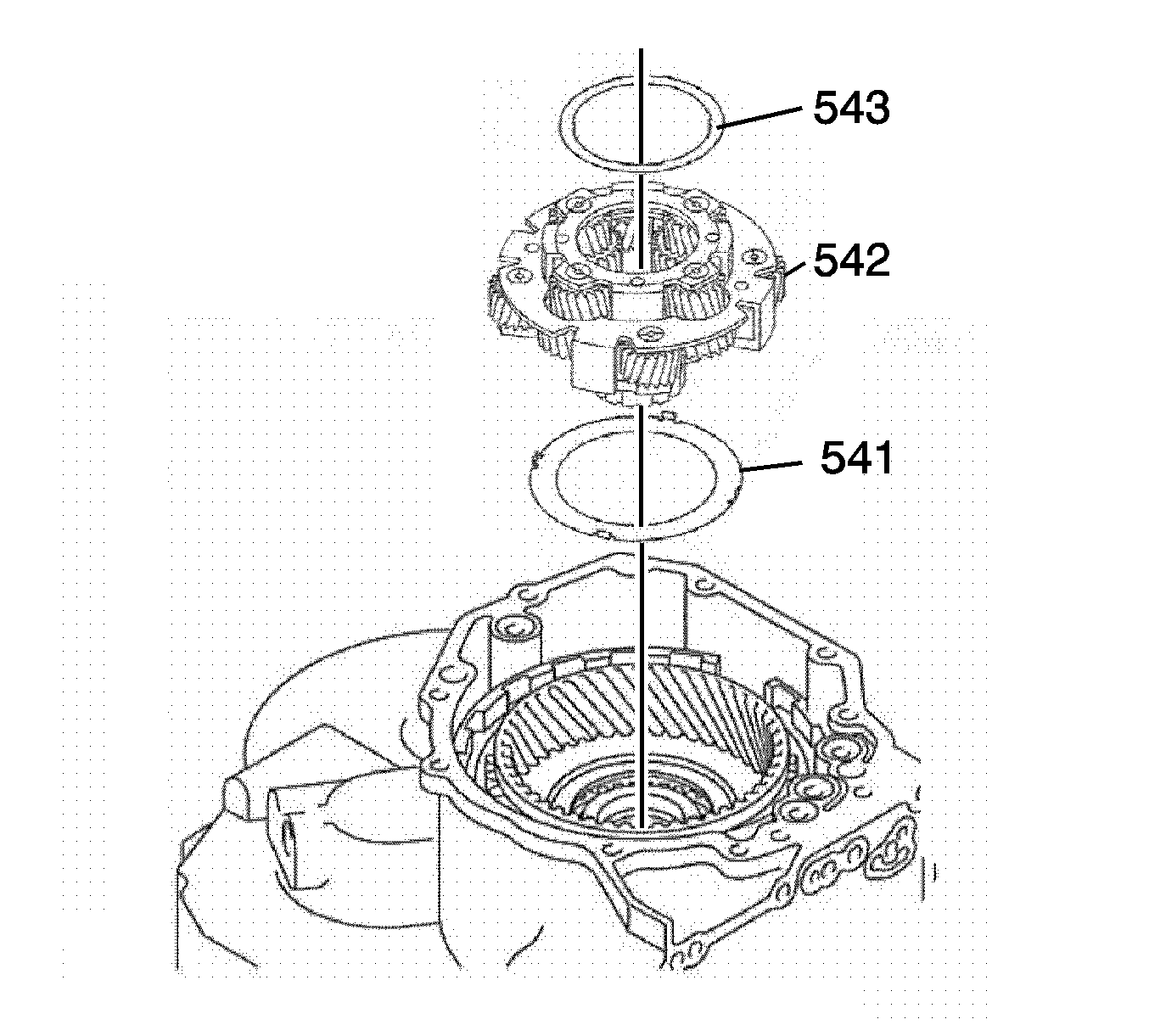

    Object Number: 2002579 Size: SH
  1. Remove the carrier assembly (542) with the thrust bearing races.
  2. Remove the carrier thrust washer (541) and the carrier thrust bearing (543) from the carrier assembly (542).
