Front Differential Bearing Race and Carrier Thrust Washer Installation for Saturn Astra 2008

Special Tools

    • DT 46415 Driver
    • EN 46342 Driver Handle

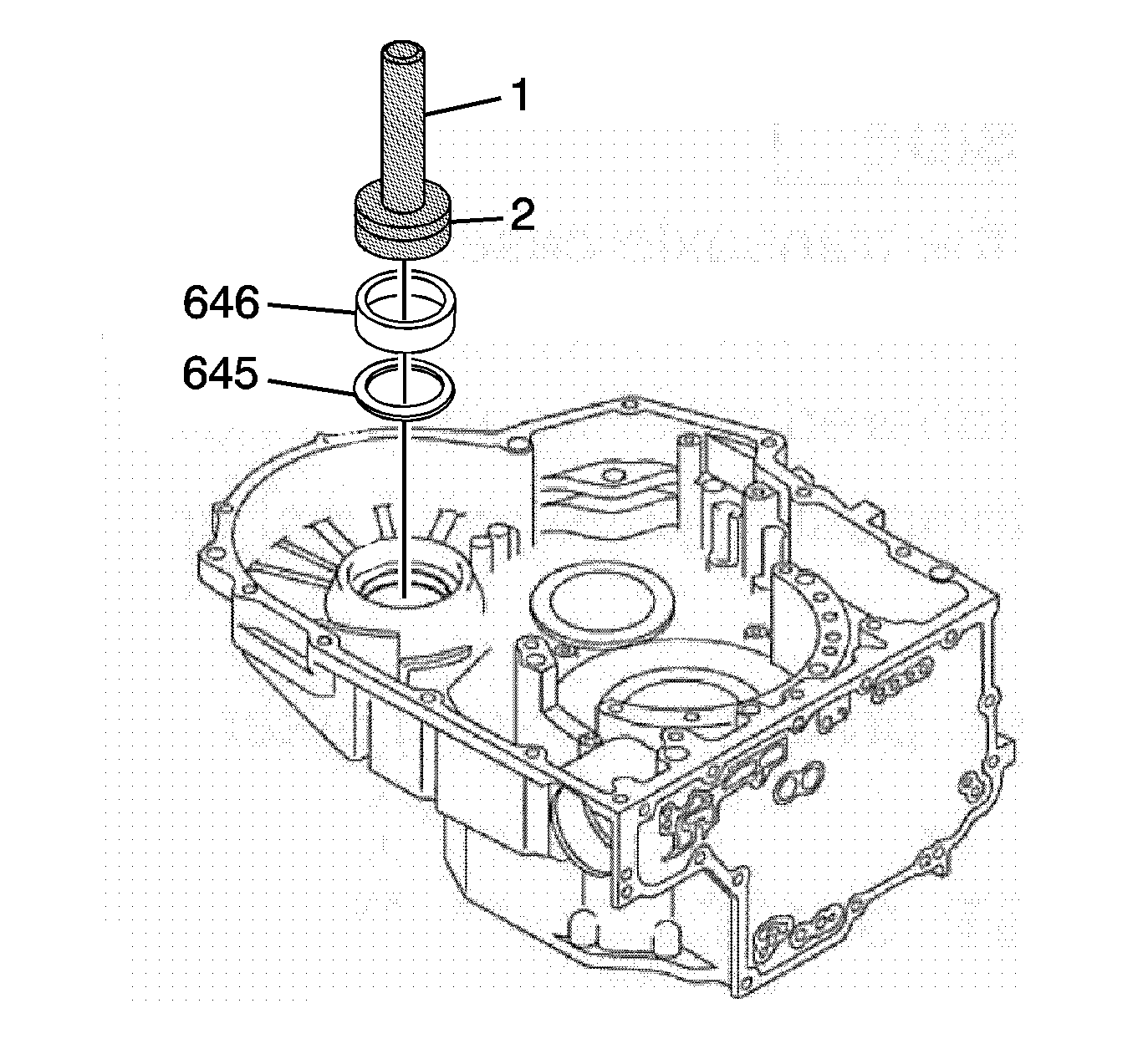

    Object Number: 2008765 Size: SH
  1. Install the front differential carrier bearing shim (645).
  2. Using DT 46415  (2) and EN 46342  (1) install the front differential bearing race (646).
