Transmission Fluid Drain Plug Installation for Saturn Astra 2008

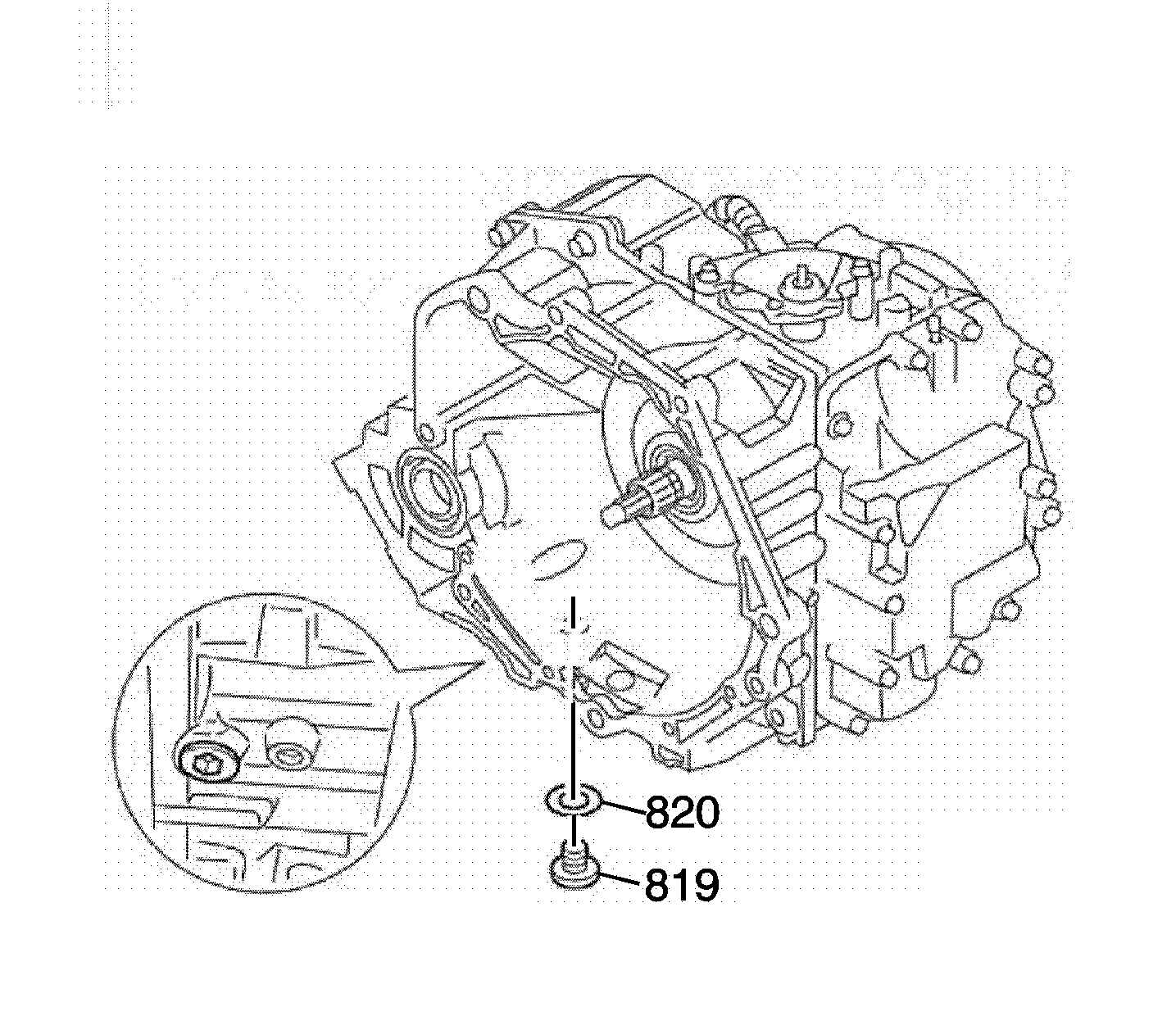

    Object Number: 2002501 Size: SH
  1. Install a NEW transmission fluid drain plug washer (820) to the fluid drain plug (819).
  2. Install the fluid drain plug (819).

    3. Tighten
    Tighten the plug to 39 N·m (29 lb ft).
